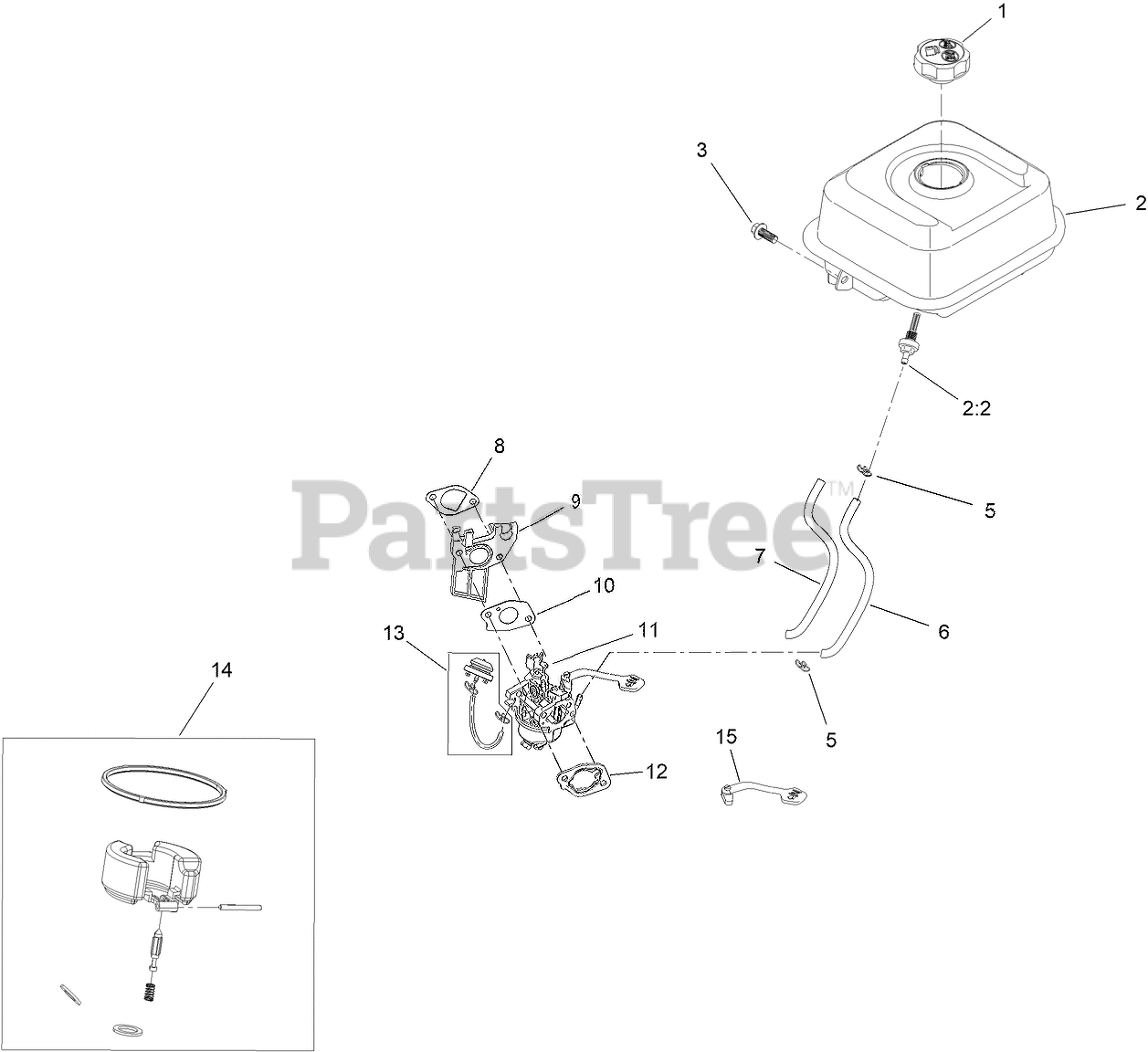

38756 (721 QZE) - Toro 21" Power Clear Snow Thrower (SN: 416000000 - 999999999) Fuel System and Carburetor Assembly Parts Diagram

21" Power Clear Snow Thrower

Fuel System and Carburetor Assembly Parts Diagram

  • Title

1

Toro 133-9823

CAP-FUEL

$19.99

$

In Stock, Qty 5

0

2

Toro 127-9497

FUEL TANK AND FILTER ASM

$100.99

$

Usually ships in 3-6 days

0

2:2

Toro 127-9065

FILTER-FUEL

$5.99

$

Usually ships in 3-6 days

0

3

Toro 121-0294

SCREW-HHF

$1.99

$

In Stock, Qty 8

0

5

Toro 147-7077

CLIP-HOSE

$

$

Currently unavailable

6

Toro 147-7085

HOSE-FUEL

$

$

Currently unavailable

7

Toro 147-7088

SLEEVE-ABRASION

$

$

Currently unavailable

8

Toro 121-0076

GASKET-CARBURETOR

$1.99

$

In Stock, only 3 left!

0

9

Toro 121-0077

INSULATOR-CARBURETOR

$5.99

$

In Stock, only 3 left!

0

10

Toro 121-0078

GASKET-CARBURETOR

$1.99

$

In Stock, Qty 5

0

11

Toro 127-9111

CARBURETOR ASM

$90.99

$

In Stock, only 4 left!

0

12

Toro 121-0080

GASKET-CARBURETOR

$5.99

$

In Stock, only 2 left!

0

13

Toro 127-9079

PRIMER KIT

$29.99

$

In Stock, Qty 6

0

14

Toro 127-9394

INTERNAL CARB SERVICE KIT

$21.99

$

In Stock, only 2 left!

0

15

Toro 147-7095

LEVER-CHOKE

$

$

Currently unavailable

99

Toro 127-9301

HIGH ALTITUDE KIT - G210

Note: Not illustrated

$13.99

$

In Stock, only 1 left!

0
