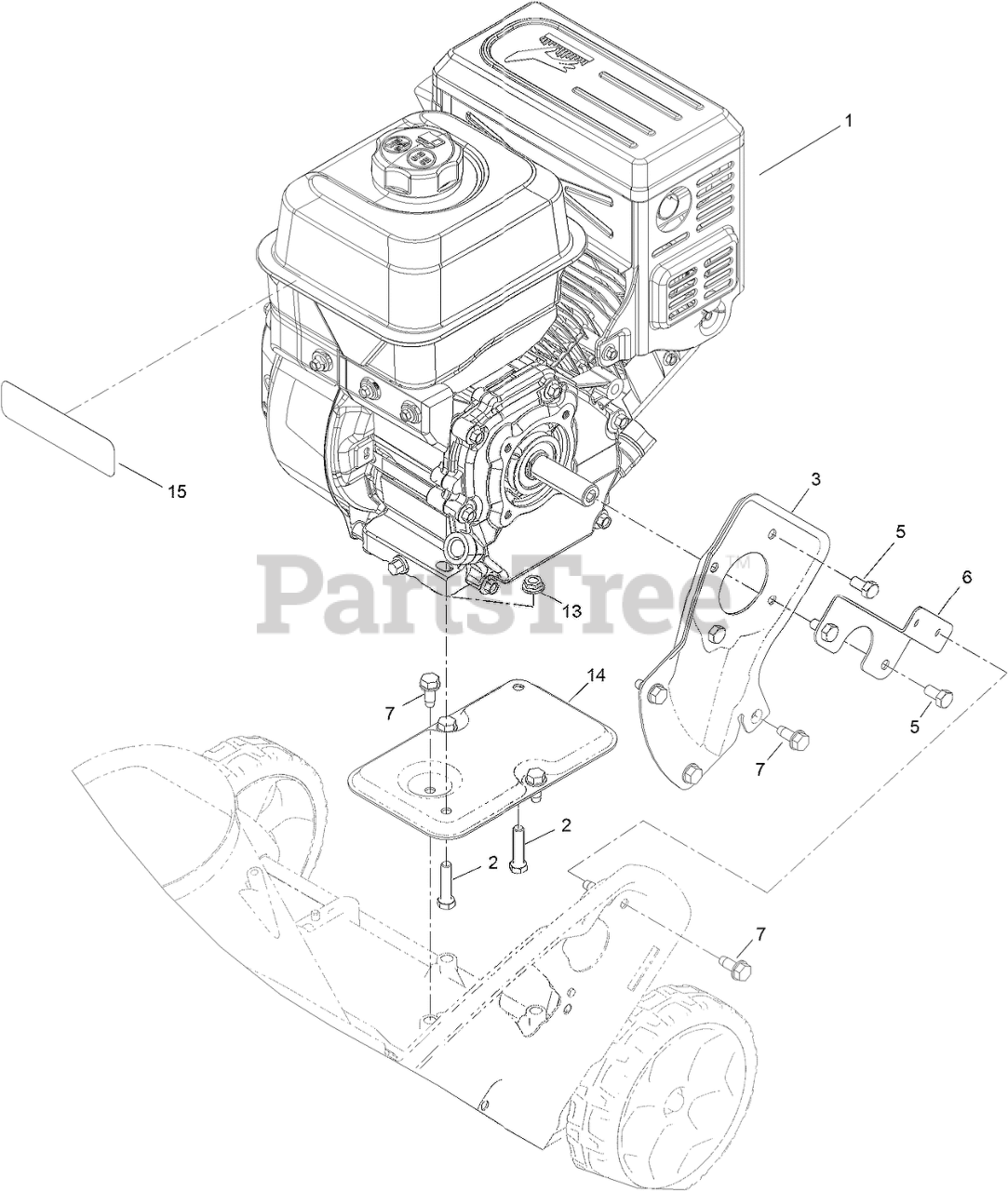

38755 (821 R-C) - Toro 21" Power Clear Commercial Snow Thrower (SN: 414400000 - 999999999) Engine Assembly Parts Diagram

21" Power Clear Commercial Snow Thrower

Engine Assembly Parts Diagram

  • Title
1

Toro 144-1039

ENGINE - G250FS-4

$

$

Currently unavailable

2

Toro 322-17

SCREW-HH

$3.99

$

In Stock, only 2 left!

0

3

Toro 108-4892-03

PLATE-ENGINE, PTO

$20.99

$

Usually ships in 3-6 days

0

5

Toro 99-5132

BOLT
(Superseded to 139-9940)

$2.49

$

Usually ships in 3-6 days

0

6

Toro 110-9354-03

SUPPORT-ENGINE, SIDE

$8.99

$

Usually ships in 3-6 days

0

7

Toro 32144-11

SCREW-THD ROLL, HWH

$7.99

$

In Stock, Qty 6

0

13

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

14

Toro 117-6037-03

SUPPORT-ENGINE

$15.99

$

Usually ships in 3-6 days

0

15

Toro 139-3521

DECAL-ENGINE COMMERCIAL

$4.49

$

Usually ships in 3-6 days

0
