38755 (821 R-C) - Toro 21" Power Clear Commercial Snow Thrower (SN: 409000000 - 411499999) Fuel System and Carburetor Assembly Parts Diagram

21" Power Clear Commercial Snow Thrower

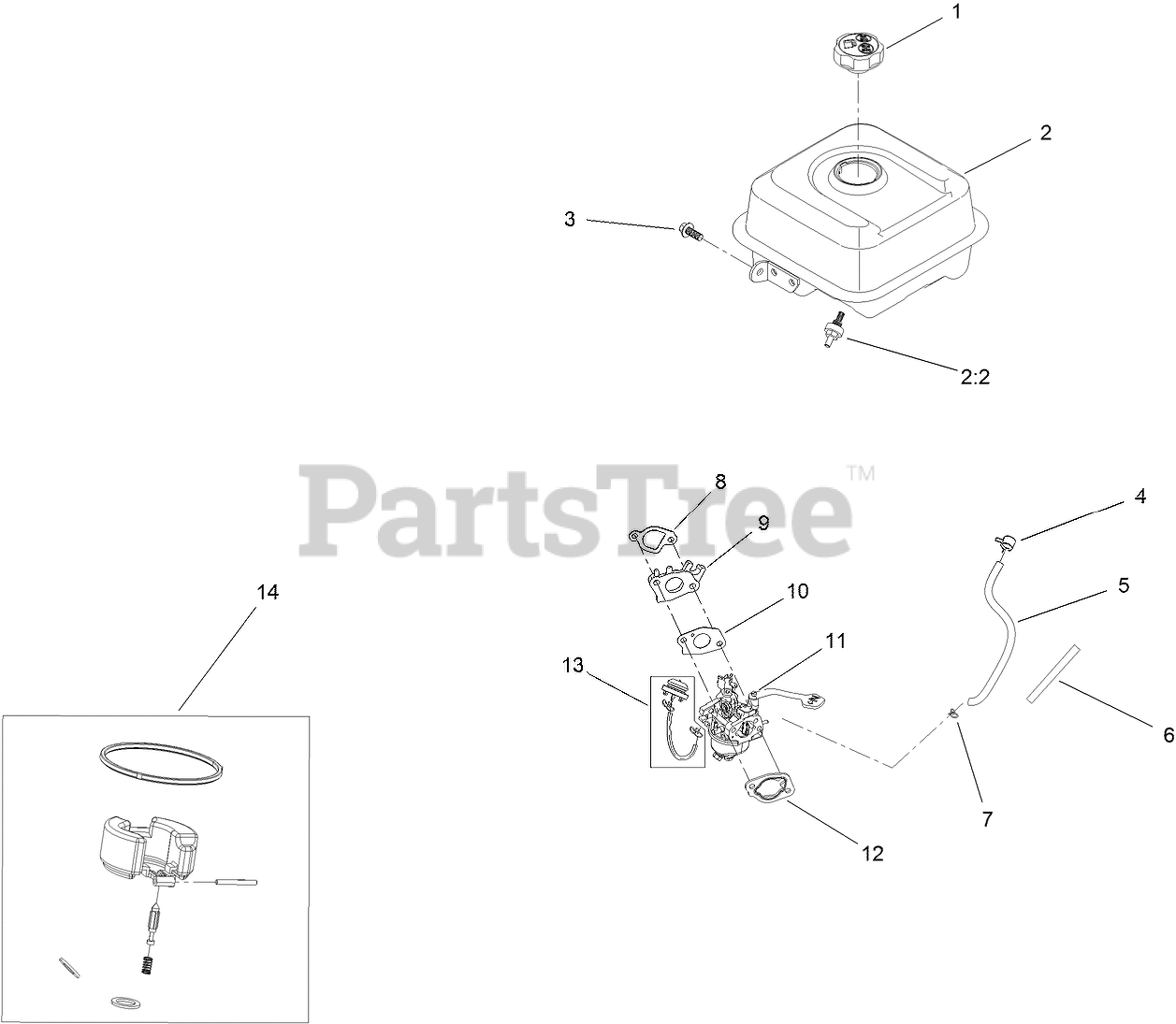

Fuel System and Carburetor Assembly Parts Diagram

  • Title
1

Toro 133-9823

CAP-FUEL

$19.99

$

In Stock, Qty 13

0

2

Toro 133-1553

FUEL TANK AND FILTER ASM

$100.99

$

Usually ships in 3-6 days

0

2:2

Toro 127-9065

FILTER-FUEL

$5.99

$

In Stock, Qty 8

0

3

Toro 121-0294

SCREW-HHF

$1.99

$

In Stock, only 4 left!

0

4

Toro 127-9120

CLAMP-HOSE

$1.99

$

In Stock, only 2 left!

0

5

Toro 133-1537

HOSE-FUEL

$13.99

$

Usually ships in 3-6 days

0

6

Toro 133-9997

SLEEVE-ABRASION

$1.99

$

Usually ships in 3-6 days

0

7

Toro 121-0087

CLAMP-HOSE

$1.49

$

In Stock, only 3 left!

0

8

Toro 133-1531

GASKET-CARBURETOR

$1.99

$

In Stock, Qty 20+

0

9

Toro 133-1532

INSULATOR-CARBURETOR

$5.99

$

In Stock, only 3 left!

0

10

Toro 133-1533

GASKET-CARBURETOR

$1.99

$

In Stock, Qty 5

0

11

Toro 139-0700

CARBURETOR ASM

$103.99

$

In Stock, only 1 left!

0

12

Toro 121-0080

GASKET-CARBURETOR

$5.99

$

In Stock, Qty 11

0

13

Toro 127-9079

PRIMER KIT

$29.99

$

In Stock, Qty 5

0

14

Toro 127-9395

INTERNAL CARB SERVICE KIT

$23.99

$

In Stock, only 4 left!

0

99

Toro 139-0711

HIGH ALTITUDE KIT

Note: Not illustrated

$12.99

$

Usually ships in 3-6 days

0
