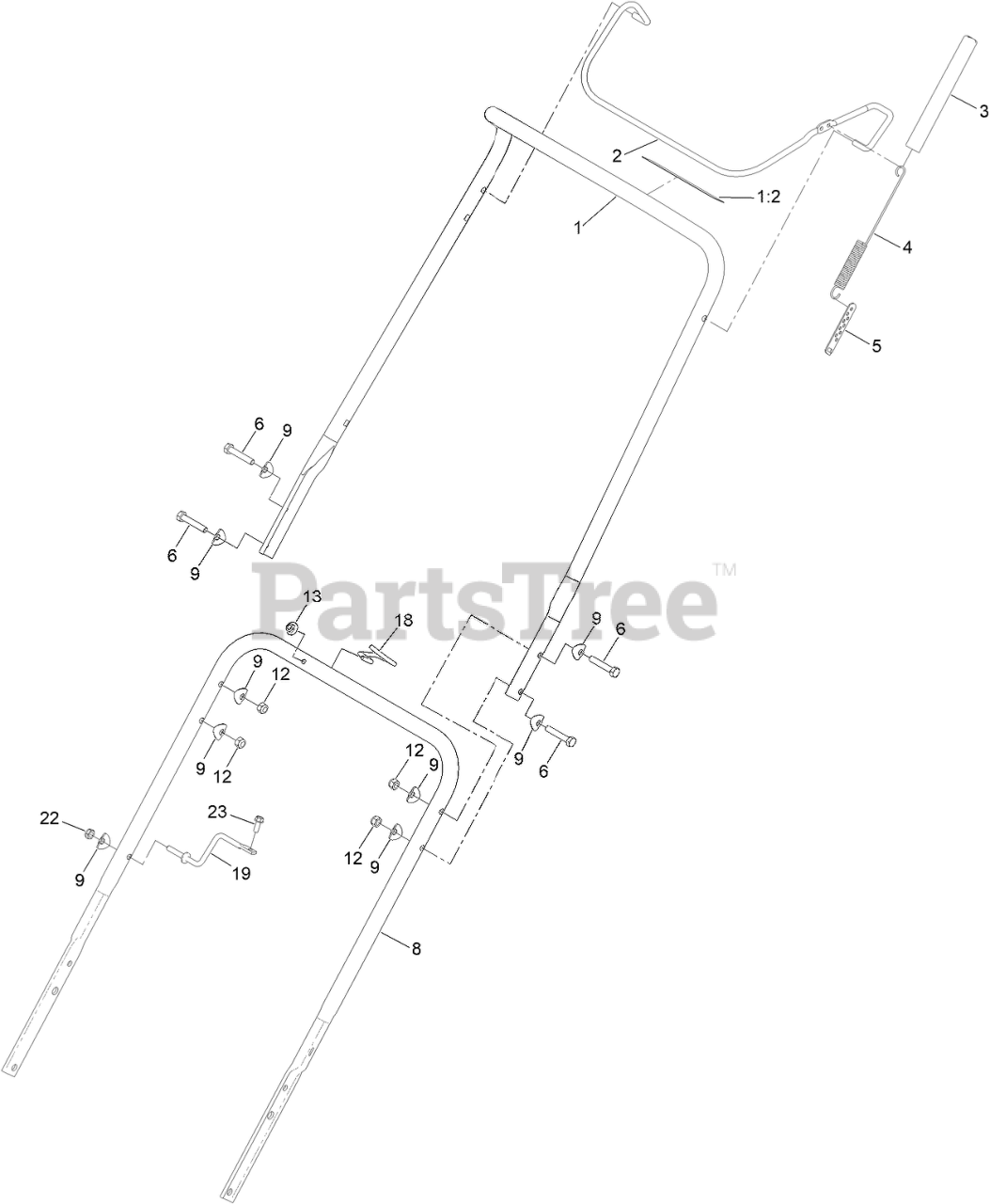

38754 (721 R-C) - Toro 21" Power Clear Commercial Snow Thrower (SN: 414142000 - 999999999) Handle Assembly Parts Diagram

21" Power Clear Commercial Snow Thrower

Handle Assembly Parts Diagram

  • Title

1

Toro 140-3744

UPPER HANDLE ASM (W/ DECAL)

$56.99

$

In Stock, only 1 left!

0

1:2

Toro 94-2577

DECAL-DRIVE, ROTOR

$4.99

$

In Stock, only 1 left!

0

2

Toro 114-3780-03

BAIL-CONTROL

$18.99

$

In Stock, Qty 13

0

3

Toro 114-3796

COVER-SPRING

$5.49

$

In Stock, Qty 6

0

4

Toro 136-7146

SPRING-EXTENSION, CLUTCH

$6.49

$

In Stock, Qty 20+

0

5

Toro 136-7126

ADJUSTER-CLUTCH CABLE

$6.99

$

In Stock, Qty 12

0

6

Toro 125-7944

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

8

Toro 138-8760-03

HANDLE-LOWER

$56.99

$

Usually ships in 3-6 days

0

9

Toro 107-3844

WASHER

$1.49

$

In Stock, Qty 19

0

12

Toro 3296-72

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

13

Toro 114-3778

NUT-HF

$1.49

$

In Stock, Qty 12

0

18

Toro 139-3543

GUIDE-ROPE

$4.49

$

In Stock, only 1 left!

0

19

Toro 139-3504

SUPPORT-BOX, SWITCH

$11.99

$

Usually ships in 3-6 days

0

22

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 10

0

23

Toro 32144-85

SCREW-HWH

$1.99

$

In Stock, Qty 20+

0
