38753 (721 E) - Toro 21" Power Clear Snow Thrower (SN: 416153644 - 999999999) Shroud and Chute Assembly Parts Diagram

21" Power Clear Snow Thrower

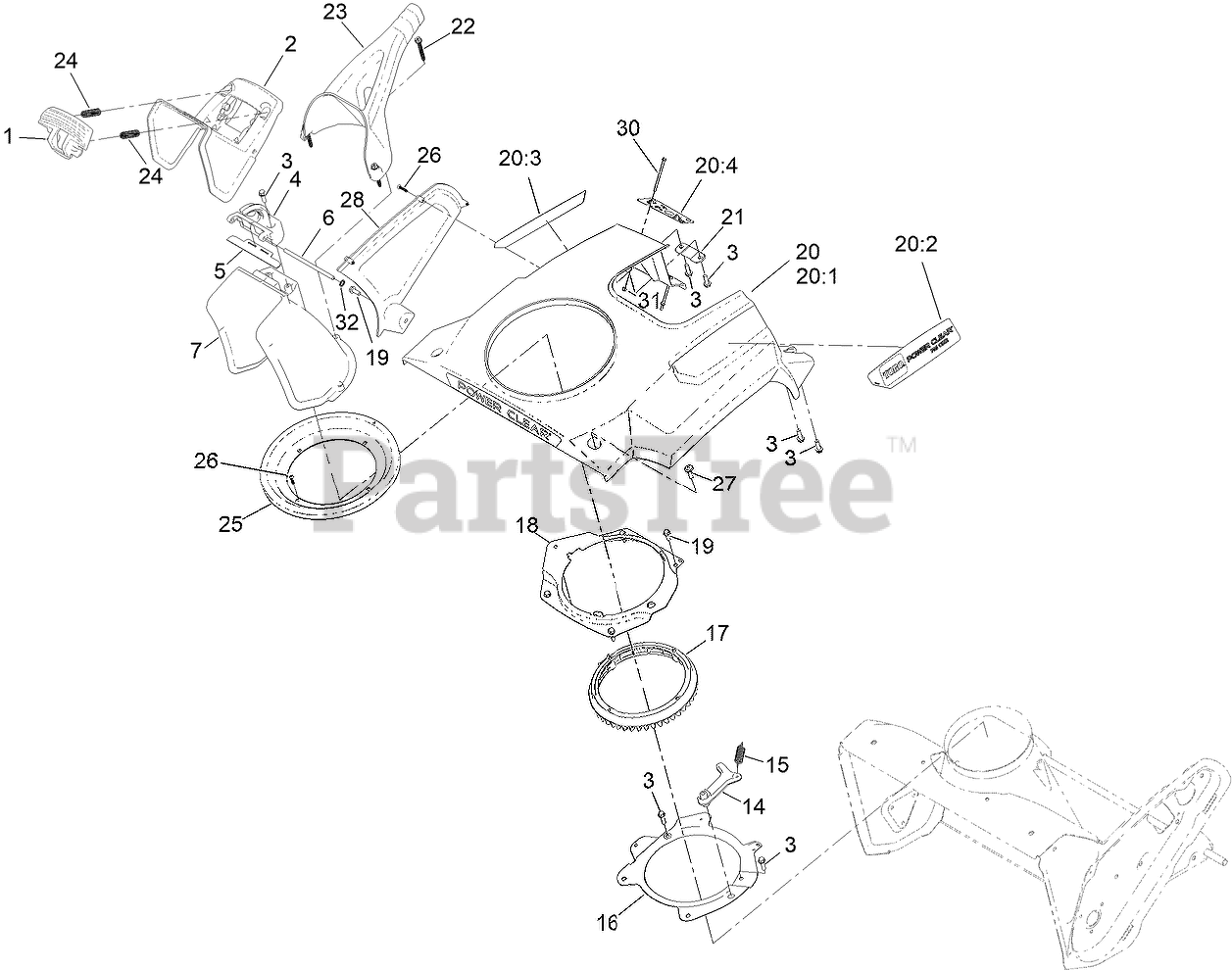

Shroud and Chute Assembly Parts Diagram

  • Title
1

Toro 108-4941

TRIGGER-DEFLECTOR

$17.99

$

In Stock, only 1 left!

0

2

Toro 117-9121

DEFLECTOR-CHUTE, CE

$26.99

$

Usually ships in 3-6 days

0

3

Toro 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

4

Toro 108-4942

HINGE-RATCHET, DEFLECTOR

$14.99

$

In Stock, only 1 left!

0

5

Toro 114-3790

SEAL-DEFLECTOR

$3.49

$

In Stock, Qty 9

0

6

Toro 136-8672

HINGE PIN-DEFLECTOR

$3.49

$

In Stock, Qty 14

0

7

$20.99

$

Usually ships in 3-6 days

0

14

Toro 108-4926

PAWL-DETENT

$5.49

$

In Stock, only 1 left!

0

15

Toro 80-4600

SPRING-EXTENSION

$7.99

$

In Stock, Qty 9

0

16

Toro 108-4883-03

RING-SUPPORT, CHUTE

$18.99

$

In Stock, only 1 left!

0

17

Toro 108-4922

RING-CHUTE, DETENT

$18.99

$

In Stock, only 4 left!

0

18

Toro 108-4874-03

RETAINER-RING, CHUTE

$18.99

$

In Stock, only 1 left!

0

19

Toro 32144-85

SCREW-HWH

$1.99

$

In Stock, Qty 20+

0

20

SHROUD ASM, W/DECALS

Note: Not serviced separately

$

$

Not available

20:1

Toro 138-8785

SHROUD ASM, W/ARTWORK

$52.99

$

Usually ships in 3-6 days

0

20:2

Toro 139-3514

DECAL-SHROUD LH

$4.49

$

Usually ships in 3-6 days

0

20:3

Toro 139-3515

DECAL-SHROUD RH

$4.49

$

In Stock, only 2 left!

0

20:4

Toro 139-3506

DECAL-ENGINE, ELECTRIC START

$1.99

$

In Stock, only 2 left!

0

21

Toro 138-8757

RETAINER-SHROUD

$1.99

$

Usually ships in 3-6 days

0

22

Toro 114-3751

SCREW-HWH, PLASTITE

$1.99

$

In Stock, Qty 6

0

23

Toro 110-9366

HANDLE-CHUTE

$22.99

$

In Stock, only 1 left!

0

24

Toro 136-7136

SPRING-COMPRESSION

$1.49

$

In Stock, Qty 20+

0

25

Toro 114-3772

SEAL-RING, CHUTE

$17.99

$

In Stock, only 1 left!

0

26

Toro 94-4496

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

27

Toro 110-9361

SCREW-PPH
(Superseded to 137-3013)

$2.99

$

In Stock, Qty 20+

0

28

Toro 138-8754

COVER-SIDE

$9.49

$

In Stock, only 1 left!

0

30

Toro 117-9106

SCREW-HWH

$2.49

$

Usually ships in 3-6 days

0

31

Toro 3296-9

NUT-HEX

$0.99

$

In Stock, Qty 7

0

32

Toro 104-8310

RING-RETAINING

$0.99

$

In Stock, Qty 20+

0
