38751 (721 R-C) - Toro 21" Power Clear Commercial Snow Thrower (SN: 314000001 - 314999999) (2014) CLUCH CABLE AND BELT DRIVE ASSEMBLY Parts Diagram

21" Power Clear Commercial Snow Thrower

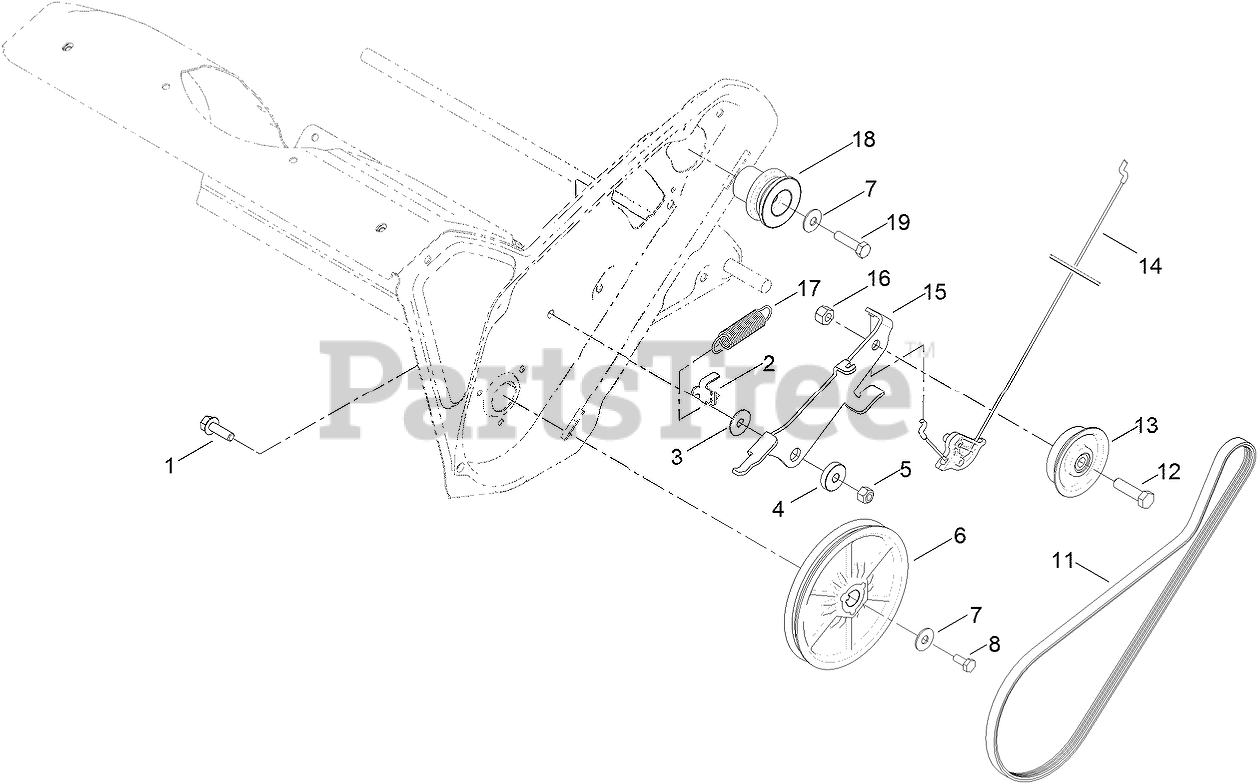

CLUCH CABLE AND BELT DRIVE ASSEMBLY Parts Diagram

  • Title

1

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 14

0

2

Toro 108-4938

CLIP-SPRING, BRAKE
(Superseded to 136-7133)

$1.99

$

In Stock, Qty 20+

0

3

Toro 108-4925

WASHER

$1.99

$

In Stock, Qty 5

0

4

Toro 108-4916

BUSHING-PIVOT

$2.99

$

In Stock, only 2 left!

0

5

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

6

Toro 121-6624

PULLEY

$20.99

$

In Stock, only 2 left!

0

7

Toro 3290-456

WASHER-BELLEVILLE

$2.99

$

In Stock, Qty 19

0

8

Toro 110-9381

SCREW-HH

$1.99

$

In Stock, only 3 left!

0

11

Toro 121-6622

BELT-DRIVE

$20.99

$

In Stock, Qty 13

0

12

Toro 323-29

SCREW-HH

$0.99

$

In Stock, Qty 16

0

13

Toro 114-3785

PULLEY-IDLER

$13.99

$

In Stock, only 1 left!

0

14

Toro 115-5682

CABLE-CLUTCH

$14.99

$

In Stock, Qty 17

0

15

Toro 114-3782

ARM-IDLER
(Superseded to 136-7138)

$11.99

$

In Stock, only 2 left!

0

16

Toro 32152-2

NUT-LOCK, CONE

$2.99

$

In Stock, Qty 18

0

17

Toro 121-6630

SPRING-EXTENSION

$5.49

$

In Stock, Qty 5

0

18

Toro 125-7927

PULLEY-ENGINE

$43.99

$

Usually ships in 3-6 days

0

19

Toro 121-6646

SCREW-HH

$1.49

$

In Stock, Qty 5

0
