38744 (721 QZE) - Toro 21" Power Clear Snow Thrower (SN: 402082000 - 404309999) SHROUD AND FUEL TANK ASSEMBLY Parts Diagram

21" Power Clear Snow Thrower

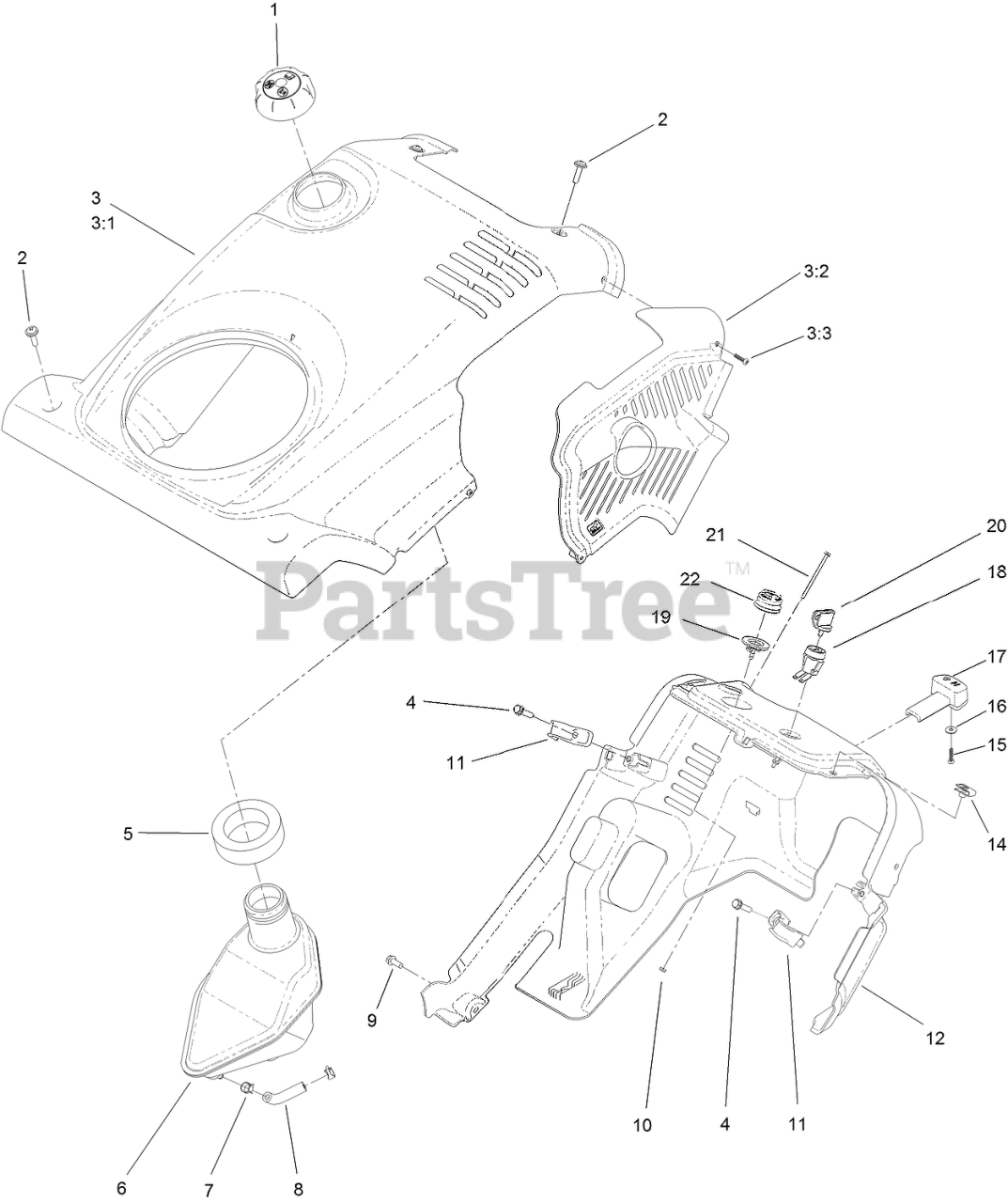

SHROUD AND FUEL TANK ASSEMBLY Parts Diagram

  • Title

1

Toro 131-6458

CAP-GAS
(Superseded to 138-3624)

$10.99

$

In Stock, Qty 8

0

2

Toro 110-9361

SCREW-PPH
(Superseded to 137-3013)

$2.99

$

In Stock, Qty 20+

0

3

Toro 127-5987

SHROUD ASM

$108.99

$

Usually ships in 3-6 days

0

3:1

Toro 127-5988

SHROUD
(Superseded to 127-5987)

$108.99

$

Usually ships in 3-6 days

0

3:2

Toro 117-6035

BAFFLE-EXHAUST

$19.99

$

Usually ships in 3-6 days

0

3:3

Toro 94-4496

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

4

Toro 46-8092

SCREW-PLASTITE
(Superseded to 137-3101)

$1.49

$

In Stock, Qty 6

0

5

Toro 114-3773

SEAL-TANK

$3.49

$

In Stock, only 1 left!

0

6

Toro 120-9848

TANK-FUEL, GAS

$67.99

$

In Stock, only 1 left!

0

7

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

8

Toro 109-0660

HOSE-FUEL

$4.49

$

In Stock, only 3 left!

0

9

Toro 32144-85

SCREW-HWH

$1.99

$

In Stock, Qty 20+

0

10

Toro 3296-9

NUT-HEX

$0.99

$

In Stock, Qty 7

0

11

Toro 108-4947

CLIP-SHROUD

$3.49

$

In Stock, only 2 left!

0

12

Toro 117-6046

SHROUD-LOWER

$72.99

$

Usually ships in 3-6 days

0

14

Toro 107069

CLIP

$2.99

$

In Stock, Qty 20+

0

15

Toro 94-4496

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

16

Toro 3256-49

WASHER-PLAIN

$0.99

$

In Stock, Qty 8

0

17

Toro 117-9100

KNOB-CHOKE

$6.49

$

In Stock, Qty 15

0

18

Toro 40-5940

SWITCH

$15.99

$

Usually ships in 3-6 days

0

19

Toro 44-2750

BODY-PRIMER

$8.99

$

In Stock, Qty 20+

0

20

Toro 63-8360

KEY-IGNITION

$5.99

$

In Stock, Qty 12

0

21

Toro 117-9106

SCREW-HWH

$2.49

$

Usually ships in 3-6 days

0

22

Toro 66-7460

BULB-PRIMER

$6.49

$

In Stock, Qty 20+

0
