38744 (721 QZE) - Toro 21" Power Clear Snow Thrower (SN: 316000001 - 316999999) (2016) UPPER HANDLE CONTROL ASSEMBLY Parts Diagram

21" Power Clear Snow Thrower

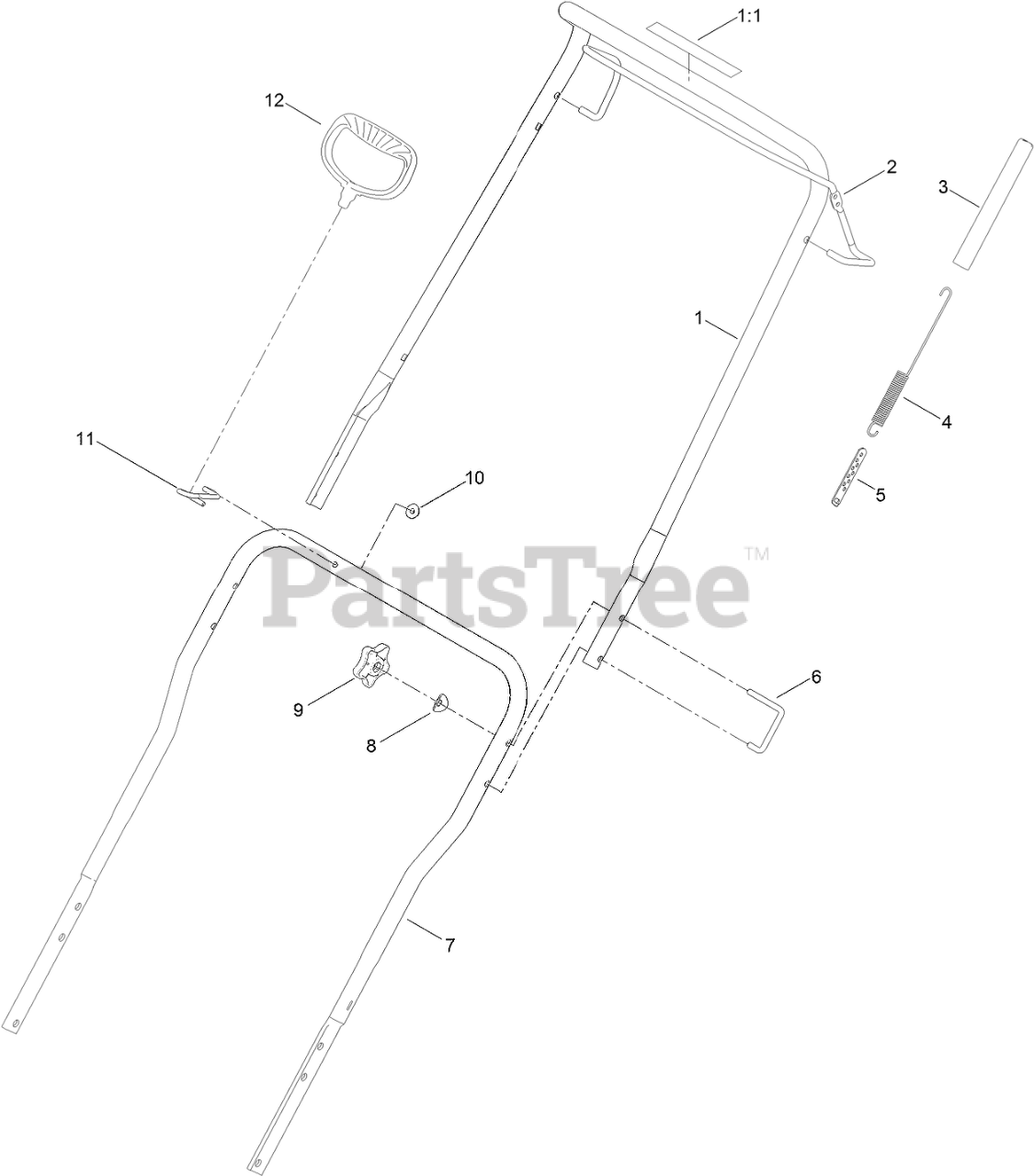

UPPER HANDLE CONTROL ASSEMBLY Parts Diagram

  • Title
1

Toro 114-3768

UPPER HANDLE ASM
(Superseded to 140-3744)

$56.99

$

In Stock, only 1 left!

0

1:1

Toro 94-2577

DECAL-DRIVE, ROTOR

$4.99

$

In Stock, only 1 left!

0

2

Toro 114-3780-03

BAIL-CONTROL

$18.99

$

In Stock, Qty 12

0

3

Toro 114-3796

COVER-SPRING

$5.49

$

In Stock, Qty 5

0

4

Toro 125-1148

SPRING-EXTENSION, CLUTCH
(Superseded to 136-7146)

$6.49

$

In Stock, Qty 18

0

5

Toro 71-5330

ADJUSTER-CABLE, CLUTCH
(Superseded to 136-7126)

$6.99

$

In Stock, Qty 12

0

6

Toro 108-4887

LOCK-HANDLE
(Superseded to 136-7130)

$5.49

$

In Stock, Qty 7

0

7

Toro 127-5956-03

HANDLE-LOWER

$58.99

$

Usually ships in 3-6 days

0

8

Toro 107-3844

WASHER

$1.49

$

In Stock, Qty 17

0

9

Toro 114-3779

KNOB-HANDLE

$6.49

$

In Stock, Qty 11

0

10

Toro 114-3778

NUT-HEX FLG

$1.49

$

In Stock, Qty 20+

0

11

Toro 108-4949

GUIDE-ROPE
(Superseded to 136-7135)

$4.99

$

In Stock, only 4 left!

0

12

Toro 117-9104

HANDLE-RECOIL
(Superseded to 121-0287)

$13.99

$

In Stock, only 2 left!

0
