38743 (721 QZR) - Toro 21" Power Clear Snow Thrower (SN: 315000001 - 315999999) (2015) ENGINE ASSEMBLY NO. 2 Parts Diagram

21" Power Clear Snow Thrower

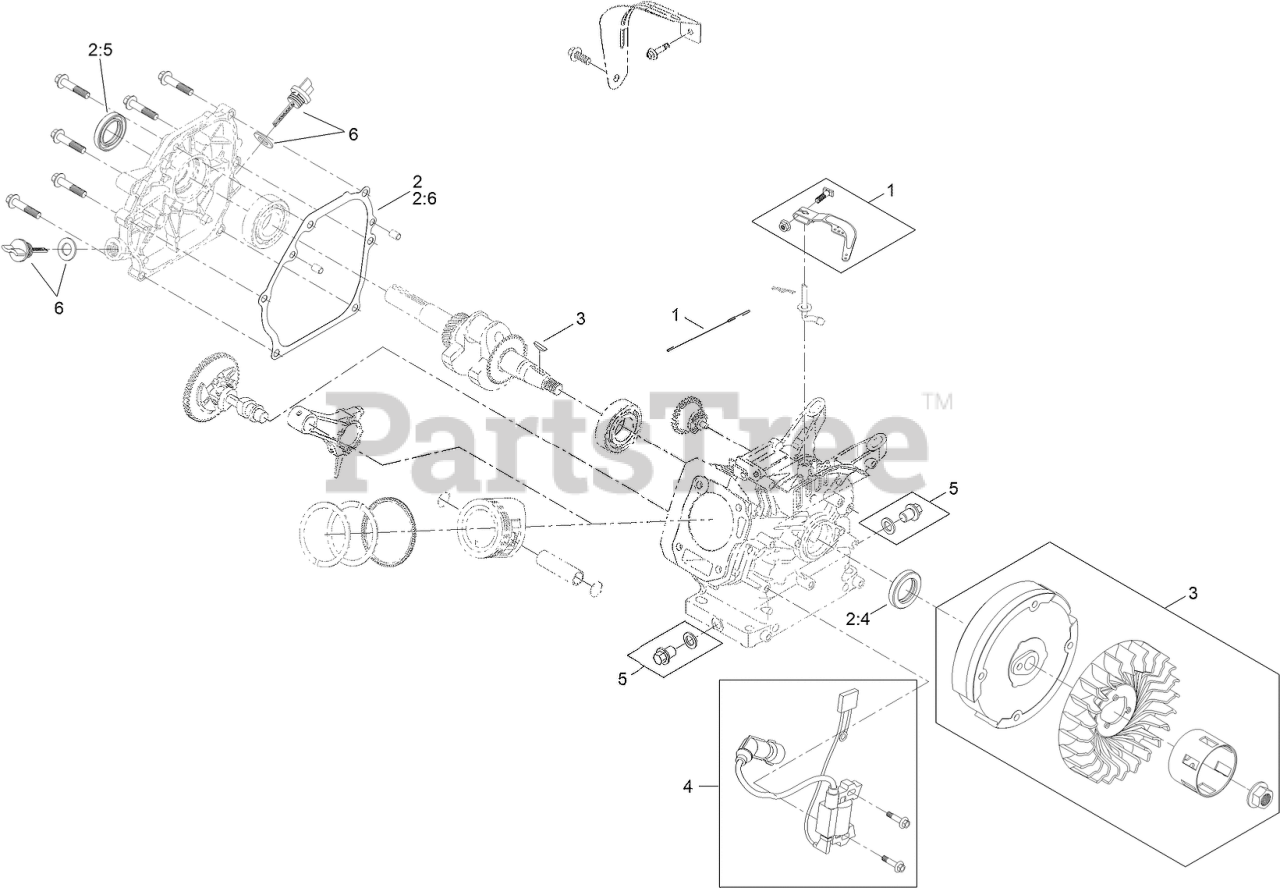

ENGINE ASSEMBLY NO. 2 Parts Diagram

  • Title

1

Toro 119-1957

GOVERNOR KIT
(Superseded to 136-7765)

$27.99

$

In Stock, only 2 left!

0

2

Toro 127-9001

GASKET AND SEAL KIT

$82.99

$

Usually ships in 3-6 days

0

2:4

Seal-Oil

Note: Not serviced separately

$

$

Not available

2:5

Seal-Oil

Note: Not serviced separately

$

$

Not available

2:6

GASKET-COVER, CRANKCASE

Note: Not serviced separately

$

$

Not available

2:1

Toro 121-0109

GASKET-COVER, VALVE

Note: Not illustrated

$5.49

$

Usually ships in 3-6 days

0

2:2

Gasket-Exhaust

Note: Not serviced separately

$

$

Not available

2:3

GASKET-HEAD, CYLINDER

Note: Not illustrated

$

$

Not available

2:7

GASKET-CARBURETOR

Note: Not illustrated

$

$

Not available

2:8

GASKET-CARBURETOR

Note: Not serviced separately

$

$

Not available

2:9

GASKET-CARBURETOR

Note: Not illustrated

$

$

Not available

3

Toro 127-9004

RECOIL FLYWHEEL KIT

$150.99

$

Usually ships in 3-6 days

0

4

Toro 119-1959

IGNITION KIT
(Superseded to 136-7766)

$82.99

$

In Stock, only 2 left!

0

5

Toro 119-1923

DRAIN PLUG KIT

$7.99

$

Usually ships in 3-6 days

0

6

Toro 119-1944

OBS DIPSTICK AND O-RING KIT
(Superseded to 127-9374)

$11.99

$

In Stock, only 2 left!

0
