38743 (721 QZR) - Toro 21" Power Clear Snow Thrower (SN: 315000001 - 315999999) (2015) ENGINE ASSEMBLY NO. 1 Parts Diagram

21" Power Clear Snow Thrower

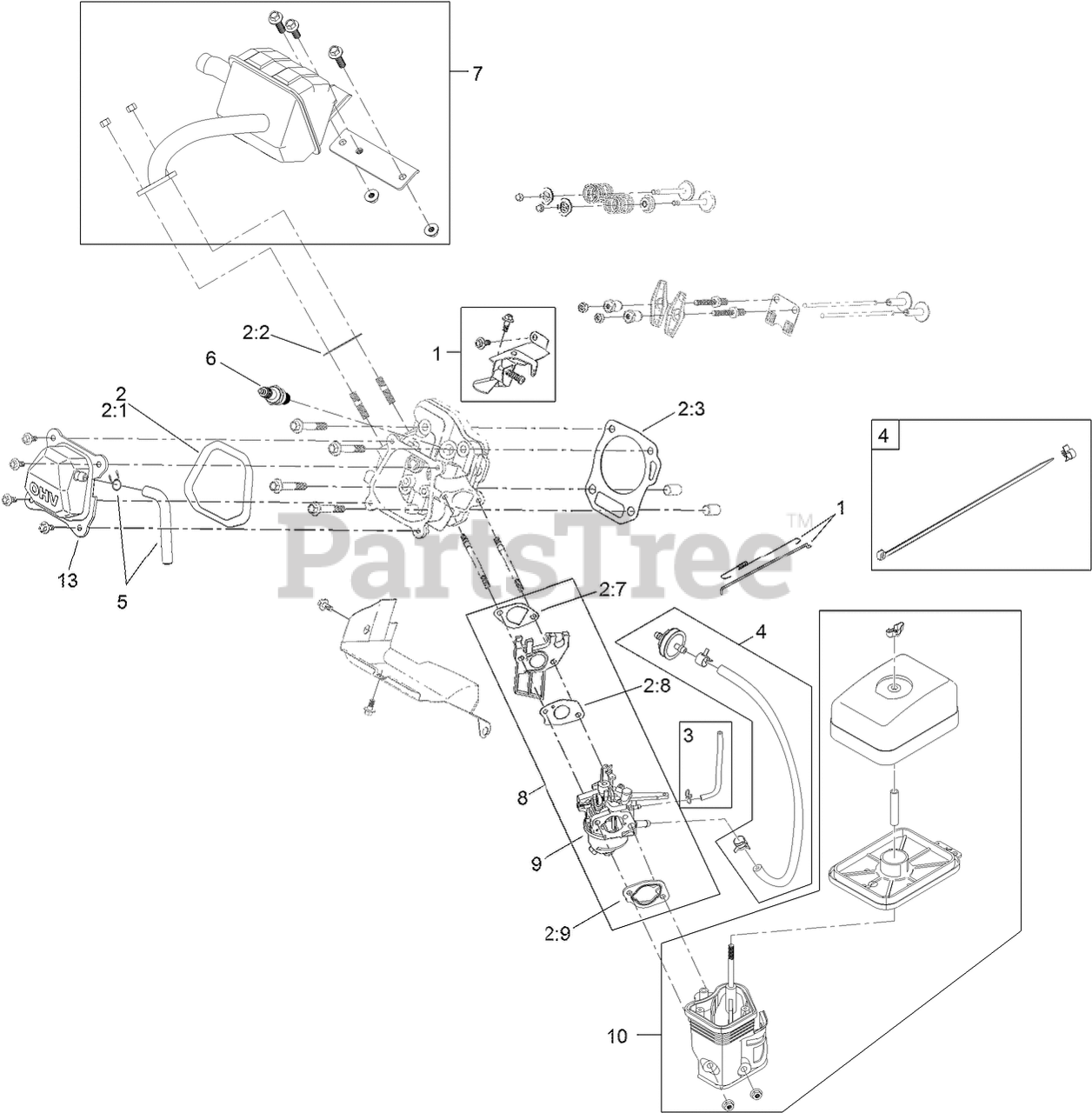

ENGINE ASSEMBLY NO. 1 Parts Diagram

  • Title

1

Toro 119-1957

GOVERNOR KIT
(Superseded to 136-7765)

$27.99

$

In Stock, only 2 left!

0

2

Toro 127-9001

GASKET AND SEAL KIT

$82.99

$

Usually ships in 3-6 days

0

2:1

Toro 121-0109

GASKET-COVER, VALVE

$5.49

$

Usually ships in 3-6 days

0

2:2

Gasket-Exhaust

Note: Not serviced separately

$

$

Not available

2:3

GASKET-HEAD, CYLINDER

Note: Not serviced separately

$

$

Not available

2:7

GASKET-CARBURETOR

Note: Not serviced separately

$

$

Not available

2:8

GASKET-CARBURETOR

Note: Not serviced separately

$

$

Not available

2:9

GASKET-CARBURETOR

Note: Not serviced separately

$

$

Not available

2:4

Seal-Oil

Note: Not illustrated

$

$

Not available

2:5

Seal-Oil

Note: Not serviced separately

$

$

Not available

2:6

GASKET-COVER, CRANKCASE

Note: Not illustrated

$

$

Not available

3

Toro 119-1949

PRIMER LINE KIT
(Superseded to 127-9376)

$31.99

$

In Stock, only 1 left!

0

4

Toro 121-4299

FUEL LINE KIT

$33.99

$

In Stock, only 1 left!

0

5

Toro 119-1921

BREATHER TUBE KIT
(Superseded to 139-0630)

$3.49

$

In Stock, only 1 left!

0

6

Toro 119-1901

PLUG-SPARK
(Superseded to 81-3250)

$3.49

$

In Stock, Qty 20+

0

7

Toro 121-4297

MUFFLER KIT

$82.99

$

Usually ships in 3-6 days

0

8

Toro 127-9008

CARBURETOR KIT

$91.99

$

In Stock, only 2 left!

0

9

Toro 127-9089

CARB REPAIR KIT WITH GASKETS

$27.99

$

In Stock, only 2 left!

0

10

Toro 121-4282

HEATER BOX KIT

$50.99

$

Usually ships in 3-6 days

0

13

Toro 121-0499

VALVE COVER ASM

$18.99

$

Usually ships in 3-6 days

0
