38741 (721 R) - Toro 21" Power Clear Snow Thrower (SN: 402082000 - 404309999) HANDLE CONTROL ASSEMBLY Parts Diagram

21" Power Clear Snow Thrower

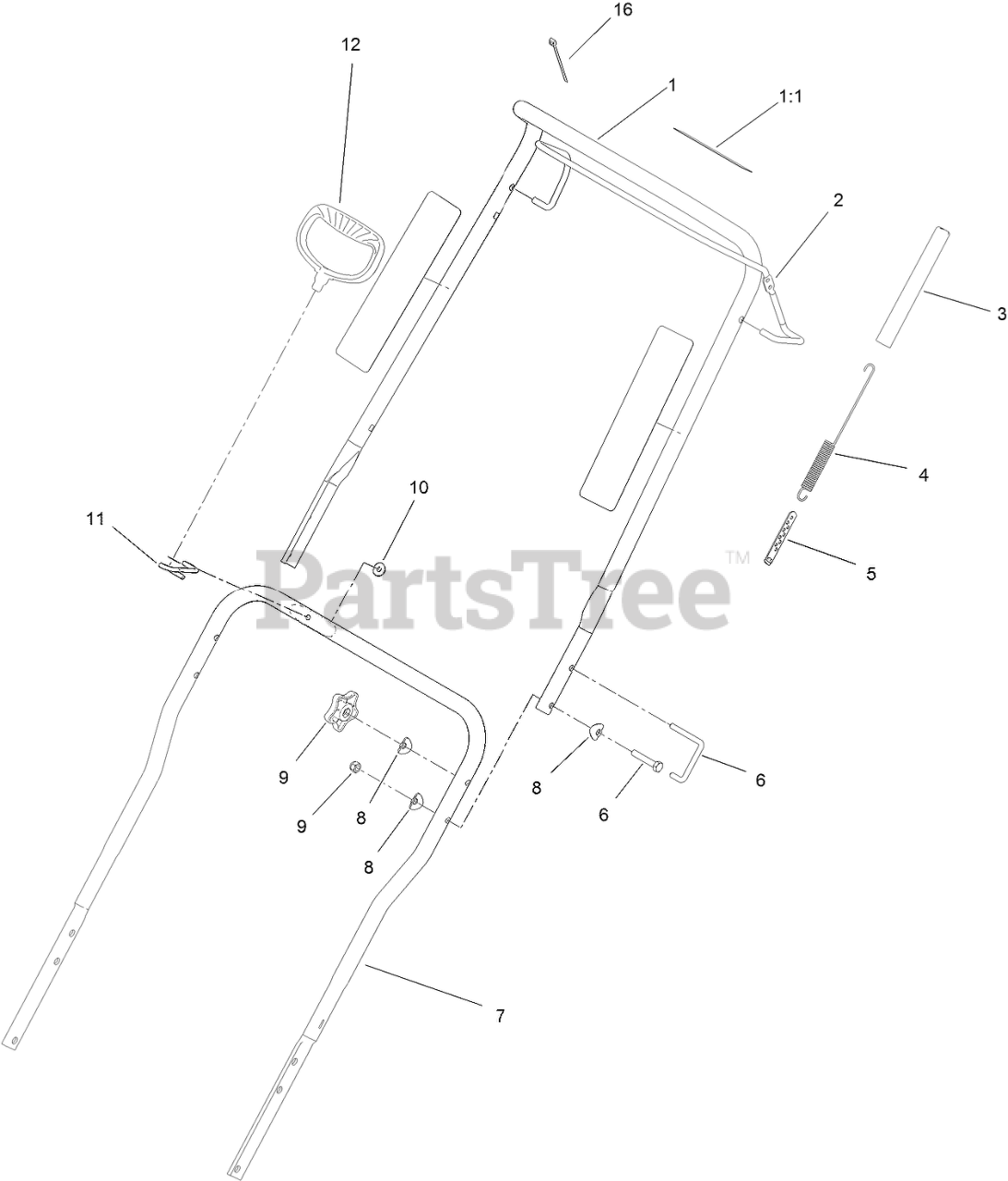

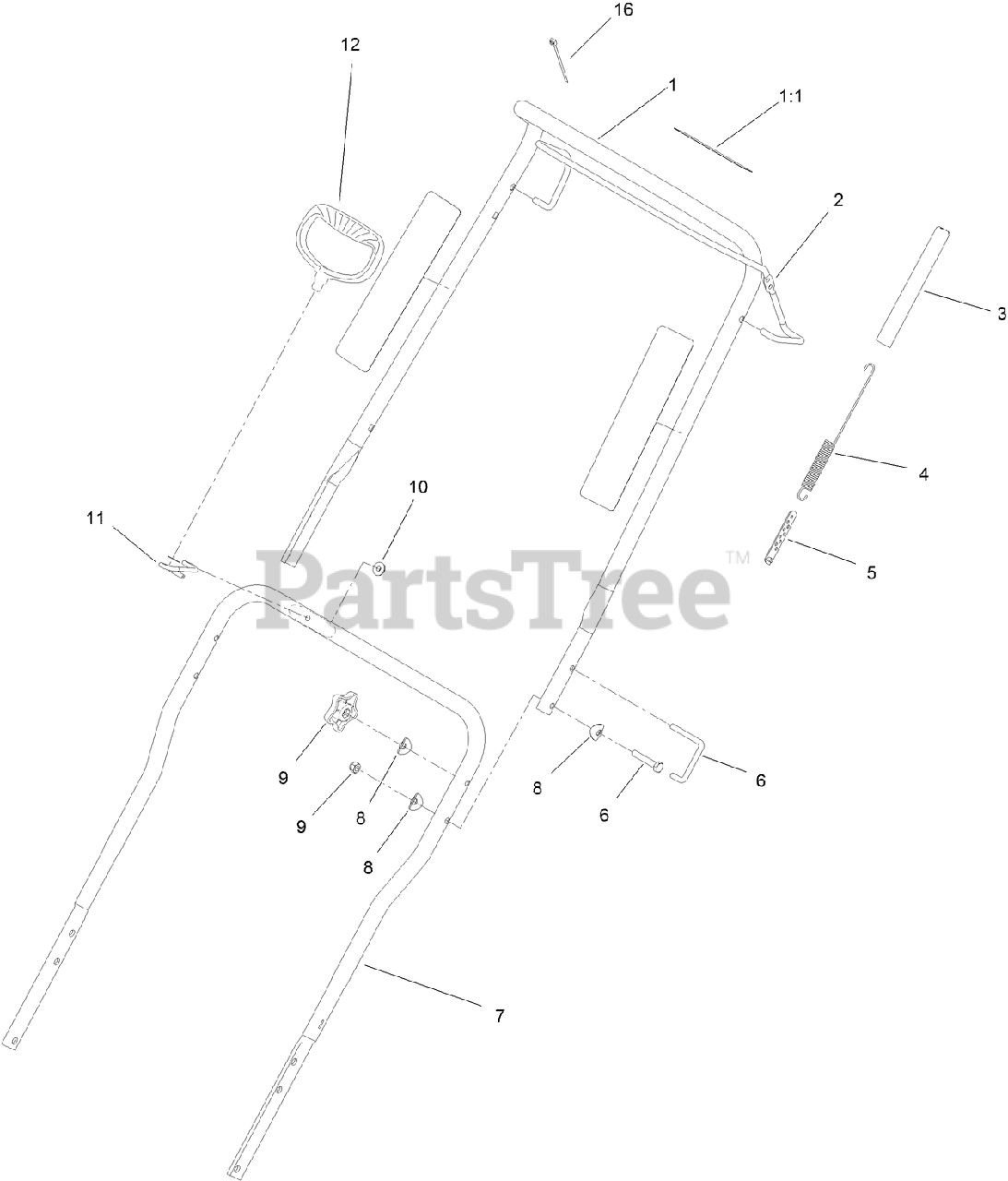

HANDLE CONTROL ASSEMBLY Parts Diagram

  • Title

1

Toro 117-9139

UPPER HANDLE ASM

$84.99

$

In Stock, only 1 left!

0

1:1

Toro 94-2577

DECAL-DRIVE, ROTOR

$4.99

$

In Stock, only 1 left!

0

2

Toro 117-9136-03

BAIL-CLUTCH

$22.99

$

In Stock, only 4 left!

0

3

Toro 114-3796

COVER-SPRING

$5.49

$

In Stock, Qty 20+

0

4

Toro 125-1148

SPRING-EXTENSION, CLUTCH
(Superseded to 136-7146)

$6.49

$

In Stock, Qty 20+

0

5

Toro 71-5330

ADJUSTER-CABLE, CLUTCH
(Superseded to 136-7126)

$6.99

$

In Stock, Qty 19

0

6

Toro 136-7130

LOCK-HANDLE

$5.49

$

In Stock, Qty 20+

0

7

Toro 127-5956-03

HANDLE-LOWER

$58.99

$

Usually ships in 3-6 days

0

8

Toro 107-3844

WASHER

$1.49

$

In Stock, Qty 20+

0

9

Toro 114-3779

KNOB-HANDLE

$6.49

$

In Stock, Qty 20+

0

10

Toro 114-3778

NUT-HF

$1.49

$

In Stock, Qty 19

0

11

Toro 136-7135

GUIDE-ROPE

$4.99

$

In Stock, only 4 left!

0

12

Toro 117-9104

HANDLE-RECOIL
(Superseded to 121-0287)

$13.99

$

In Stock, only 1 left!

0

16

Toro 614249

TIE-CABLE

$1.49

$

In Stock, only 2 left!

0
