38741 (721 R) - Toro 21" Power Clear Snow Thrower (SN: 402082000 - 404309999) DISCHARGE CHUTE CONTROL ASSEMBLY Parts Diagram

21" Power Clear Snow Thrower

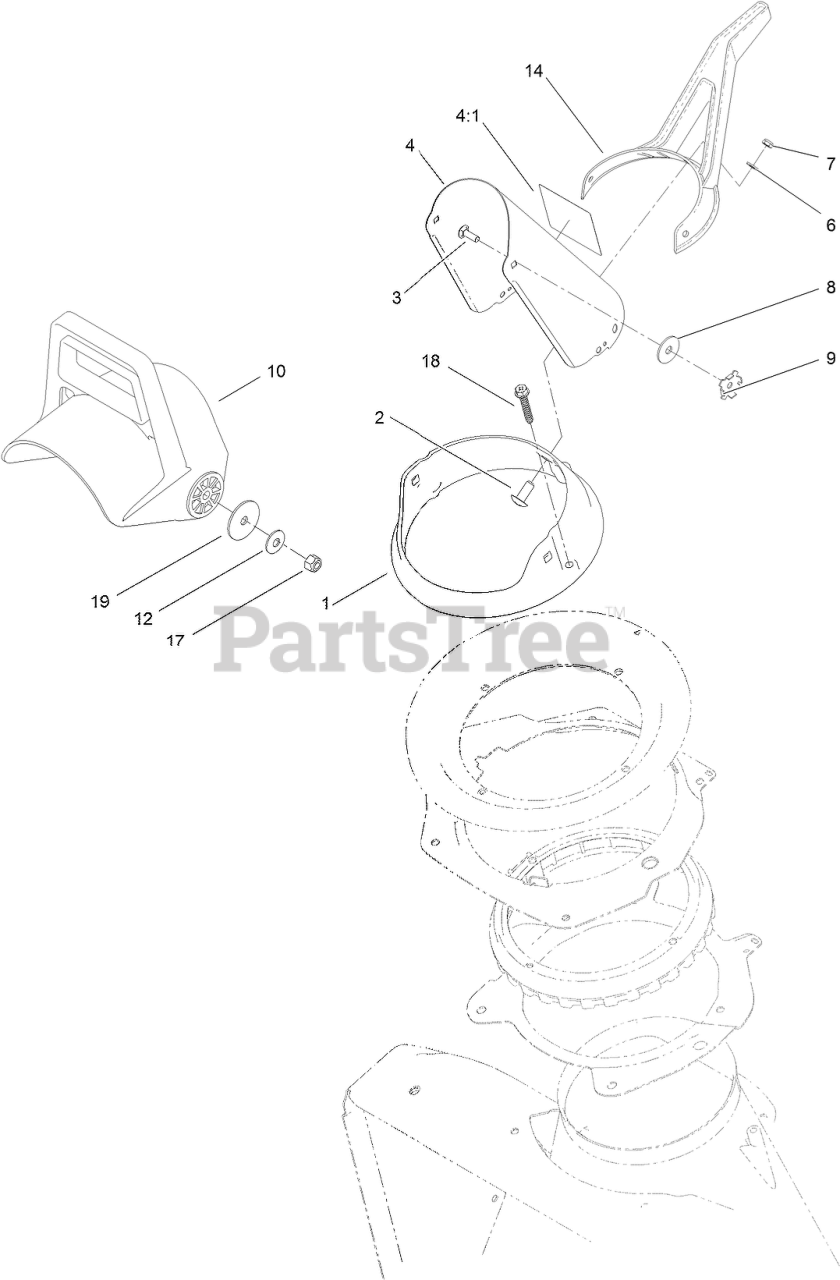

DISCHARGE CHUTE CONTROL ASSEMBLY Parts Diagram

  • Title
1

Toro 112-1546

RING-CHUTE

$19.99

$

In Stock, only 1 left!

0

2

Toro 100-5487

SCREW-PTH

$1.99

$

In Stock, Qty 20+

0

3

Toro 3230-22

SCREW-CARR

$2.49

$

In Stock, only 2 left!

0

4

Toro 120-0131

DISCHARGE CHUTE ASM

$44.99

$

Usually ships in 3-6 days

0

4:1

Toro 115-5660

DECAL-DANGER, CE

$60.99

$

Usually ships in 3-6 days

0

6

Toro 3256-70

WASHER-FLAT

$1.49

$

In Stock, Qty 11

0

7

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 8

0

8

Toro 20-4320

WASHER-RUBBER

$0.99

$

In Stock, Qty 8

0

9

Toro 136-7185

PLATE-FRICTION

$25.99

$

Usually ships in 3-6 days

0

10

Toro 56-2680

CHUTE-DEFLECTOR

$23.99

$

In Stock, only 1 left!

0

12

Toro 3290-456

WASHER-BELLEVILLE

$2.99

$

In Stock, Qty 19

0

14

Toro 94-9914

HANDLE-CONTROL, CHUTE

$11.99

$

In Stock, Qty 11

0

17

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

18

Toro 108-4946

SCREW-PLASTITE
(Superseded to 137-3012)

$1.99

$

In Stock, Qty 11

0

19

Toro 3256-68

WASHER-FLAT

$2.99

$

In Stock, only 4 left!

0
