38736 - Gravely 48" Snow Blower for 7173H Tractor LIFT ASSIST, CHUTE CRANK AND DEFLECTOR Parts Diagram

48" Snow Blower for 7173H Tractor

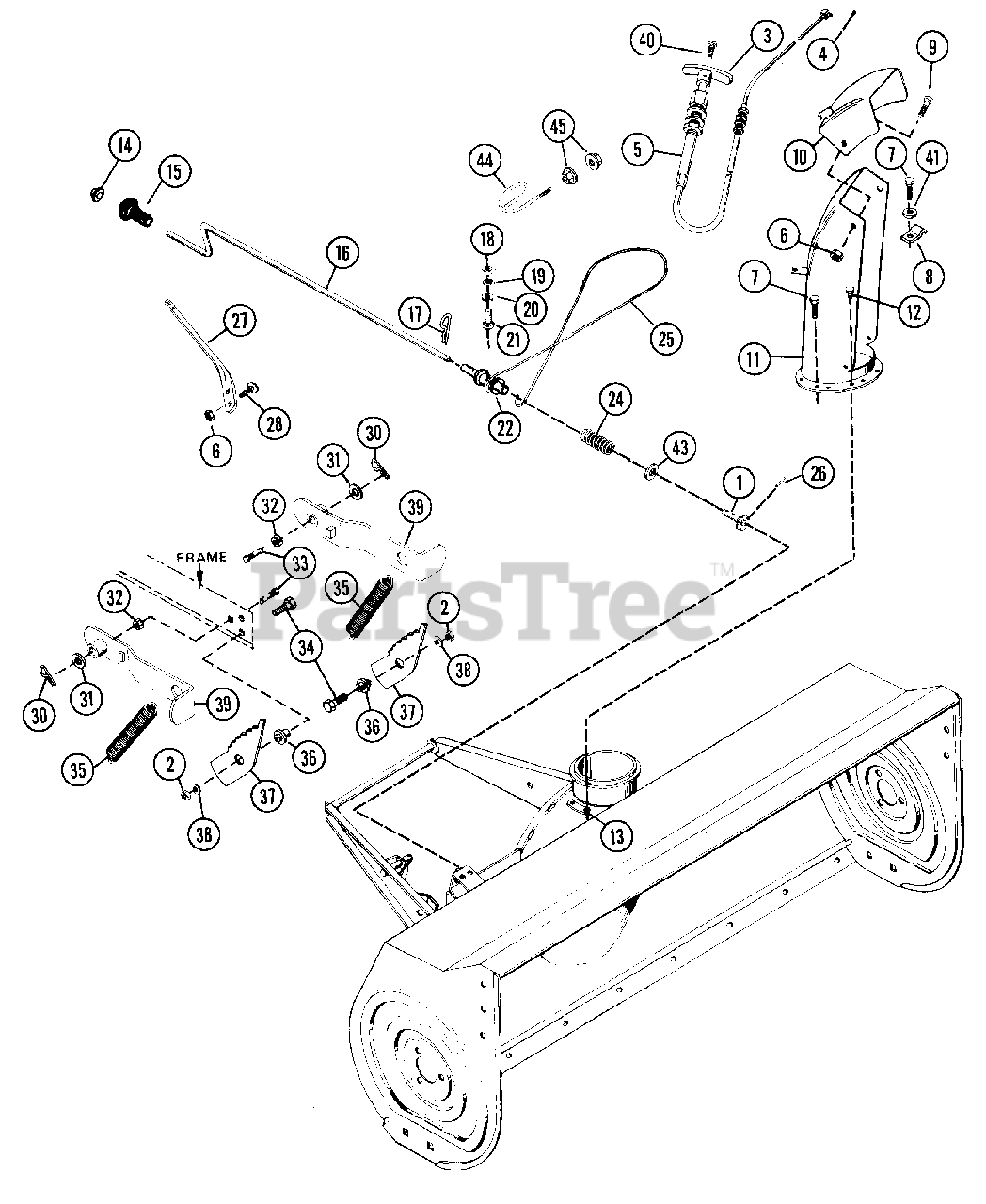

LIFT ASSIST, CHUTE CRANK AND DEFLECTOR Parts Diagram

  • Title
1

Gravely 036890

ARM, DISC
(Superseded to 03028700)

$54.99

$

Usually ships in 4-12 days

0

2

Gravely 413447

NUT, LOCK 5/16-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 036910

HANDLE, TEE
(Superseded to 07513700)

$47.99

$

Usually ships in 4-12 days

0

4

Gravely 121222

PIN, COTTER .09X.75
(Superseded to 06706900)

$0.99

$

In Stock, Qty 8

0

5

Gravely 036898

CABLE, CONTROL
(Superseded to 06943400)

$168.99

$

In Stock, only 1 left!

0

6

Gravely 413534

NUT, LOCK 3/8-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 036896

SCREW, TAPTITE 10-24X.75
(Superseded to 07406800)

$

$

Not available

8

Gravely 036897

CLAMP, CABLE
(Superseded to 06900300)

$

$

Not available

9

Gravely 180120

BOLT, HEX 3/8-16X.75
(Superseded to 05901702)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 036893

DEFLECTOR, CHUTE

$

$

Not available

11

Gravely 036892

CHUTE, DISCHARGE
(Superseded to 03028353)

$

$

Not available

12

Gravely 036895

SCREW, TAPTITE 10-24X.375
(Superseded to 07406700)

$

$

Not available

13

Gravely 036894

CLAMP, CHUTE
(Superseded to 52409200)

$29.99

$

In Stock, only 1 left!

0

14

Gravely 036903

CAP
(Superseded to 01019800)

$2.99

$

In Stock, Qty 14

0

15

Gravely 036902

KNOB
(Superseded to 07508300)

$13.99

$

In Stock, Qty 6

0

16

Gravely 039800

CRANK, CHUTE CONTROL
(Superseded to 03081900)

$154.99

$

Usually ships in 4-12 days

0

17

Gravely 036075

HAIR PIN, INTERNAL
(Superseded to 06701000)

$2.49

$

Usually ships in 4-12 days

0

18

Gravely 120375

NUT, HEX 1/4-20
(Superseded to 06500916)

$0.99

$

In Stock, Qty 13

0

19

Gravely 120214

WASHER, LOCK 5/16 REG.
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 422845

WASHER, FLAT .281X.625X.065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 126203

BOLT, 1/4-20X.625 RD HD SQ NK
(Superseded to 06213800)

$

$

Not available

22

Gravely 036884

SPOOL
(Superseded to 03028643)

$34.99

$

Usually ships in 4-12 days

0

24

Gravely 036891

SPRING, COMPRESSION
(Superseded to 08316900)

$

$

Not available

25

Gravely 036888

CABLE
(Superseded to 03187100)

$142.99

$

Usually ships in 4-12 days

0

26

Gravely 421202

PIN, SPRING .187X1.000
(Superseded to 05808800)

$2.99

$

Usually ships in 4-12 days

0

27

Gravely 039528

SUPPORT

$

$

Not available

28

Gravely 120915

BOLT, 3/8-16X1.00 RD HD SQ NK

$

$

Not available

30

Gravely 036185

HAIRPIN, INTERNAL 3/32
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

31

Gravely 446494

WASHER, FLAT .56X1.87X.109
(Superseded to 06431000)

$

$

Not available

32

Gravely 414074

NUT, LOCK 1/2-13
(Superseded to 06500827)

$3.99

$

In Stock, only 2 left!

0

33

Gravely 039798

STUD, WEIGHT
(Superseded to 01226800)

$

$

Not available

34

Gravely 180081

BOLT, HEX 5/16-18X1.25
(Superseded to 05901803)

$2.49

$

In Stock, Qty 11

0

35

Gravely 039536

SPRING, EXTENSION
(Superseded to 08317700)

$39.99

$

Usually ships in 4-12 days

0

36

Gravely 039799

SPACER
(Superseded to 03019100)

$34.99

$

In Stock, only 1 left!

0

37

Gravely 039524

SPRING ASSIST CONTROL
(Superseded to 03037951)

$22.99

$

Usually ships in 4-12 days

0

38

Gravely 120394

WASHER, FLAT .406X.812X.065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

39

Gravely 039523

ARM, SPRING
(Superseded to 03019200)

$161.99

$

Usually ships in 4-12 days

0

40

Gravely 036911

SCREW, MACHINE 10-32X.50
(Superseded to 06106500)

$2.49

$

Usually ships in 4-12 days

0

41

Gravely 446161

WASHER, FLAT .219X.438X.049
(Superseded to 06401123)

$0.99

$

Usually ships in 4-12 days

0

43

Gravely 038821

WASHER, .635/.645X1.005X.062
(Superseded to 06401117)

$0.99

$

In Stock, Qty 20+

0

44

Gravely 039801

CABLE SUPPORT
(Superseded to 03007900)

$

$

Not available

45

Gravely 424215

NUT, LOCK 1/4-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

NS

Gravely 033926

DECAL, DANGER HAND
(Superseded to 05350300)

$31.99

$

Usually ships in 4-12 days

0

NS

Gravely 036906

DECAL, CHUTE CRANK
(Superseded to 07878800)

$

$

Not available

NS

Gravely 039802

DECAL, CAUTION
(Superseded to 07799500)

$

$

Not available
