38733 (7173-H) - Gravely Lawn Tractor, 17hp Kohler, Hydro STEERING Parts Diagram

Lawn Tractor, 17hp Kohler, Hydro

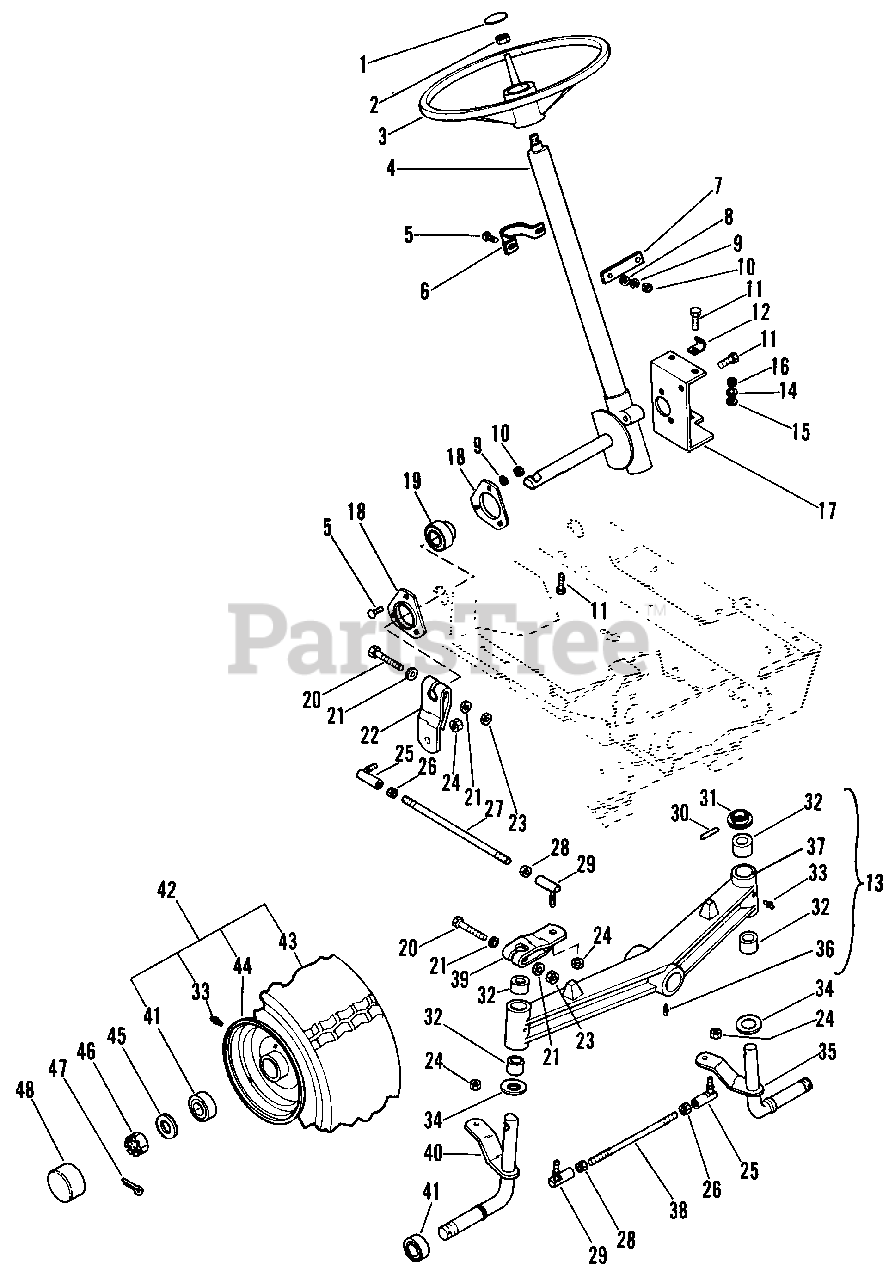

STEERING Parts Diagram

  • Title

1

Gravely 031426

Cap, Lens
(Superseded to 03489800)

$

$

Not available

2

Gravely 039643

Nut, Hex Jam Lock 5/8-18
(Superseded to 06530300)

$3.99

$

In Stock, only 3 left!

0

3

Gravely 031281

Steering Wheel
(Superseded to 03066600)

$

$

Not available

4

Gravely 039491

Steering Gear Assembly
(Superseded to 03080100)

$

$

Not available

5

Gravely 126358

Bolt, Carriage 5/16-18 x 1.0
(Superseded to 06200231)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 039644

Steering Column Clamp
(Superseded to 03103800)

$

$

Not available

7

Gravely 039645

Pad
(Superseded to 03104900)

$

$

Not available

8

Gravely 120394

Washer, Flat .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

9

Gravely 131099

Washer, Lock 3/8 SP Heavy
(Superseded to 06300120)

$3.49

$

In Stock, only 1 left!

0

10

Gravely 120376

Nut, Hex 5/16-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 10

0

11

Gravely 180122

Bolt, Hex 3/8-16 x 1.00
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 036518

Clip
(Superseded to 06909400)

$3.49

$

In Stock, Qty 8

0

13

Gravely 039517

Front Axle Assembly
(Superseded to 53101100)

$

$

Not available

14

Gravely 120382

Washer, Lock 3/8 Reg.
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 120388

Washer, Flat .438 x 1.000 x .083
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 413534

Nut, Lock 3/8-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 039480

Mounting Bracket
(Superseded to 03019700)

$

$

Not available

18

Gravely 039433

Bearing Flange
(Superseded to 03102000)

$21.99

$

Usually ships in 4-12 days

0

19

Gravely 039511

Bearing
(Superseded to 05410100)

$

$

Not available

20

Gravely 180185

Bolt, Hex 1/2-13 x 2.50
(Superseded to 05901712)

$3.99

$

In Stock, only 3 left!

0

21

Gravely 039646

Washer, .526/.546 x .937 x .104
(Superseded to 06413800)

$4.49

$

In Stock, only 1 left!

0

22

Gravely 039472

Steering Arm
(Superseded to 03013000)

$

$

Not available

23

Gravely 416464

Nut, Lock 1/2-13
(Superseded to 06528200)

$3.99

$

In Stock, only 3 left!

0

24

Gravely 415993

Nut, Lock 1/2-20
(Superseded to 21067600)

$

$

Not available

25

Gravely 039495

Joint, Ball
(Superseded to 03113000)

$59.99

$

Usually ships in 4-12 days

0

26

Gravely 039647

Nut, Hex Jam L.H. Thd. 1/2-20

$

$

Not available

27

Gravely 039505

Drag Link
(Superseded to 03192900)

$

$

Not available

28

Gravely 120371

Nut, Hex 1/2-20
(Superseded to 21050100)

$

$

Not available

29

Gravely 036162

Ball Joint
(Superseded to 03112900)

$32.99

$

Usually ships in 4-12 days

0

30

Gravely 455313

Pin, Spring .250 x 1.750
(Superseded to 05803700)

$0.99

$

In Stock, Qty 20+

0

31

Gravely 039471

Spindle Cap
(Superseded to 03008800)

$

$

Not available

32

Gravely 039648

Bushing, Sleeve 1 x 1-1/8 x 7/8
(Superseded to 05509100)

$13.99

$

In Stock, only 2 left!

0

33

Gravely 411027

Fitting, Lube 1/4-28
(Superseded to 07012600)

$

$

Not available

34

Gravely 039649

Plastic Washer
(Superseded to 07506700)

$

$

Not available

35

Gravely 039458

L.H. Spindle
(Superseded to 03004600)

$

$

Not available

36

Gravely 411032

Fitting, Lube 90 Degree
(Superseded to 07012800)

$4.99

$

In Stock, Qty 5

0

37

Gravely 039650

Front Axle
(Superseded to 53101100)

$

$

Not available

38

Gravely 039497

Tie Rod
(Superseded to 03116900)

$75.99

$

Usually ships in 4-12 days

0

39

Gravely 039473

Front Steering Arm
(Superseded to 03013100)

$

$

Not available

40

Gravely 039459

R.H. Spindle
(Superseded to 03004700)

$

$

Not available

41

Gravely 039651

Radial Bearing 1 I.D. x 2 O.D.
(Superseded to 05412100)

$

$

Not available

42

Gravely 039652

Front Tire Assembly
(Superseded to 07115300)

$

$

Not available

43

Gravely 039653

Tire, Turf Saver 8 x 6.5
(Superseded to 07102100)

$79.99

$

Usually ships in 4-12 days

0

44

Gravely 039654

Rim Assembly Tire Size 8 x 6.5
(Superseded to 07111000)

$

$

Not available

45

Gravely 039022

Washer, 1.000/1.031 x 1.500 x .125
(Superseded to 06400025)

$5.99

$

Usually ships in 4-12 days

0

46

Gravely 039655

Nut, Slotted Hex 1-14
(Superseded to 06513100)

$5.99

$

Usually ships in 4-12 days

0

47

Gravely 187988

Pin, Cotter .187 x 1.25
(Superseded to 06712700)

$1.99

$

In Stock, only 3 left!

0

48

Gravely 039516

Front Hub Cap
(Superseded to 07508900)

$18.99

$

Usually ships in 4-12 days

0
