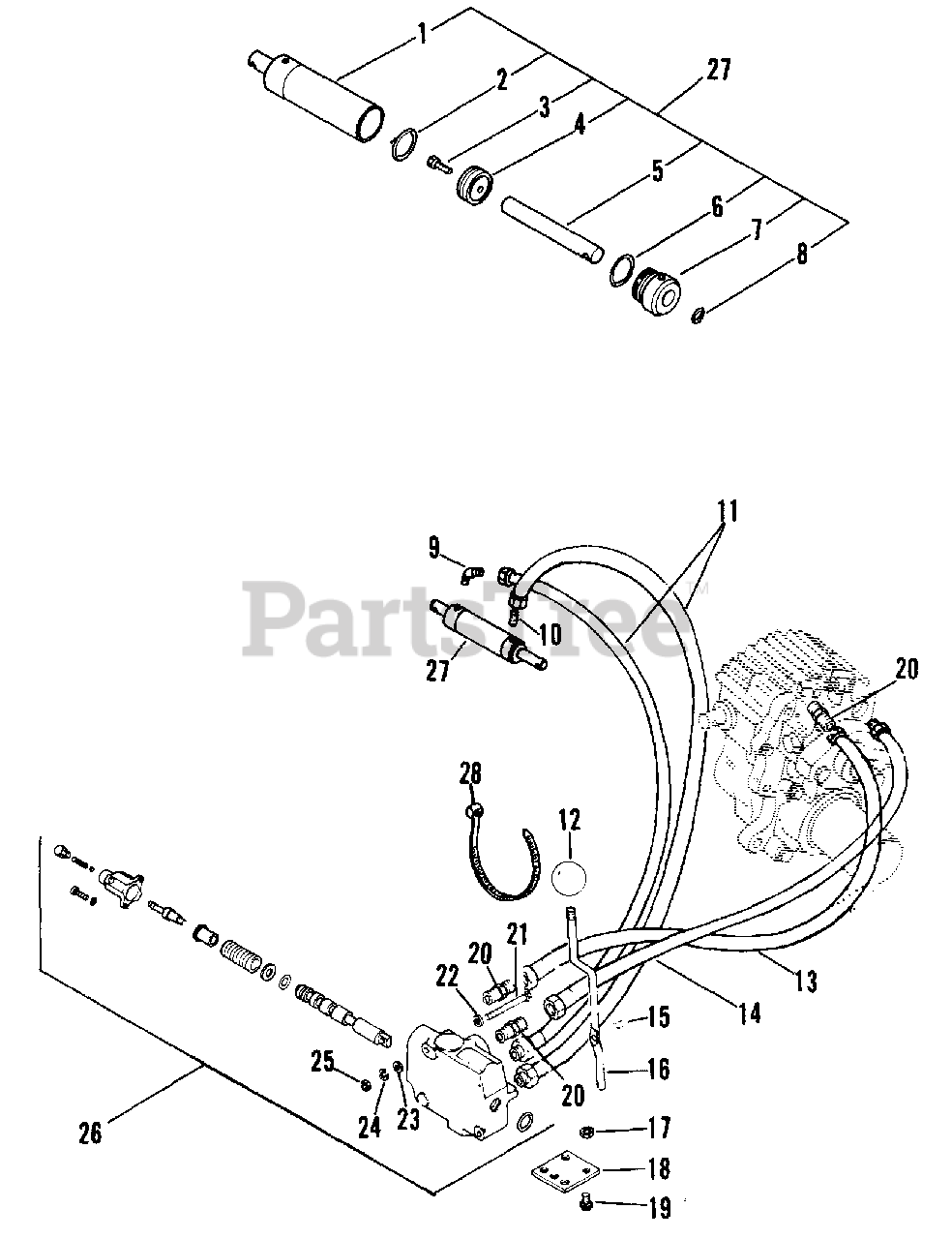

38733 (7173-H) - Gravely Lawn Tractor, 17hp Kohler, Hydro LIFT SYSTEM - HYDRAULIC Parts Diagram

Lawn Tractor, 17hp Kohler, Hydro

LIFT SYSTEM - HYDRAULIC Parts Diagram

  • Title

1

Gravely 039674

Cylinder
(Superseded to 03077100)

$

$

Not available

2

Gravely 039675

O-Ring, 1-5/8 Nom. I.D.
(Superseded to 53112500)

$19.99

$

Usually ships in 4-12 days

0

3

Gravely 039676

Screw, Cap 3/8-24 x 1.00 S.H.
(Superseded to 06114100)

$3.99

$

Usually ships in 4-12 days

0

4

Gravely 039677

Piston
(Superseded to 03028900)

$

$

Not available

5

Gravely 039678

Rod
(Superseded to 03029000)

$

$

Not available

6

Gravely 039679

O-Ring, 2-1/8 Nom. I.D.
(Superseded to 53112500)

$19.99

$

Usually ships in 4-12 days

0

7

Gravely 039680

Rod Cap
(Superseded to 03077100)

$

$

Not available

8

Gravely 039681

O-Ring, 1 Nom. I.D.
(Superseded to 53112500)

$19.99

$

Usually ships in 4-12 days

0

9

Gravely 039682

Adapter 9/16 to 1/4
(Superseded to 03106800)

$

$

Not available

10

Gravely 039683

Adapter
(Superseded to 03163400)

$

$

Not available

11

Gravely 039469

Hydraulic Hose
(Superseded to 53126200)

$135.99

$

Usually ships in 4-12 days

0

12

Gravely 039360

Knob, Steering Lock
(Superseded to 07505200)

$20.99

$

In Stock, only 1 left!

0

13

Gravely 039479

Hydraulic Hose
(Superseded to 03019500)

$77.99

$

In Stock, only 1 left!

0

14

Gravely 039470

Hydraulic Hose
(Superseded to 03008700)

$68.99

$

Usually ships in 4-12 days

0

15

Gravely 039684

Pin, Groove 1/4 x 3/4 Type B
(Superseded to 05805300)

$1.99

$

Usually ships in 4-12 days

0

16

Gravely 039498

Control Rod
(Superseded to 03118900)

$153.99

$

Usually ships in 4-12 days

0

17

Gravely 413447

Nut, Lock 5/16-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 039685

Pivot Bracket
(Superseded to 03040300)

$

$

Not available

19

Gravely 126211

Bolt, 5/16-18 x .625 Rd Hd Sq Nk
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

20

Gravely 039500

Connector
(Superseded to 07017500)

$11.99

$

In Stock, only 2 left!

0

21

Gravely 180046

Bolt, Hex 1/4-20 x 2.25
(Superseded to 05901636)

$2.49

$

Usually ships in 4-12 days

0

22

Gravely 422845

Washer, Flat .281 x .625 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

23

Gravely 039686

Washer, .245/.265 x .562 x .125
(Superseded to 06401120)

$1.49

$

Usually ships in 4-12 days

0

24

Gravely 120380

Washer, Lock 1/4 Reg.
(Superseded to 06401009)

$0.99

$

In Stock, Qty 20+

0

25

Gravely 120375

Nut, Hex 1/4-20
(Superseded to 06500916)

$0.99

$

In Stock, Qty 13

0

26

Gravely 039481

Hydraulic Control Valve
(Superseded to 53118600)

$

$

Not available

27

Gravely 039490

Cylinder Assembly
(Superseded to 03077100)

$

$

Not available

28

Gravely 010629

Tie, Cable
(Superseded to 07517300)

$

$

Not available
