38721 (724 QXE) - Toro 24" SnowMax Snow Thrower (SN: 409000000 - 411499999) Fuel System and Carburetor Assembly Parts Diagram

24" SnowMax Snow Thrower

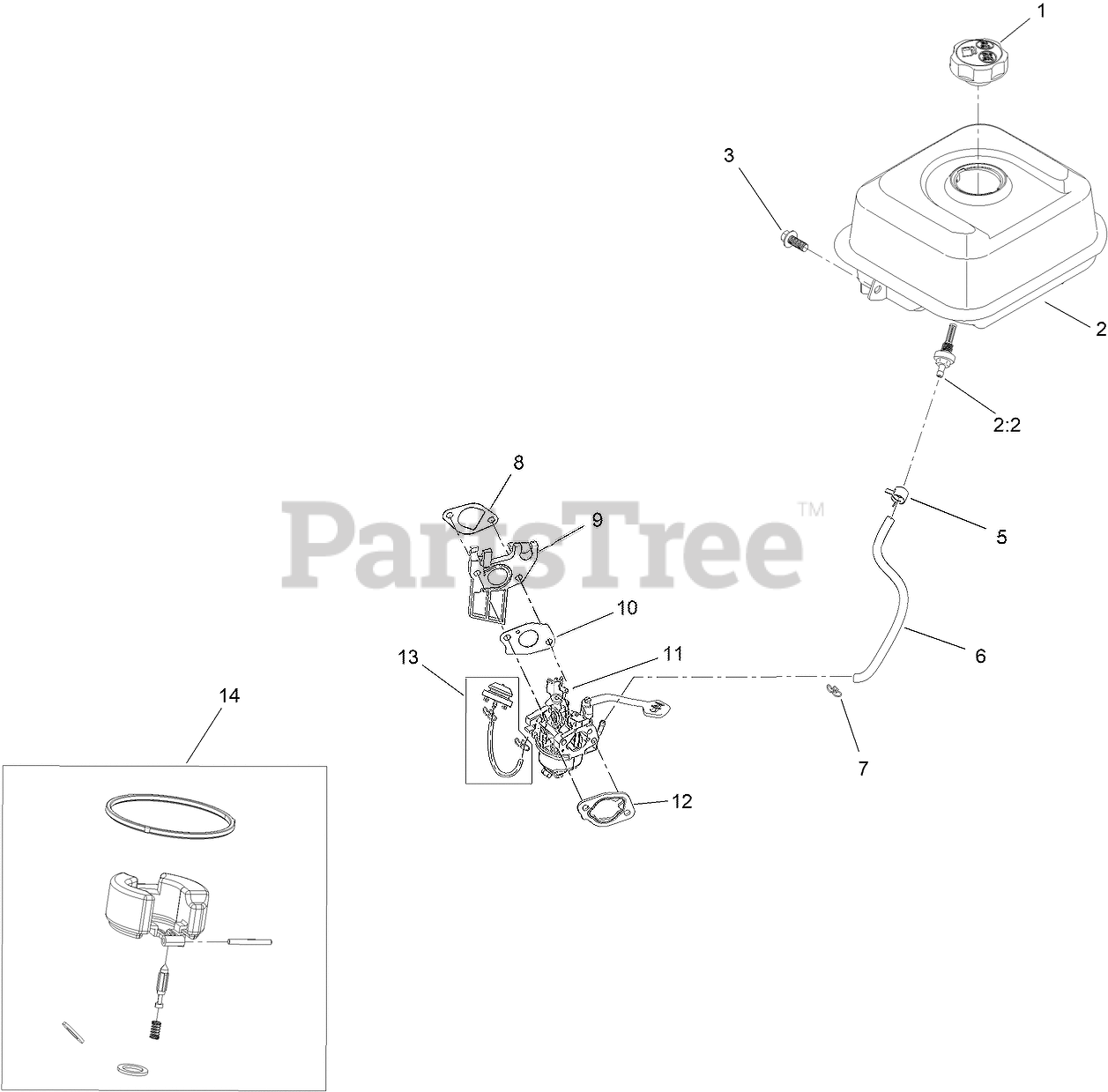

Fuel System and Carburetor Assembly Parts Diagram

  • Title

1

Toro 133-9823

CAP-FUEL

$19.99

$

In Stock, Qty 5

0

2

Toro 127-9497

FUEL TANK AND FILTER ASM

$100.99

$

Usually ships in 3-6 days

0

2:2

Toro 127-9065

FILTER-FUEL

$5.99

$

Usually ships in 3-6 days

0

3

Toro 121-0294

SCREW-HHF

$1.99

$

In Stock, Qty 11

0

5

Toro 127-9120

CLAMP-HOSE

$1.99

$

In Stock, only 4 left!

0

6

Toro 127-9403

HOSE-FUEL

$13.99

$

In Stock, only 1 left!

0

7

Toro 121-0087

CLAMP-HOSE

$1.49

$

In Stock, Qty 7

0

8

Toro 121-0076

GASKET-CARBURETOR

$1.99

$

In Stock, only 1 left!

0

9

Toro 121-0077

INSULATOR-CARBURETOR

$5.99

$

In Stock, only 2 left!

0

10

Toro 121-0078

GASKET-CARBURETOR

$1.99

$

In Stock, only 3 left!

0

11

Toro 139-0749

CARBURETOR ASM

$103.99

$

Usually ships in 3-6 days

0

12

Toro 121-0080

GASKET-CARBURETOR

$5.99

$

In Stock, only 2 left!

0

13

Toro 127-9079

PRIMER KIT

$29.99

$

In Stock, Qty 5

0

14

Toro 127-9394

INTERNAL CARB SERVICE KIT

$21.99

$

In Stock, only 2 left!

0

99

Toro 144-0966

HIGH ALTITUDE KIT

Note: Not illustrated

$12.99

$

Usually ships in 3-6 days

0
