38721 (724 QXE) - Toro 24" SnowMax Snow Thrower (SN: 409000000 - 411499999) Engine Assembly Parts Diagram

24" SnowMax Snow Thrower

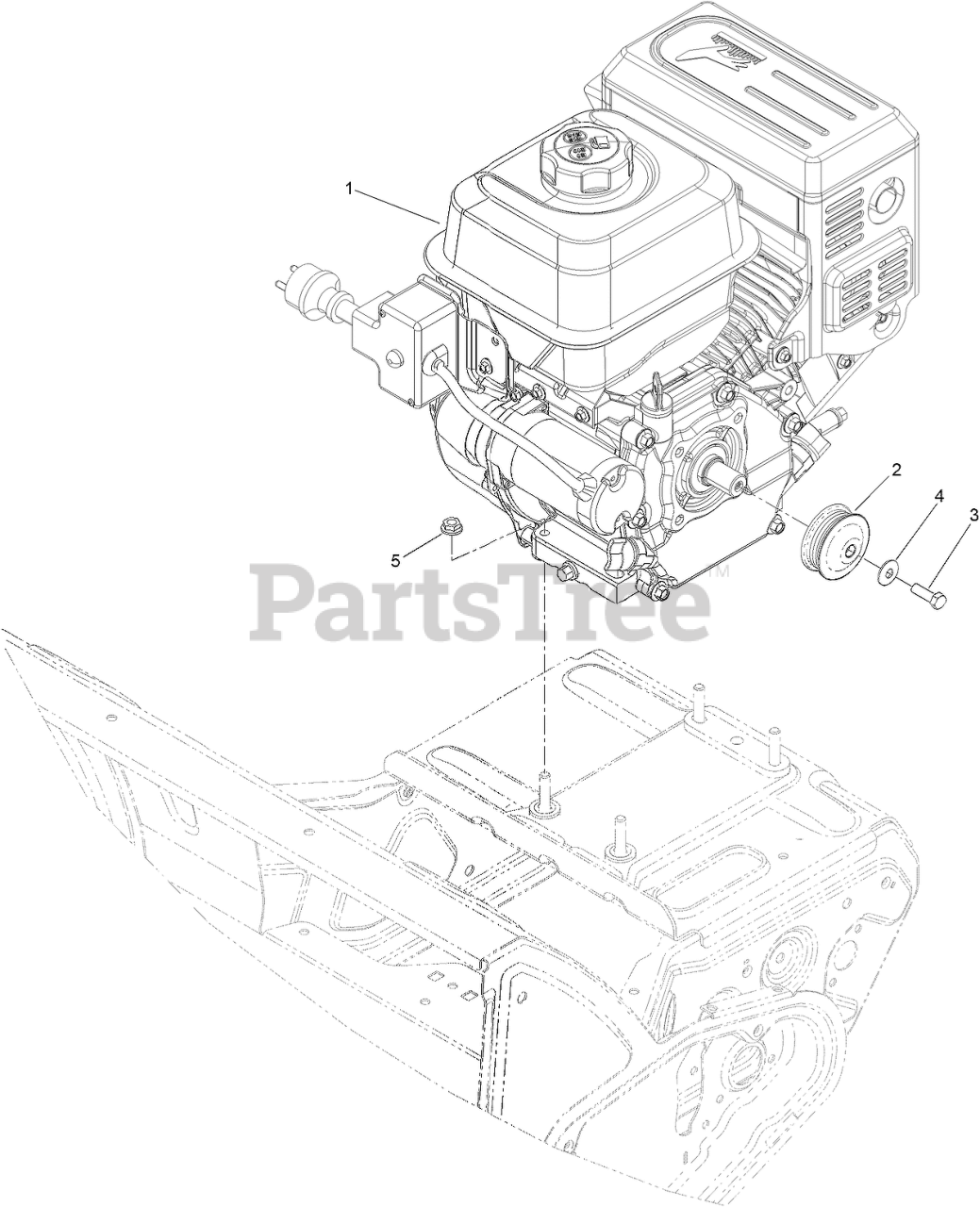

Engine Assembly Parts Diagram

  • Title
1

Toro 144-0980

ENGINE-G210FDS-2

$775.99

$

Usually ships in 3-6 days

0

2

Toro 131-5908

PULLEY-ENGINE

$26.99

$

Usually ships in 3-6 days

0

3

Toro 137-3026

SCREW-HH, LOCK

$5.49

$

Usually ships in 3-6 days

0

4

Toro 3290-456

WASHER-BELLEVILLE

$2.99

$

In Stock, Qty 20+

0

5

Toro 137-3039

NUT-HF

$1.49

$

Usually ships in 3-6 days

0
