38721 (724 QXE) - Toro 24" SnowMax Snow Thrower (SN: 400000000 - 408999999) Lever Chute Control Assembly Parts Diagram

24" SnowMax Snow Thrower

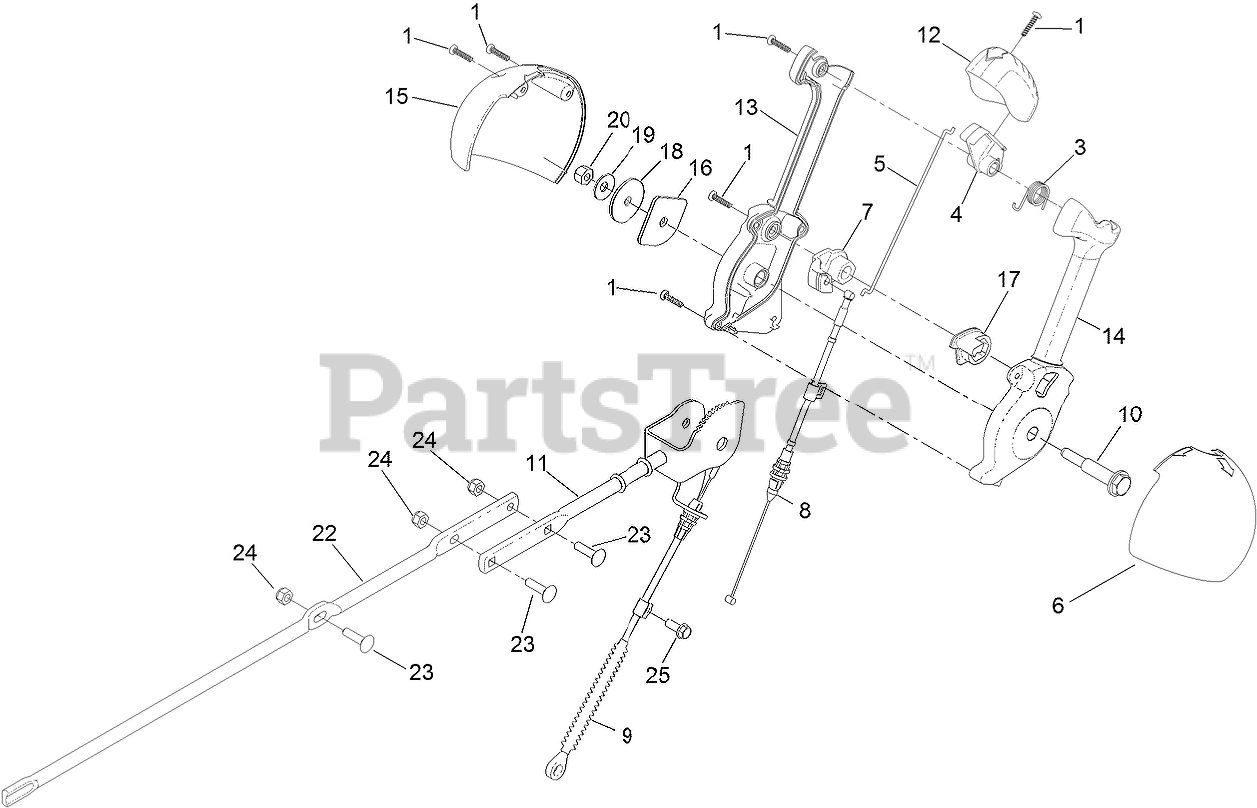

Lever Chute Control Assembly Parts Diagram

  • Title

1

Toro 94-4496

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

3

Toro 105-9982

SPRING-TORSION

$3.49

$

In Stock, Qty 12

0

4

Toro 105-9984

TRIGGER-LATCH

$7.99

$

In Stock, only 2 left!

0

5

Toro 136-7127

LINK-LATCH

$2.99

$

In Stock, only 1 left!

0

6

Toro 105-9986

COVER-LEVER, CHUTE (LH)

$9.49

$

In Stock, only 1 left!

0

7

Toro 105-9988

LEVER-CABLE, DEFLECTOR

$9.49

$

In Stock, Qty 9

0

8

Toro 130-9614

CABLE-RELEASE, CHUTE

$25.99

$

In Stock, only 1 left!

0

9

Toro 130-9613

CABLE-CONTROL, DEFLECTOR

$38.99

$

Usually ships in 3-6 days

0

10

Toro 136-7190

SCREW-SHOULDER

$2.99

$

Usually ships in 3-6 days

0

11

Toro 136-7128

CHUTE CONTROL ROD

$19.99

$

In Stock, only 2 left!

0

12

Toro 106-7280

CAP-LEVER

$7.99

$

In Stock, only 3 left!

0

13

Toro 106-7281

LEVER-CONTROL, CHUTE (RH)

$14.99

$

In Stock, Qty 6

0

14

Toro 106-7282

LEVER-CONTROL, CHUTE (LH)

$14.99

$

In Stock, Qty 7

0

15

Toro 106-7292

COVER-LEVER, CHUTE (RH)

$9.49

$

In Stock, only 1 left!

0

16

Toro 136-7129

PLATE-FRICTION

$5.99

$

In Stock, only 1 left!

0

17

Toro 106-7310

PAWL-LATCH

$11.99

$

In Stock, only 2 left!

0

18

Toro 107-3002

WASHER-NYLON

$2.99

$

In Stock, only 4 left!

0

19

Toro 3290-456

WASHER-BELLEVILLE

$2.99

$

In Stock, Qty 20+

0

20

Toro 119-4038

NUT-HEX

$2.99

$

In Stock, Qty 20+

0

22

Toro 120-2348

ROD-CHUTE

$25.99

$

In Stock, only 2 left!

0

23

Toro 137-3056

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

24

Toro 137-3094

NUT-HEX

$1.49

$

In Stock, Qty 20+

0

25

Toro 32144-85

SCREW-HWH

$1.99

$

In Stock, Qty 20+

0
