38720 (724 ZXR) - Toro 24" SnowMax Snow Thrower (SN: 409000000 - 999999999) Handle and Control Assembly Parts Diagram

24" SnowMax Snow Thrower

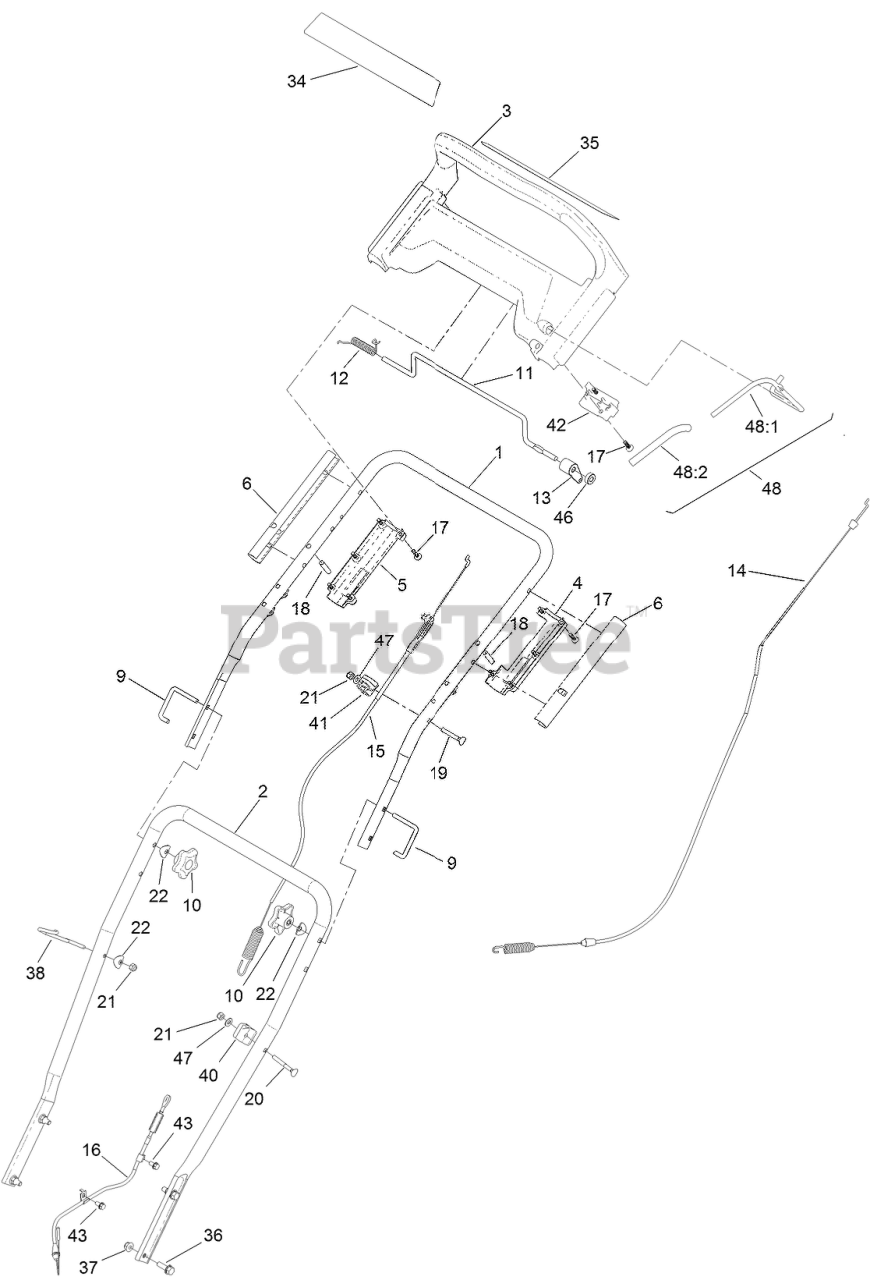

Handle and Control Assembly Parts Diagram

  • Title
1

Toro 120-2333-03

HANDLE-UPPER

$68.99

$

Usually ships in 3-6 days

0

2

Toro 120-2334-03

HANDLE-LOWER

$72.99

$

Usually ships in 3-6 days

0

3

Toro 131-5921

HANDLE

$

$

Not available

4

Toro 120-2336

HANDLE-BOTTOM, LH

$4.99

$

Usually ships in 3-6 days

0

5

Toro 131-1770

HANDLE-BOTTOM, RH

$4.99

$

Usually ships in 3-6 days

0

6

Toro 120-2343

SLEEVE HANDLE

$4.99

$

Usually ships in 3-6 days

0

9

Toro 136-7130

LOCK-HANDLE

$5.49

$

In Stock, Qty 7

0

10

Toro 106-4161

KNOB-HANDLE

$5.49

$

In Stock, Qty 15

0

11

Toro 136-7150

BAR-CONTROL, TRACTION

$17.99

$

In Stock, only 1 left!

0

12

Toro 136-7166

SPRING-TORSION

$3.49

$

In Stock, only 4 left!

0

13

Toro 131-5917

LEVER-TRACTION

$3.99

$

Usually ships in 3-6 days

0

14

Toro 131-5924

CABLE-TRANSMISSION

$21.99

$

In Stock, Qty 10

0

15

Toro 120-2338

CABLE-ROTOR, UPPER

$25.99

$

In Stock, only 1 left!

0

16

Toro 131-1753

CABLE-ROTOR, LOWER

$25.99

$

Usually ships in 3-6 days

0

17

$1.49

$

Usually ships in 3-6 days

0

18

Toro 131-1771

PIN-DOWEL

$0.99

$

Usually ships in 3-6 days

0

19

Toro 137-3109

BOLT-CARR

$1.99

$

Usually ships in 3-6 days

0

20

Toro 137-3108

SCREW-HANDLE

$4.49

$

Usually ships in 3-6 days

0

21

Toro 137-3094

NUT-HEX

$1.49

$

In Stock, Qty 14

0

22

Toro 137-3009

WASHER-CUP

$0.99

$

In Stock, Qty 10

0

34

Toro 131-5937

DECAL-DISPLAY

$20.99

$

Usually ships in 3-6 days

0

35

Toro 131-1785

DECAL-CONTROL, PANEL

$4.49

$

In Stock, only 1 left!

0

36

Toro 137-3067

SCREW-HHF

$1.99

$

Usually ships in 3-6 days

0

37

Toro 119-4041

NUT-HF

$1.49

$

In Stock, Qty 20+

0

38

Toro 136-7147

GUIDE-ROPE

$2.99

$

Usually ships in 3-6 days

0

40

Toro 92-7729

ANCHOR-CABLE, UPPER

$4.99

$

In Stock, only 4 left!

0

41

Toro 131-5903

CABLE-GUIDE

$3.99

$

Usually ships in 3-6 days

0

42

Toro 131-5901

BAIL-MOUNT

$3.99

$

Usually ships in 3-6 days

0

43

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

46

Toro 130-2343

SPACER

$1.49

$

In Stock, Qty 20+

0

47

Toro 137-3072

WASHER-PLAIN

$0.99

$

Usually ships in 3-6 days

0

48

Toro 131-5943

BAIL ASM

$17.99

$

Usually ships in 3-6 days

0

48:1

BAIL-AUGER

Note: Not serviced separately

$

$

Not available

48:2

Toro 131-5902

COVER-BAIL

$2.99

$

Usually ships in 3-6 days

0
