38712 (824 QXE) - Toro 24" SnowMax Snow Thrower (SN: 400000000 - 999999999) BLOWER HOUSING AND SHROUDS ASSEMBLY Parts Diagram

24" SnowMax Snow Thrower

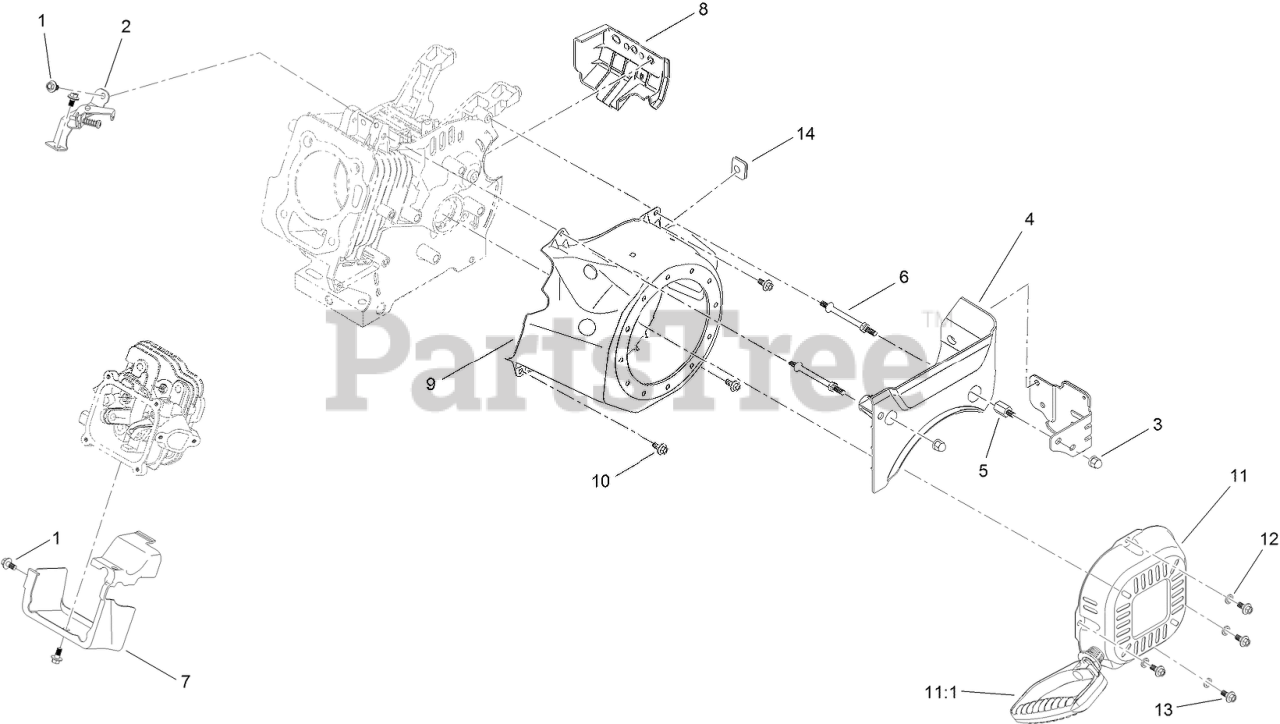

BLOWER HOUSING AND SHROUDS ASSEMBLY Parts Diagram

  • Title

1

Toro 121-0116

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0

2

Toro 133-1520

THROTTLE CONTROL ASM

$13.99

$

Usually ships in 3-6 days

0

3

Toro 127-9383

NUT-ACORN

$3.49

$

Usually ships in 3-6 days

0

4

Toro 133-1544

PANEL-FRONT

$20.99

$

Usually ships in 3-6 days

0

5

Toro 133-1545

SPACER-STUD, THREADED

$10.99

$

Usually ships in 3-6 days

0

6

Toro 127-9110

STUD-MOUNT

$5.99

$

Usually ships in 3-6 days

0

7

Toro 133-1530

SHROUD-HEAD

$34.99

$

Usually ships in 3-6 days

0

8

Toro 133-1543

PANEL-SIDE, ENGINE

$19.99

$

Usually ships in 3-6 days

0

9

Toro 133-1528

SHROUD-FLYWHEEL

$93.99

$

Usually ships in 3-6 days

0

10

Toro 121-0294

SCREW-HHF

$1.99

$

In Stock, only 4 left!

0

11

Toro 133-1529

RECOIL ASM

$74.99

$

Usually ships in 3-6 days

0

11:1

Toro 121-0287

HANDLE-RECOIL

$13.99

$

In Stock, only 1 left!

0

12

Toro 127-9380

WASHER-PLAIN

$1.99

$

Usually ships in 3-6 days

0

13

Toro 127-9031

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0

14

Toro 133-1548

GROMMET-RUBBER

$1.99

$

Usually ships in 3-6 days

0
