38712 (824 QXE) - Toro 24" SnowMax Snow Thrower (SN: 316000001 - 316999999) (2016) FUEL SYSTEM AND CARBURETOR ASSEMBLY Parts Diagram

24" SnowMax Snow Thrower

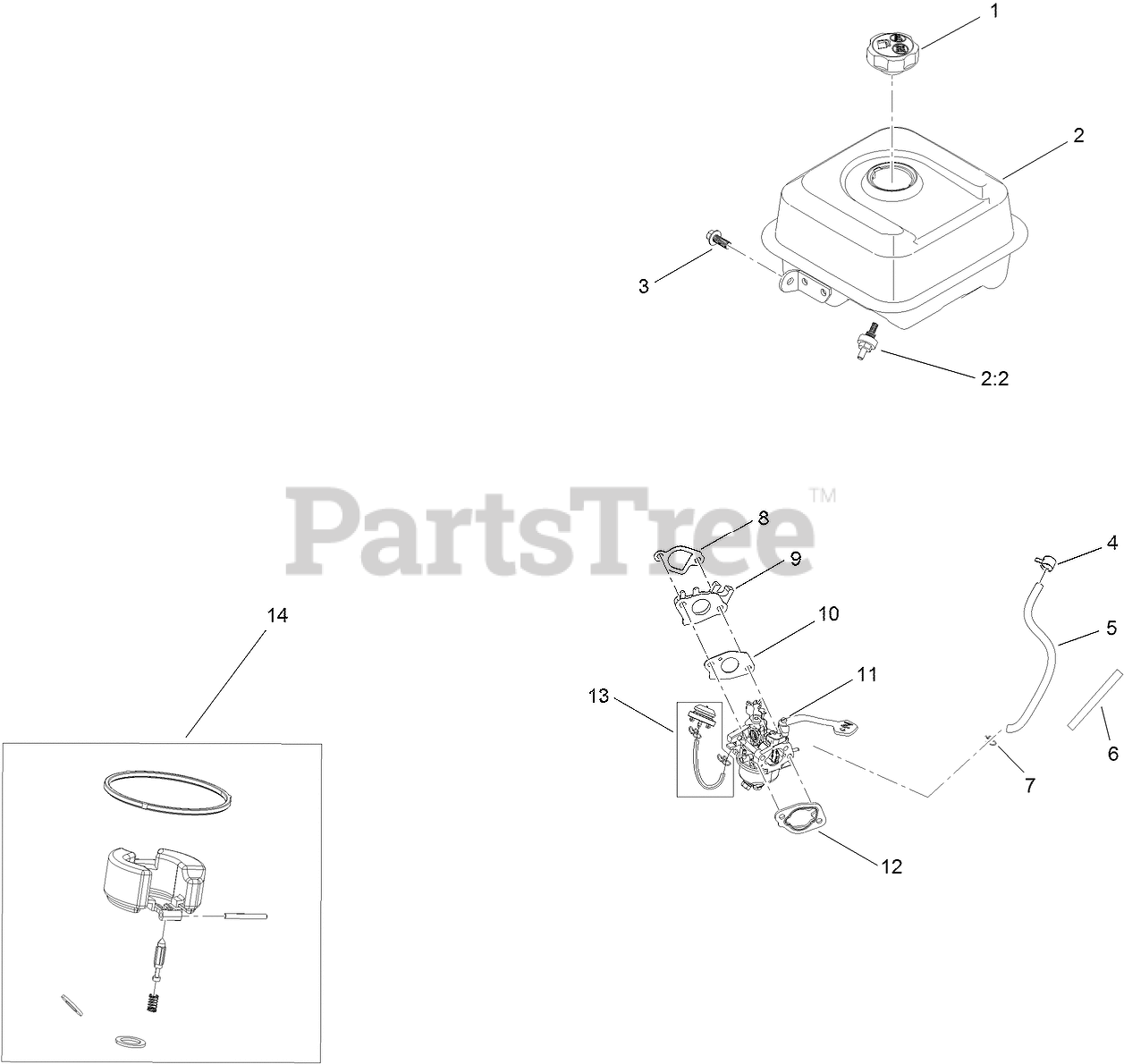

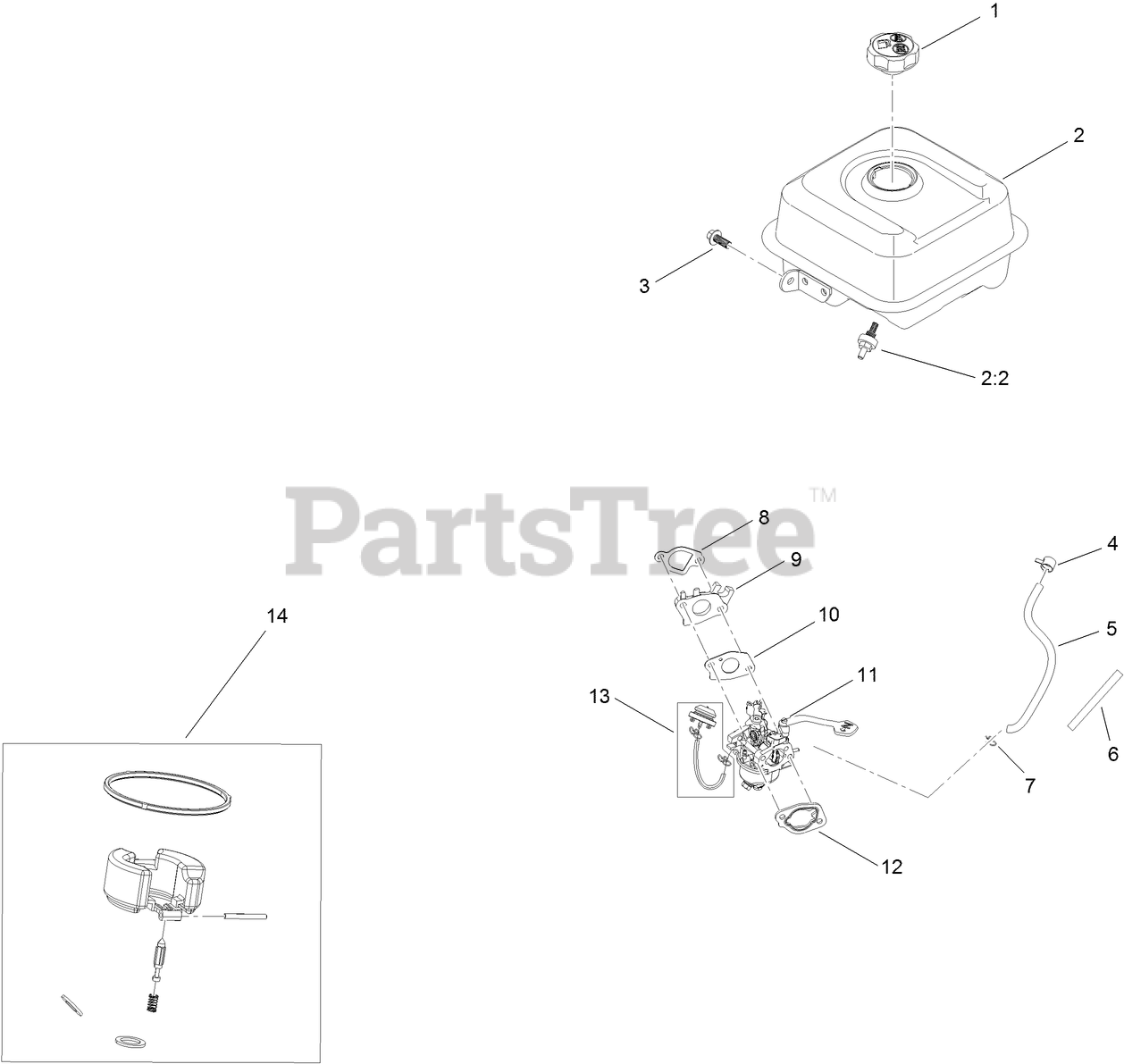

FUEL SYSTEM AND CARBURETOR ASSEMBLY Parts Diagram

  • Title

1

Toro 127-9365

CAP-FUEL (PHASE 3)
(Superseded to 133-9823)

$19.99

$

In Stock, Qty 5

0

2

Toro 133-1553

FUEL TANK AND FILTER ASM

$100.99

$

Usually ships in 3-6 days

0

2:2

Toro 127-9065

FILTER-FUEL

$5.99

$

Usually ships in 3-6 days

0

3

Toro 121-0294

SCREW-HHF

$1.99

$

In Stock, Qty 8

0

4

Toro 127-9120

CLAMP-HOSE

$1.99

$

In Stock, Qty 5

0

5

Toro 133-1537

HOSE-FUEL

$13.99

$

Usually ships in 3-6 days

0

6

Toro 133-1538

SLEEVE-ABRASION

$2.99

$

Usually ships in 3-6 days

0

7

Toro 121-0087

CLAMP-HOSE

$1.49

$

In Stock, Qty 8

0

8

Toro 133-1531

GASKET-CARBURETOR

$1.99

$

In Stock, Qty 20+

0

9

Toro 133-1532

INSULATOR-CARBURETOR

$5.99

$

In Stock, Qty 6

0

10

Toro 133-1533

GASKET-CARBURETOR

$1.99

$

In Stock, Qty 19

0

11

Toro 133-1534

CARBURETOR ASM

$90.99

$

Usually ships in 3-6 days

0

12

Toro 121-0080

GASKET-CARBURETOR

$5.99

$

In Stock, only 2 left!

0

13

Toro 127-9079

PRIMER KIT

$29.99

$

In Stock, Qty 6

0

14

Toro 127-9395

INTERNAL CARB SERVICE KIT

$23.99

$

In Stock, only 1 left!

0

99

Toro 127-9302

HIGH ALTITUDE KIT - G250
(Superseded to 133-9937)

Note: Not illustrated

$13.99

$

Usually ships in 3-6 days

0
