38711x96A - Briggs & Stratton 38" Lawn Tractor (1998) (Servistar) Mower Housing Suspension Parts Diagram

38" Lawn Tractor

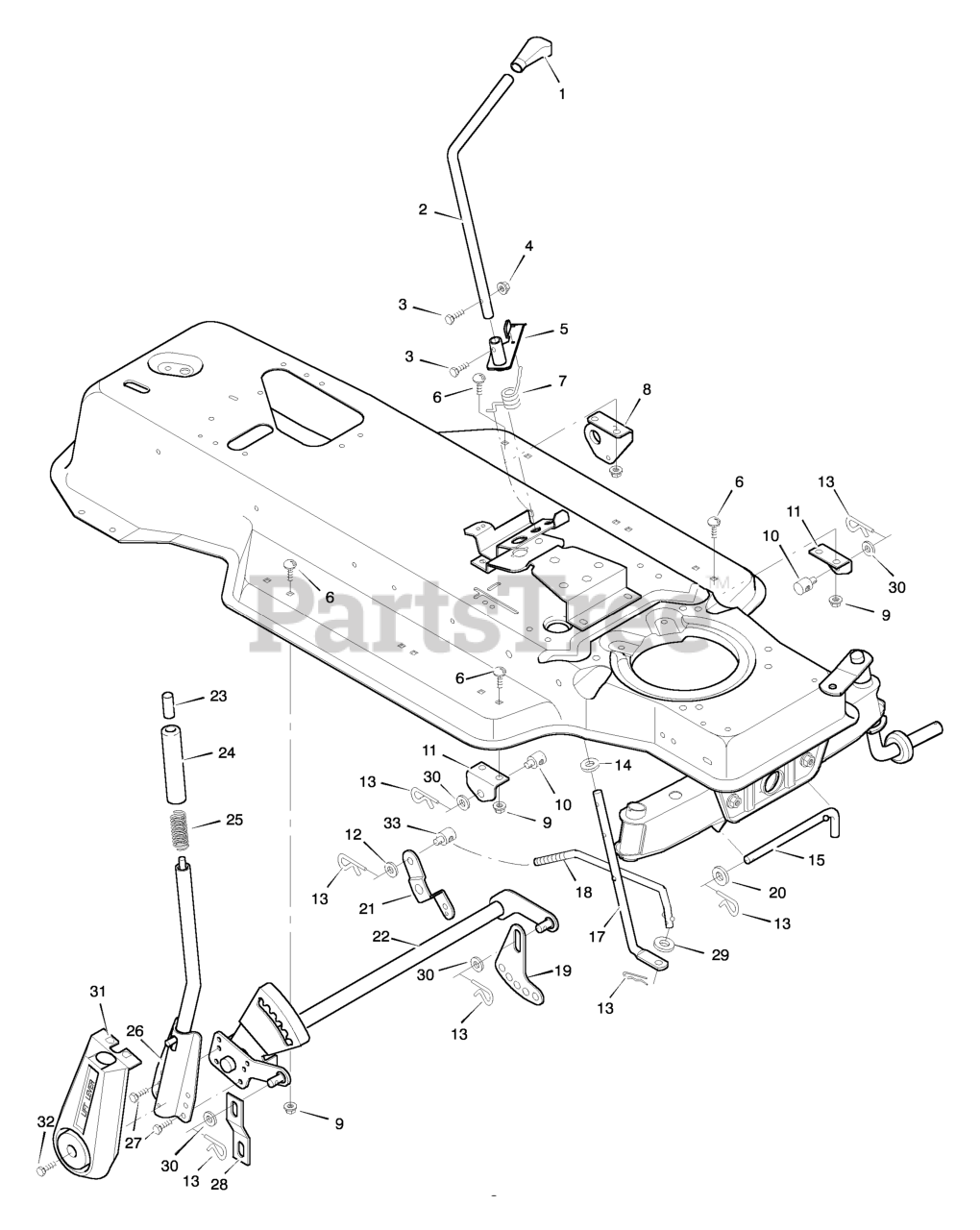

Mower Housing Suspension Parts Diagram

  • Title
1

Murray 092698MA

Grip
(Superseded to 1753233YP)

$6.99

$

In Stock, Qty 20+

0

2

Murray 091781 Z

Control, Blade Rotation

$

$

Currently unavailable

3

Murray 0025X3MA

Screw, Hex

$4.99

$

Usually ships in 2-12 days

0

4

Murray 015X67MA

Locknut, Hex
(Superseded to 703251)

$4.99

$

In Stock, Qty 20+

0

5

Murray 091917E701MA

Lever Assembly, Switch

$16.99

$

Usually ships in 2-12 days

0

6

Murray 002X53MA

Bolt, Carriage
(Superseded to 703159)

$3.99

$

In Stock, Qty 12

0

7

Murray 166X32MA

Spring, Torsion

$18.99

$

Usually ships in 2-12 days

0

8

Murray 092066E701MA

Bracket, Rear Hanger

$12.99

$

Usually ships in 2-12 days

0

9

Murray 015X79MA

Nut, Flange
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

10

Murray 092131

Nut, Adjusting

$

$

Not available

11

Murray 092133SEMA

Bracket, Adjuster Rod

$36.99

$

Usually ships in 2-12 days

0

12

$4.49

$

Usually ships in 2-12 days

0

13

Murray 0031X4MA

Pin, Hair
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

14

Murray 17X122

Washer

$6.49

$

Usually ships in 2-12 days

0

15

Murray 090827 Z

Pin, Pull

$

$

Currently unavailable

17

Murray 091787E701MA

Lever, Lower Blade Control

$26.99

$

Usually ships in 2-12 days

0

18

Murray 091795 Z

Rod, Blade Control

$

$

Currently unavailable

19

Murray 91741E700

Plate, Adjuster

$

$

Currently unavailable

20

$4.99

$

In Stock, only 2 left!

0

21

Murray 092033SEMA

Bracket, Pivot

$42.99

$

Usually ships in 2-12 days

0

22

Murray 092065E701MA

Lifter Assembly

$145.99

$

Usually ships in 2-12 days

0

23

Murray 092572MA

Button, Push

$24.99

$

Usually ships in 2-12 days

0

24

$4.49

$

Usually ships in 2-12 days

0

25

Murray 164X21MA

Spring, Compression

$4.99

$

Usually ships in 2-12 days

0

26

Murray 091823SEMA

Handle Assembly

$63.99

$

Usually ships in 2-12 days

0

27

$4.49

$

In Stock, only 2 left!

0

28

Murray 092064E701MA

Link, Suspension

$5.99

$

Usually ships in 2-12 days

0

29

Murray 017X47MA

Washer
(Superseded to 704015)

$4.49

$

Usually ships in 2-12 days

0

30

$

$

Currently unavailable

31

Murray 092157MA

Cover, Lift Lever

Note: (Optional)

$5.99

$

Usually ships in 2-12 days

0

32

$4.99

$

In Stock, only 1 left!

0

33

Murray 021920ZMA

Nut, Adjusting

$17.99

$

Usually ships in 2-12 days

0
