38711x66A - Murray 38" Lawn Tractor (1998) Chassis & Hood Parts Diagram

38" Lawn Tractor

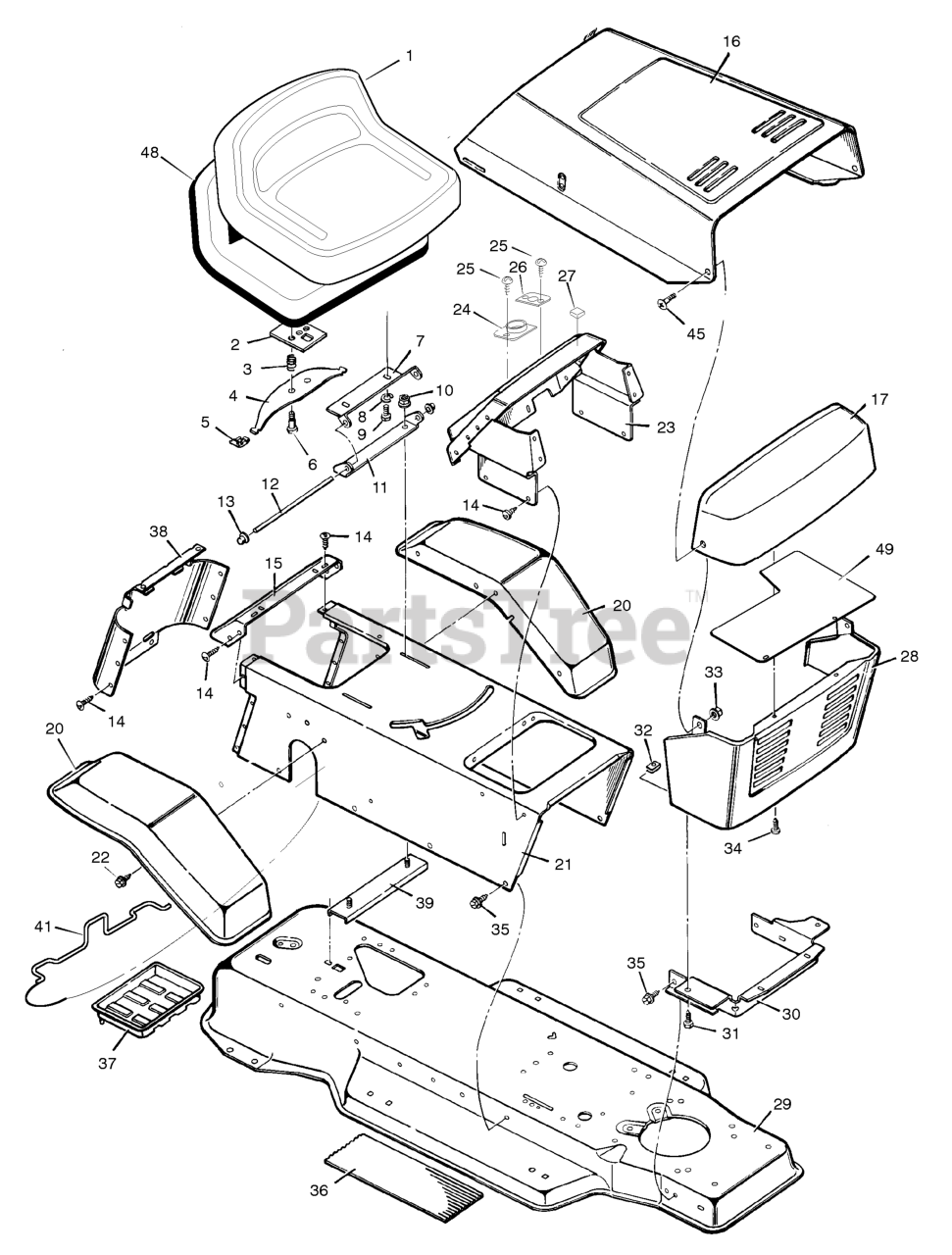

Chassis & Hood Parts Diagram

  • Title

$329.99

$

Usually ships in 2-12 days

0

2

Murray 091963 Z

Plate Assembly, Switch

$

$

Currently unavailable

3

Murray 164X26MA

Spring, Compression

$3.49

$

Usually ships in 2-12 days

0

4

Murray 091964MA

Spring, Seat

$

$

Not available

5

Murray 091822MA

Glide, Spring

$8.49

$

Usually ships in 2-12 days

0

6

Murray 009X38MA

Bolt, Shoulder

$3.99

$

Usually ships in 2-12 days

0

7

Murray 092334E700

Support, Seat

$

$

Currently unavailable

8

Murray 018X16MA

Lockwasher

$3.99

$

Usually ships in 2-12 days

0

9

Murray 001X45MA

Bolt, Hex
(Superseded to 703822)

$4.49

$

In Stock, only 1 left!

0

10

Murray 015X88MA

Locknut, Flange
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

11

Murray 091729E701

Bracket, Pivot

$

$

Currently unavailable

12

Murray 091730 Z

Rod, Pivot

$

$

Currently unavailable

13

Murray 028X23MA

Cap, Push On
(Superseded to 703948)

$4.49

$

In Stock, Qty 20+

0

14

Murray 26X270

Screw, Tap
(Superseded to 26X270MA)

$4.49

$

In Stock, Qty 13

0

15

Murray 91724E245

Fender, Apron

Note: (Included with Ref. No. 21)

$

$

Currently unavailable

$

$

Currently unavailable

17

Murray 094112

Grille, Upper

$

$

Currently unavailable

20

$

$

Currently unavailable

21

Murray 092727E245

Console Assembly

$

$

Currently unavailable

22

$4.99

$

In Stock, only 1 left!

0

23

Murray 93174E245

Dash Panel

$

$

Currently unavailable

24

Murray 093135MA

Bearing, Steering

$2.49

$

Usually ships in 2-12 days

0

25

$3.99

$

Usually ships in 2-12 days

0

26

Murray 093155

Bearing

$

$

Currently unavailable

27

Murray 092444

Bumper

$

$

Currently unavailable

28

Murray 091722F200

Grill, Lower

$

$

Currently unavailable

29

Murray 092815E245

Frame Assembly

$

$

Currently unavailable

30

Murray 091723E700

Support, Grill

$

$

Currently unavailable

31

$3.99

$

Usually ships in 2-12 days

0

32

$4.99

$

Usually ships in 2-12 days

0

33

Murray 015X84MA

Locknut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

34

Murray 0193X1MA

Fastener, Plastic

$3.99

$

In Stock, only 1 left!

0

35

$

$

Not available

36

$11.99

$

Usually ships in 2-12 days

0

37

Murray 091895MA

Tray, Battery

$

$

Not available

38

Murray 092443E700

Cap, Console

Note: (Included with Ref. No. 21)

$39.99

$

Usually ships in 2-12 days

0

39

Murray 091857E701

Channel Assembly

$

$

Currently unavailable

41

Murray 92725E700

Clamp, Battery

$

$

Currently unavailable

45

Murray 009X58MA

Bolt, Shoulder
(Superseded to 702315)

$6.99

$

Usually ships in 2-12 days

0

48

Murray 092357

Pan, Seat (with foam)

$

$

Currently unavailable

49

Murray 094334

Shield, Heat

$

$

Currently unavailable

--

Murray F-98718

Instruction Book

$

$

Currently unavailable

--

Murray F-98718

Instruction Book

$

$

Currently unavailable

--

Murray F-98720

Repair Parts Book

$

$

Currently unavailable

--

Murray 44X7730

Decal, Hood

$

$

Currently unavailable

--

Murray 44X6815MA

Decal, Top Console-Warning

$9.99

$

Usually ships in 2-12 days

0

--

Murray 44X1459

Decal, Shift Pattern

$2.49

$

Usually ships in 2-12 days

0
