38711 (724 QXE) - Toro 24" SnowMax Snow Thrower (SN: 400000000 - 999999999) TRANSMISSION, DRIVE AND TIRE ASSEMBLY Parts Diagram

24" SnowMax Snow Thrower

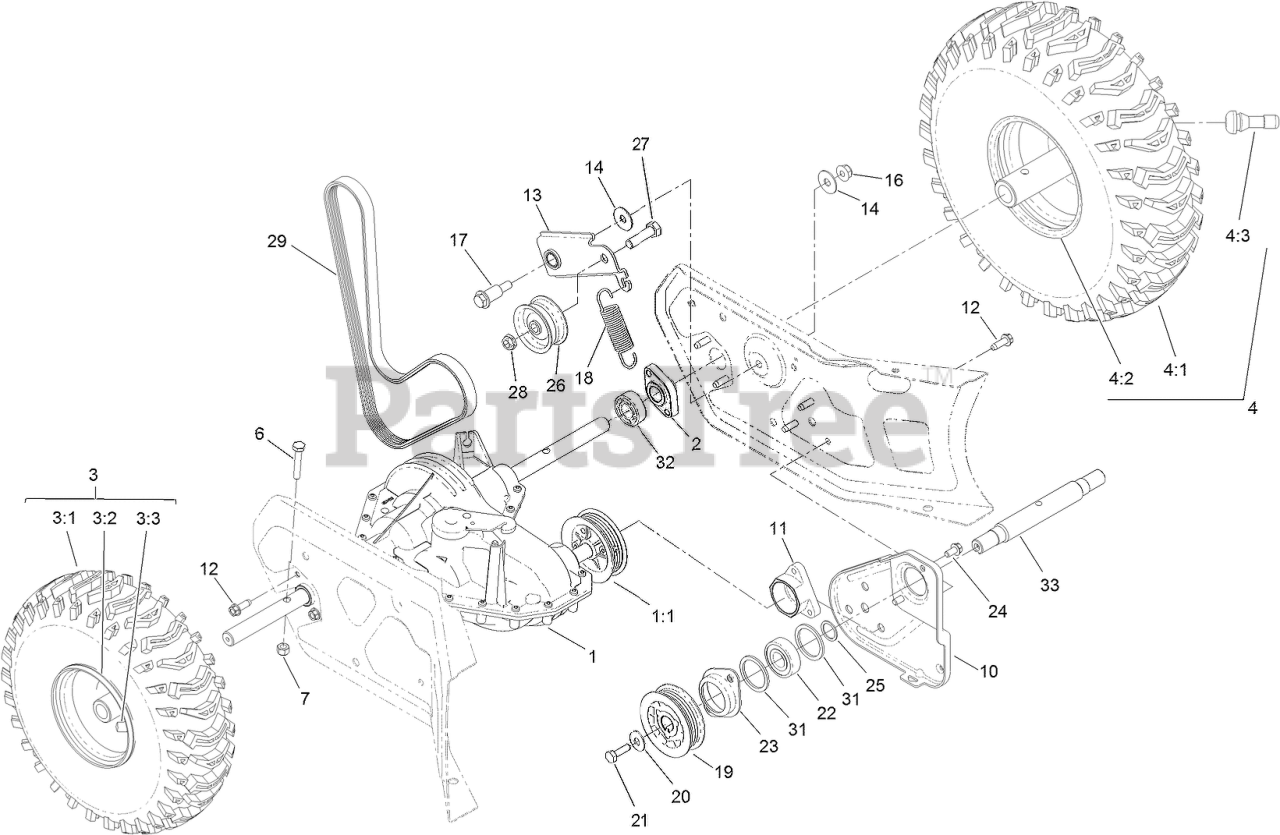

TRANSMISSION, DRIVE AND TIRE ASSEMBLY Parts Diagram

  • Title
1

Toro 130-9642

TRANSMISSION

$393.99

$

Usually ships in 3-6 days

0

1:1

Toro 131-5973

PULLEY REPAIR KIT

$50.99

$

In Stock, only 1 left!

0

1:2

Toro 131-5984

PLUG-OIL

Note: Not illustrated

$10.99

$

Usually ships in 3-6 days

0

2

Toro 130-9643

BEARING-AXLE

$7.49

$

Usually ships in 3-6 days

0

3

RH WHEEL AND TIRE ASM

Note: Not serviced separately

$

$

Not available

3:1

$56.99

$

Usually ships in 3-6 days

0

3:2

$54.99

$

Usually ships in 3-6 days

0

3:3

Toro 232-27

STEM-VALVE
(Superseded to 5108)

$6.99

$

In Stock, Qty 16

0

4

LH WHEEL AND TIRE ASM

Note: Not serviced separately

$

$

Not available

4:1

$56.99

$

Usually ships in 3-6 days

0

4:2

$54.99

$

Usually ships in 3-6 days

0

4:3

Toro 232-27

STEM-VALVE
(Superseded to 5108)

$6.99

$

In Stock, Qty 16

0

6

Toro 321-9

SCREW-HH

$4.99

$

Usually ships in 3-6 days

0

7

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 12

0

10

Toro 130-9586-03

PLATE-SUPPORT, JACKSHAFT

$20.99

$

Usually ships in 3-6 days

0

11

Toro 131-1794

SUPPORT-BEARING

$12.99

$

Usually ships in 3-6 days

0

12

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

13

Toro 131-1795

IDLER-TRACTION

$30.99

$

Usually ships in 3-6 days

0

14

Toro 108-4925

WASHER

$1.99

$

In Stock, Qty 5

0

16

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

17

Toro 131-1789

BOLT-SHOULDER, HHF

$1.99

$

Usually ships in 3-6 days

0

18

Toro 130-9645

SPRING-EXTENSION

$4.49

$

Usually ships in 3-6 days

0

19

Toro 130-9583

PULLEY-JACKSHAFT

$18.99

$

In Stock, only 1 left!

0

20

Toro 3290-456

WASHER-BELLEVILLE

$2.99

$

In Stock, Qty 19

0

21

Toro 9080046

SCREW-HH

$5.49

$

In Stock, Qty 16

0

22

Toro 38-7820

BEARING-BALL

$13.99

$

In Stock, Qty 18

0

23

Toro 130-9623

RETAINER-BEARING
(Superseded to 136-7171)

$3.99

$

Usually ships in 3-6 days

0

24

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

25

Toro 52-7280

WASHER-THRUST

$5.49

$

In Stock, Qty 20+

0

26

Toro 131-5988

PULLEY-IDLER, FLAT

$18.99

$

In Stock, only 2 left!

0

27

Toro 323-29

SCREW-HH

$0.99

$

In Stock, Qty 6

0

28

Toro 3296-59

NUT-LOCK, NI
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 17

0

29

Toro 131-5968

BELT-POLY V

$25.99

$

In Stock, only 1 left!

0

31

Toro 131-5904

WASHER-RUBBER

$0.99

$

Usually ships in 3-6 days

0

32

Toro 131-5910

SPACER-AXLE

$2.99

$

Usually ships in 3-6 days

0

33

Toro 130-9585

JACKSHAFT

$36.99

$

In Stock, only 1 left!

0
