38710 (724 ZXR) - Toro 24" SnowMax Snow Thrower (SN: 316000001 - 316999999) (2016) PISTON AND HEAD ASSEMBLY Parts Diagram

24" SnowMax Snow Thrower

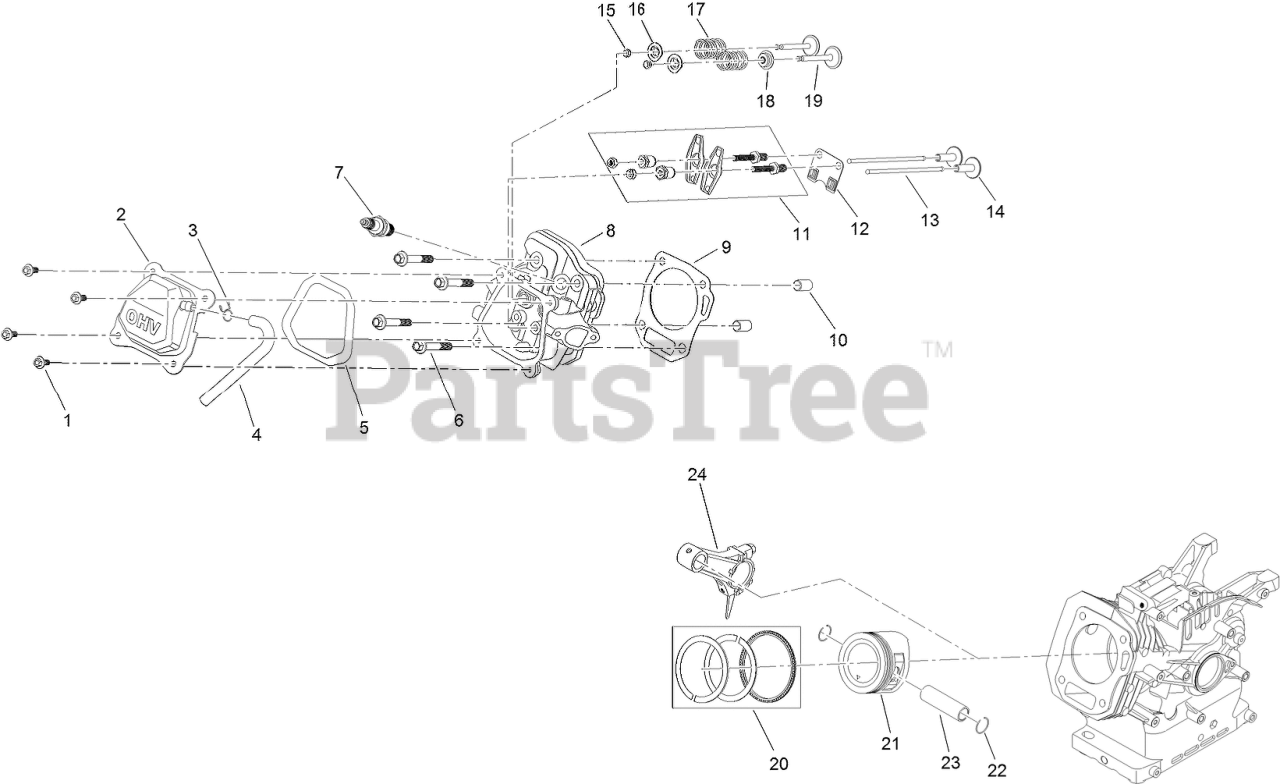

PISTON AND HEAD ASSEMBLY Parts Diagram

  • Title

1

Toro 120-4454

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0

2

Toro 127-9094

COVER-VALVE

$20.99

$

Usually ships in 3-6 days

0

3

Toro 127-9408

CLAMP-HOSE

$1.49

$

Usually ships in 3-6 days

0

4

Toro 127-9095

TUBE-BREATHER
(Superseded to 139-0631)

$4.99

$

Usually ships in 3-6 days

0

5

Toro 121-0109

GASKET-COVER, VALVE

$5.49

$

Usually ships in 3-6 days

0

6

Toro 121-4110

SCREW-HHF

$2.99

$

Usually ships in 3-6 days

0

7

Toro 81-3250

SPARK PLUG

$3.49

$

In Stock, Qty 20+

0

8

Toro 127-9013

HEAD-CYLINDER

$100.99

$

Usually ships in 3-6 days

0

9

Toro 127-9000

GASKET-HEAD, CYLINDER

$13.99

$

Usually ships in 3-6 days

0

10

Toro 121-0053

PIN-DOWEL

$1.49

$

Usually ships in 3-6 days

0

11

Toro 120-4475

ROCKER ARM ASM

$11.99

$

Usually ships in 3-6 days

0

12

Toro 121-4120

PLATE-GUIDE, PUSH ROD

$6.99

$

Usually ships in 3-6 days

0

13

Toro 121-4121

ROD-PUSH

$3.99

$

Usually ships in 3-6 days

0

14

Toro 127-9015

TAPPET-VALVE

$9.49

$

Usually ships in 3-6 days

0

15

Toro 121-4116

ROTATOR-VALVE

$3.99

$

In Stock, only 1 left!

0

16

Toro 121-4117

RETAINER-SPRING, VALVE

$5.99

$

Usually ships in 3-6 days

0

17

Toro 127-9014

SPRING-VALVE

$3.99

$

Usually ships in 3-6 days

0

18

Toro 121-4202

SEAL-STEM, VALVE

$7.49

$

Usually ships in 3-6 days

0

19

Toro 127-9016

VALVE SET

$26.99

$

Usually ships in 3-6 days

0

20

Toro 121-4295

RING SET, PISTON

$23.99

$

Usually ships in 3-6 days

0

21

Toro 121-4293

PISTON

$39.99

$

Usually ships in 3-6 days

0

22

Toro 121-0313

CLIP-PIN, PISTON

$1.49

$

Usually ships in 3-6 days

0

23

Toro 121-4128

PIN-PISTON

$10.99

$

Usually ships in 3-6 days

0

24

Toro 127-9017

CONNECTING ROD ASM

$35.99

$

In Stock, only 2 left!

0
