38705x5B - Murray 38" Lawn Tractor (1996) Electrical System Parts Diagram

38" Lawn Tractor

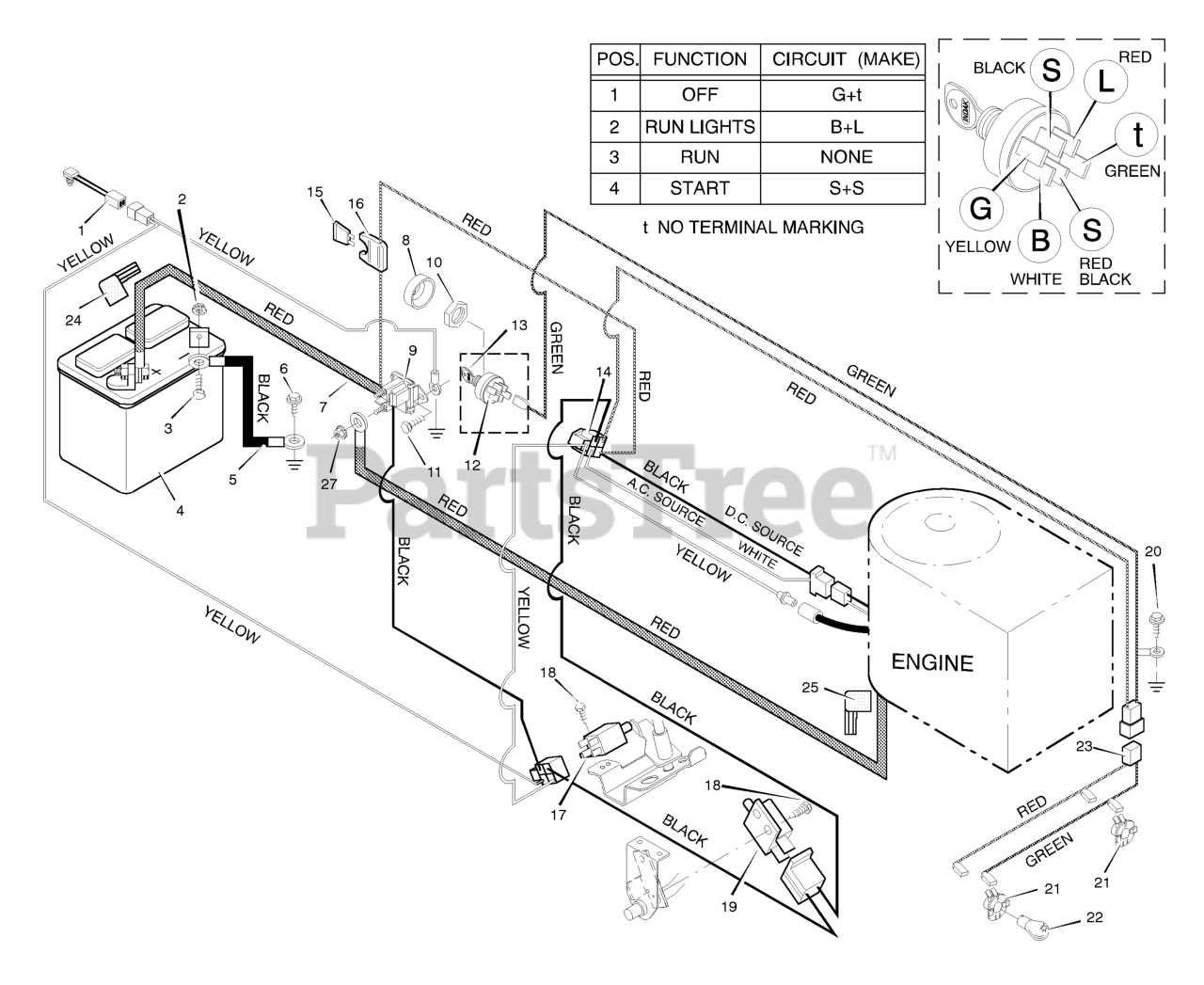

Electrical System Parts Diagram

  • Title

1

Murray 091031

Switch, Seat Sensor

$

$

Currently unavailable

2

Murray 15X116MA

Locknut
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

3

Murray 001X38MA

Bolt, Hex

$4.49

$

In Stock, Qty 10

0

4

Murray 091414

Battery

$

$

Not available

--

Murray 055702

Acid, Battery (Electrolyte)

$

$

Currently unavailable

5

Murray 024X30

Cable, Battery Ground

$7.99

$

Usually ships in 2-12 days

0

6

Murray 26X249MA

Screw

$

$

Not available

7

Murray 024X29MA

Cable, Red Battery

$14.99

$

Usually ships in 2-12 days

0

8

Murray 091488

Cap, Ignition
(Superseded to 091488MA)

$4.99

$

Usually ships in 2-12 days

0

9

Murray 024285

Solenoid

$

$

Currently unavailable

10

Murray 091489MA

Nut
(Superseded to 847144)

$10.99

$

Usually ships in 2-12 days

0

11

Murray 26X214MA

Screw

$4.49

$

Usually ships in 2-12 days

0

12

Murray 092377MA

Switch, Ignition

$24.99

$

In Stock, only 1 left!

0

13

Murray 020729

Key, Ignition

$5.49

$

In Stock, Qty 11

0

14

Murray 250X50MA

Harness, Chassis Wire

$137.99

$

Usually ships in 2-12 days

0

15

Murray 054212

Fuse

$6.99

$

Usually ships in 2-12 days

0

16

Murray 407078MA

Holder, Fuse

$20.99

$

Usually ships in 2-12 days

0

17

UNKNOWN

$

$

Not available

18

Murray 26X233MA

Screw

$3.99

$

Usually ships in 2-12 days

0

19

Murray 024273MA

Switch, Clutch
(Superseded to 5021451SM)

$11.99

$

In Stock, Qty 13

0

20

Murray 0025X2MA

Screw
(Superseded to 704130)

$3.99

$

In Stock, only 3 left!

0

21

Murray 092372

Socket, Light

$7.99

$

In Stock, Qty 5

0

22

Murray 090084MA

Bulb, Light
(Superseded to 1677371SM)

$30.99

$

In Stock, only 1 left!

0

23

Murray 250X40MA

Harness, Light Wire

$25.99

$

Usually ships in 2-12 days

0

24

Murray 054148MA

Cover, Terminal

$4.49

$

In Stock, only 1 left!

0

25

Murray 024196

Cover,

Note: (Optional)

$4.49

$

Usually ships in 2-12 days

0

27

Murray 15X116MA

Locknut
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0
