38702x8E - Scotts 38" Lawn Tractor (1996) Steering Parts Diagram

38" Lawn Tractor

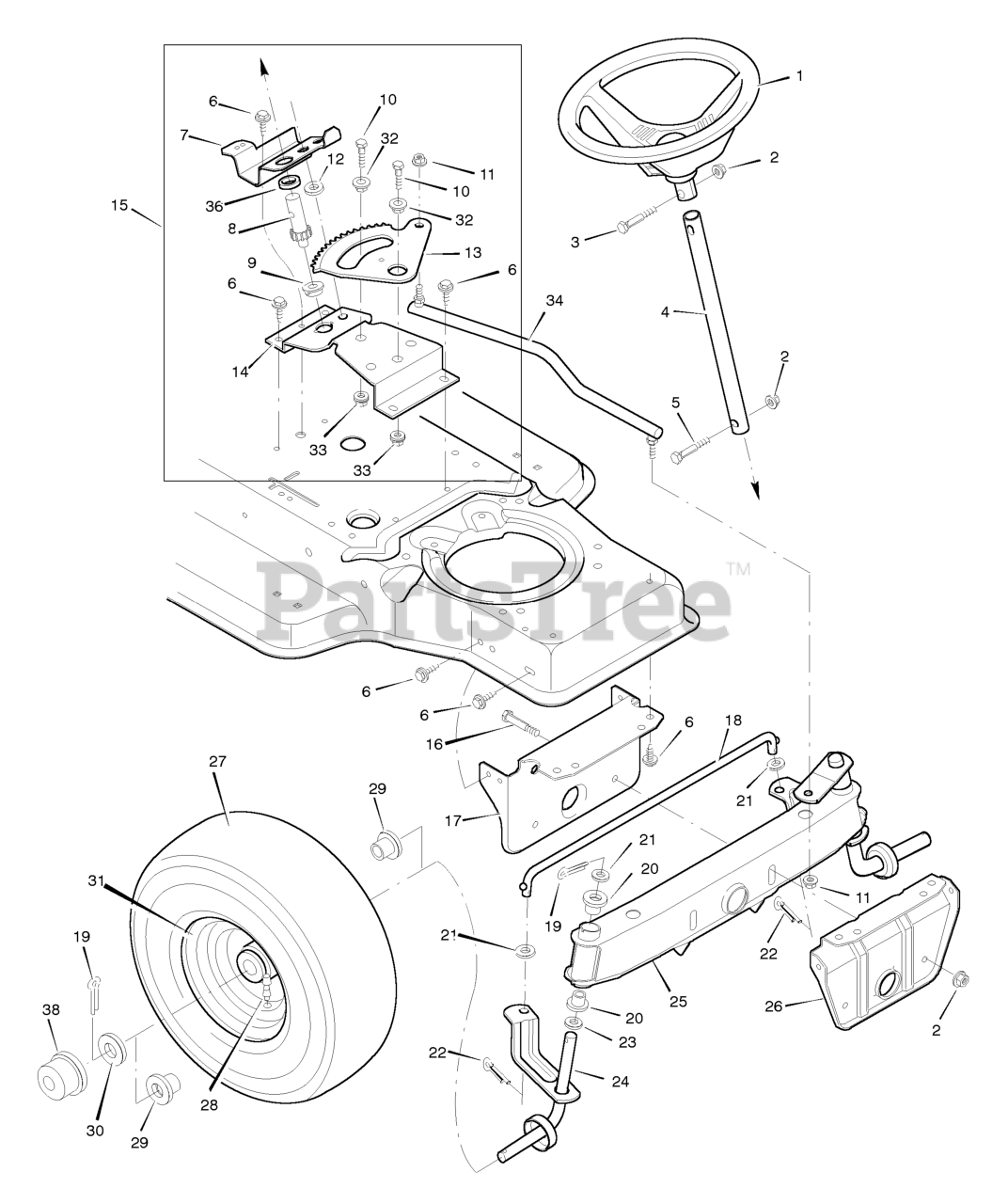

Steering Parts Diagram

  • Title
1

Murray 092076

Wheel, Steering

$

$

Currently unavailable

2

Murray 15X118MA

Nut, Hex

$4.49

$

Usually ships in 2-12 days

0

3

Murray 001X66MA

Bolt, Hex

$3.99

$

Usually ships in 2-12 days

0

4

Murray 091860 Z

Post, Steering

$

$

Currently unavailable

5

Murray 001X74MA

Bolt, Hex

$3.49

$

Usually ships in 2-12 days

0

6

$

$

Not available

7

Murray 91716E701

Bracket, Sector

$

$

Not available

8

Murray 092715MA

Gear, Pinion

$20.99

$

In Stock, Qty 6

0

9

Murray 091756MA

Bearing

$16.99

$

Usually ships in 2-12 days

0

10

Murray 001X84MA

CAPSCREW, Hex Head, 5/16-18 x 1
(Superseded to 703585)

$4.99

$

In Stock, only 1 left!

0

11

Murray 015X87

Locknut, Flange

$4.49

$

In Stock, only 1 left!

0

12

$3.99

$

Usually ships in 2-12 days

0

13

Murray 092316

Gear, Sector
(Superseded to 402075MA)

$

$

Not available

14

Murray 91708E701

Bracket, Sector

$

$

Not available

15

Murray 402075MA

Kit, Steering Gear

$

$

Not available

16

Murray 01X146MA

Bolt, Hex

$3.99

$

Usually ships in 2-12 days

0

17

Murray 092529E701

Support, Rear Axle

$98.99

$

Usually ships in 2-12 days

0

18

Murray 90038E701

Rod, Tie

$

$

Currently unavailable

19

Murray 030X49MA

Pin, Cotter

$4.49

$

In Stock, Qty 11

0

20

Murray 092527MA

Bearing

$6.49

$

In Stock, only 4 left!

0

21

$4.49

$

Usually ships in 2-12 days

0

22

Murray 030X20MA

Pin, Cotter
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

23

$3.99

$

In Stock, only 2 left!

0

24

Murray 091828E701MA

Spindle Assembly, Right

$70.99

$

In Stock, only 1 left!

0

25

Murray 92518E701

Spindle Assembly, Axle & Left

$410.99

$

Usually ships in 2-12 days

0

26

Murray 092528E701

Support, Front Axle

$50.99

$

Usually ships in 2-12 days

0

27

$91.99

$

Usually ships in 2-12 days

0

--

$31.99

$

Usually ships in 2-12 days

0

28

Murray 024373MA

Stem, Valve

$

$

Not available

29

Murray 091334

Bearing, Wheel

$

$

Not available

30

$6.99

$

Usually ships in 2-12 days

0

31

Murray 92287601

Wheel & Tire Assembly

$

$

Currently unavailable

32

Murray 092097MA

Bearing

$

$

Not available

33

Murray 15X113MA

Locknut, Flange

$4.49

$

Usually ships in 2-12 days

0

34

Murray 091749E701MA

Link, Drag

$

$

Not available

36

Murray 092280MA

Spacer, Pinion Gear

$6.49

$

Usually ships in 2-12 days

0

38

Murray 024582MA

Hub Cap

Note: (Optional)

$7.99

$

Usually ships in 2-12 days

0
