38702x8E - Scotts 38" Lawn Tractor (1996) Mower Housing Parts Diagram

38" Lawn Tractor

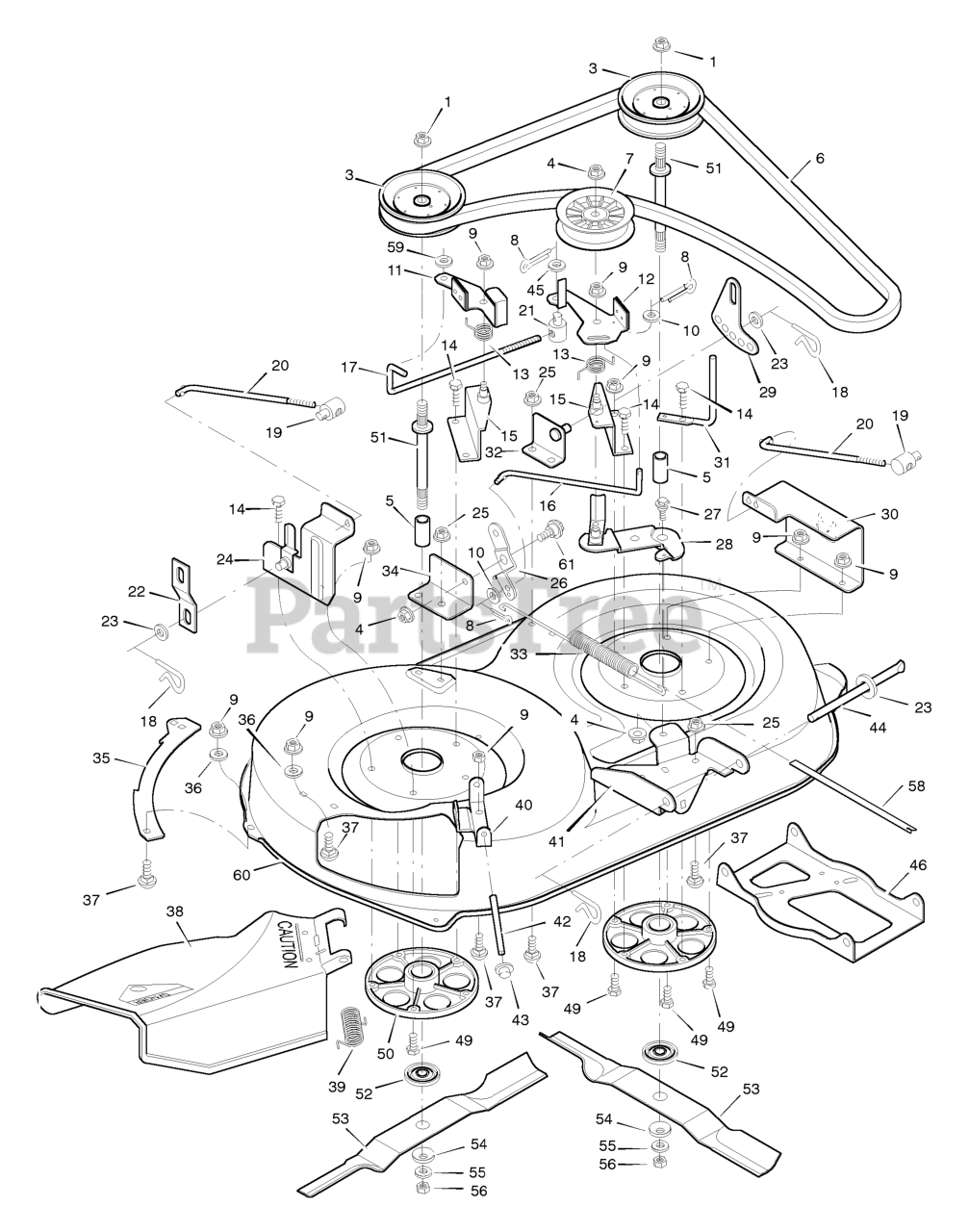

Mower Housing Parts Diagram

  • Title
1

Murray 15X121

Nut, Hex

$9.99

$

In Stock, Qty 7

0

3

Murray 092852MA

Pulley, Jackshaft

$31.99

$

In Stock, only 1 left!

0

4

Murray 015X84MA

Locknut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

5

Murray 092850

Spacer

$

$

Not available

6

Murray 037X63A

Belt, Blade Drive

$35.99

$

In Stock, only 1 left!

0

7

Murray 091801

Pulley, Idler
(Superseded to 091801MA)

$24.99

$

In Stock, Qty 8

0

8

Murray 030X20MA

Pin, Cotter
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

9

Murray 015X88MA

Locknut, Flange
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

10

Murray 17X462

Washer

$

$

Currently unavailable

11

Murray 092183SEMA

Brake Assembly, Right

$193.99

$

In Stock, only 1 left!

0

12

Murray 092183SEMA

Brake Assembly, Left

$193.99

$

In Stock, only 1 left!

0

13

Murray 166X27MA

Spring, Torsion

$4.49

$

Usually ships in 2-12 days

0

14

Murray 0025X7MA

Bolt, Hex
(Superseded to 2828635SM)

$4.99

$

In Stock, Qty 20+

0

15

Murray 92072E701

Bracket Assembly, Brake

$14.99

$

Usually ships in 2-12 days

0

16

Murray 091745 Z

Rod, Brake

$

$

Currently unavailable

17

Murray 92183 Z

Rod, Cross Link

$

$

Currently unavailable

18

Murray 0031X4MA

Pin, Hair
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

19

Murray 092131

Nut, Adjustable

$

$

Not available

20

Murray 091748 Z

Rod, Adjuster

$

$

Currently unavailable

21

Murray 021920ZMA

Nut, Adjustable

$17.99

$

Usually ships in 2-12 days

0

22

Murray 092064E701MA

Link, Suspension

$5.99

$

Usually ships in 2-12 days

0

23

$4.99

$

In Stock, only 2 left!

0

24

Murray 092194E701MA

Bracket Assembly, Right Lifter

$

$

Not available

25

Murray 015X79MA

Nut, Flange
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

26

Murray 092033SEMA

Bracket, Pivot

$42.99

$

Usually ships in 2-12 days

0

27

Murray 009X39MA

Bolt, Shoulder

$6.49

$

In Stock, Qty 6

0

28

Murray 92032E701

Arm Assembly, Idler

$114.99

$

Usually ships in 2-12 days

0

29

Murray 091741E701MA

Plate, Adjuster

$17.99

$

Usually ships in 2-12 days

0

30

Murray 091792E700

Cover, Pulley

$

$

Currently unavailable

31

Murray 91797E701

Guide, Belt

$

$

Currently unavailable

32

Murray 091813E701

Bracket Assembly, Left Lifter

$11.99

$

Usually ships in 2-12 days

0

33

Murray 165X72MA

Spring, Extension

$19.99

$

In Stock, only 1 left!

0

34

Murray 091743E701

Bracket, Pivot

$34.99

$

Usually ships in 2-12 days

0

35

Murray 091770E700MA

Plate
(Superseded to 091770E701MA)

$10.99

$

Usually ships in 2-12 days

0

36

$4.49

$

Usually ships in 2-12 days

0

37

Murray 002X53MA

Bolt, Carriage
(Superseded to 703159)

$3.99

$

In Stock, Qty 20+

0

38

Murray 092465

Deflector Assembly, Chute

$

$

Currently unavailable

39

Murray 0166X4MA

Spring, Torsion

$6.49

$

In Stock, Qty 9

0

40

Murray 91765E701

Bracket, Hinge

$

$

Currently unavailable

41

Murray 091793E701MA

Bracket, Front Hanger

$25.99

$

In Stock, only 1 left!

0

42

Murray 91767 Z

Rod, Deflector

$

$

Currently unavailable

43

Murray 028X23MA

Cap, Push On
(Superseded to 703948)

$4.49

$

In Stock, Qty 20+

0

44

Murray 091739 Z

Rod, Hanger

$

$

Currently unavailable

45

$4.49

$

Usually ships in 2-12 days

0

46

Murray 092119SEMA

Hanger, Front

$128.99

$

Usually ships in 2-12 days

0

49

Murray 001X84MA

CAPSCREW, Hex Head, 5/16-18 x 1
(Superseded to 703585)

$4.99

$

In Stock, only 1 left!

0

50

Murray 090905

Housing, Jackshaft

$

$

Currently unavailable

51

Murray 092849MA

Jackshaft

$23.99

$

Usually ships in 2-12 days

0

52

Murray 092466MA

Adapter, Blade

$9.99

$

In Stock, only 1 left!

0

53

Murray 091742E701MA

Blade, 38"

Note: (2 required)

$22.99

$

In Stock, only 3 left!

0

54

Murray 17X166MA

Washer, Belleville

$13.99

$

In Stock, Qty 18

0

55

$16.99

$

In Stock, only 4 left!

0

56

Murray 15X100MA

Nut, Hex

$3.99

$

In Stock, Qty 10

0

58

Murray 092163MA

Indicator, Plastic

$6.99

$

Usually ships in 2-12 days

0

59

$8.49

$

Usually ships in 2-12 days

0

60

Murray 91732E701

Housing, Blade (38")

$

$

Not available

61

Murray 009X42MA

Bolt, Shoulder
(Superseded to 704206)

$7.99

$

In Stock, only 1 left!

0

--

Murray 403228MA

Complete Mower Housing Assembly

Note: (Includes Ref. No's. 1-61)

$

$

Not available
