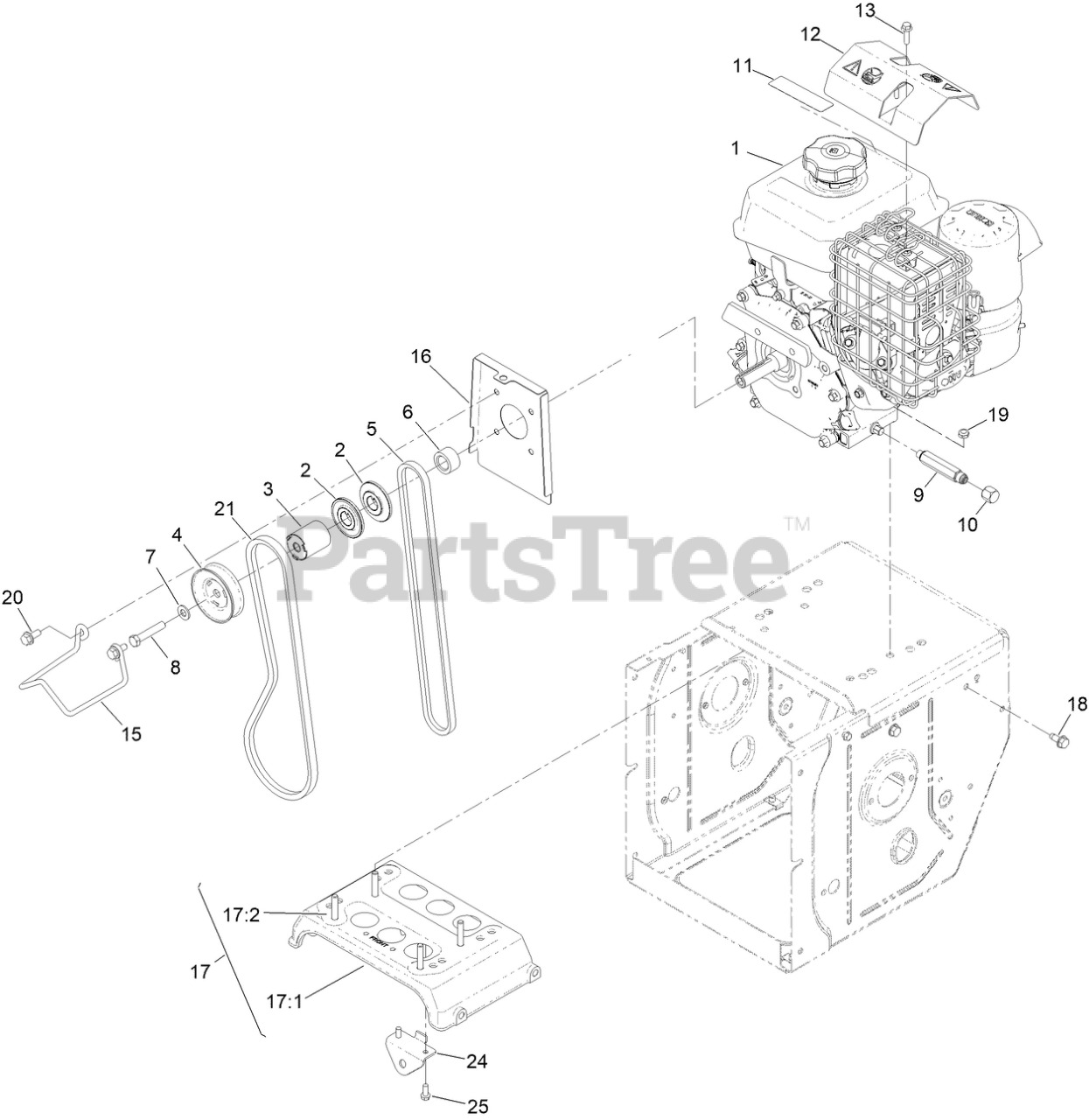

38701 - Toro Walk-Behind Rotary Power Broom (SN: 414800000 - 999999999) Engine Assembly Parts Diagram

Walk-Behind Rotary Power Broom

Engine Assembly Parts Diagram

  • Title

1

ENGINE-KOHLER, CH270

Note: Not serviced separately

$

$

Not available

1

ENGINE-KOHLER, CH270

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

2

Toro 144-1240

SHEAVE-TRACTION

$5.99

$

Usually ships in 3-6 days

0

3

Toro 144-1241

SPACER-PULLEY

$10.99

$

Usually ships in 3-6 days

0

4

Toro 137-6179

PULLEY-IMPELLER

$13.99

$

Usually ships in 3-6 days

0

5

Toro 109-7299

BELT,3L P21 DRIVE

$28.99

$

Usually ships in 3-6 days

0

6

Toro 144-1242

SPACER

$5.99

$

Usually ships in 3-6 days

0

7

Toro 115-1166

WASHER-FLAT

$4.99

$

In Stock, Qty 9

0

8

Toro 120-2302

SCREW-HH

$2.99

$

Usually ships in 3-6 days

0

9

Toro 116-8721

ADAPTER

$44.99

$

Usually ships in 3-6 days

0

10

Toro 01-201-4520

CAP

$3.99

$

Usually ships in 3-6 days

0

11

Toro 133-8062

DECAL-ARRESTOR, SPARK

$2.99

$

Usually ships in 3-6 days

0

12

Toro 126-4178-03

DEFLECTOR-DEBRIS, MUFFLER

$66.99

$

Usually ships in 3-6 days

0

13

Toro 33103-025

SCREW-HHF

$6.49

$

Usually ships in 3-6 days

0

15

Toro 144-2816

GUIDE-BELT

$8.49

$

Usually ships in 3-6 days

0

16

Toro 140-7945-03

COVER-CRANK

$22.99

$

Usually ships in 3-6 days

0

17

Toro 144-1625

ENGINE PLATE ASM (G250)

$44.99

$

Usually ships in 3-6 days

0

17:1

Toro 144-1626

PLATE-ENGINE

$42.99

$

Usually ships in 3-6 days

0

17:2

Toro 136-7178

STUD-PRESS 95/16-18 X 1.625)

$1.49

$

Usually ships in 3-6 days

0

18

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

19

Toro 137-3089

NUT-HEX

$1.49

$

Usually ships in 3-6 days

0

20

Toro 138-0690

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

21

Toro 80-3590

V-BELT

$58.99

$

Usually ships in 3-6 days

0

24

Toro 136-6644-03

BRACKET-CONTROL, TRACTION

$2.99

$

Usually ships in 3-6 days

0

25

Toro 32144-85

SCREW-HWH

$1.99

$

In Stock, Qty 20+

0
