38701 - Toro Walk-Behind Rotary Power Broom (SN: 408800000 - 411699999) Handle Assembly Parts Diagram

Walk-Behind Rotary Power Broom

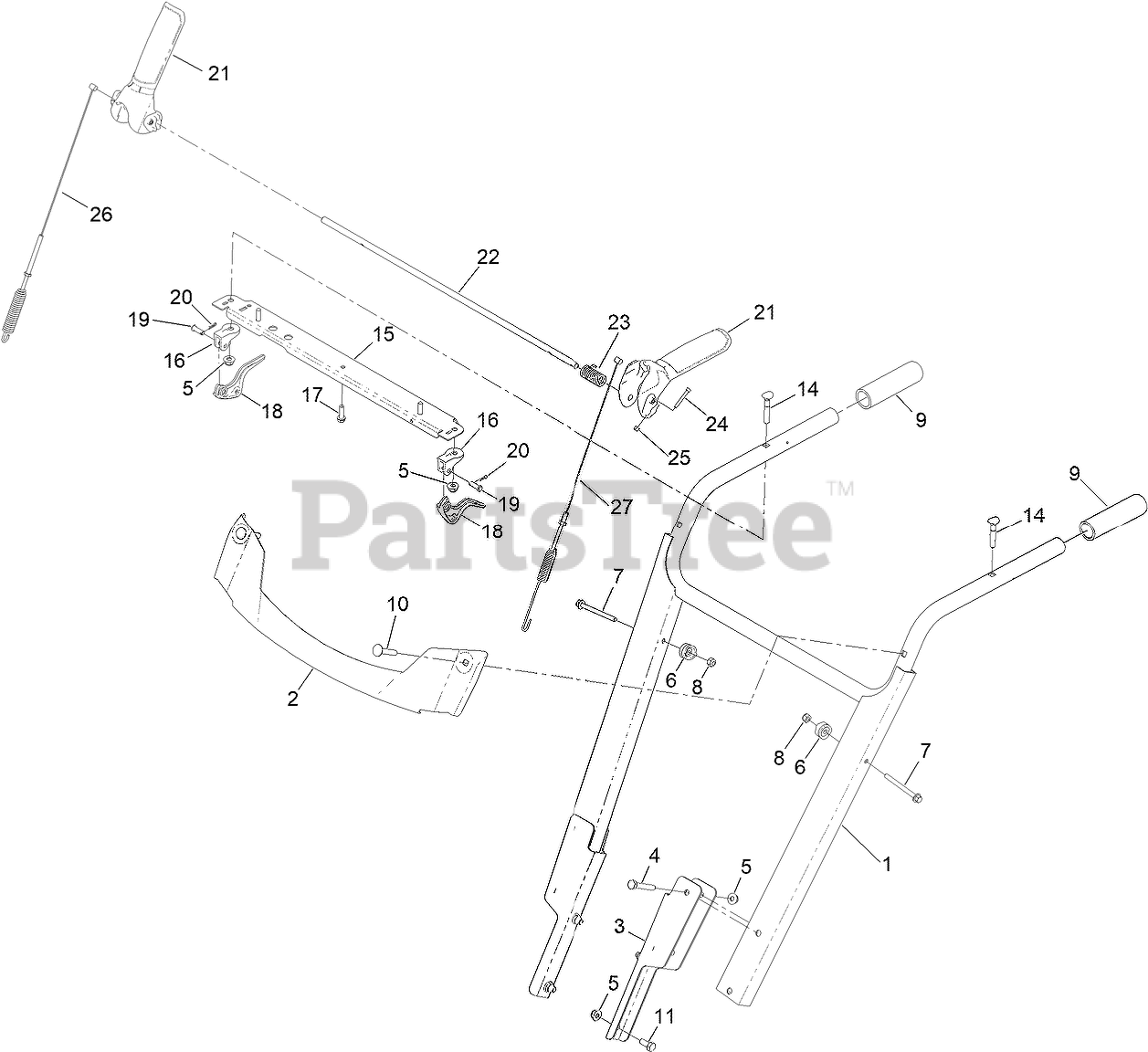

Handle Assembly Parts Diagram

  • Title

1

Toro 137-6224-03

HD HANDLE ASM

$168.99

$

Usually ships in 3-6 days

0

2

Toro 137-6233-01

TRIM-METAL, HD

$15.99

$

Usually ships in 3-6 days

0

3

Toro 137-6221-03

BRACKET-HANDLE, LOWER

$19.99

$

Usually ships in 3-6 days

0

4

Toro 120-9686

SCREW-HH

$2.99

$

Usually ships in 3-6 days

0

5

Toro 138-8401

NUT-HF

$1.49

$

In Stock, Qty 12

0

6

Toro 106-4509

CLAMP-CABLE

$6.49

$

In Stock, Qty 6

0

7

Toro 138-3653

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0

8

Toro 137-3094

NUT-HEX

$1.49

$

In Stock, Qty 20+

0

9

Toro 120-1333

GRIP-HANDLE

$9.49

$

In Stock, Qty 6

0

10

Toro 138-8402

BOLT-CARR

$1.49

$

Usually ships in 3-6 days

0

11

Toro 137-3052

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

14

Toro 137-3107

SCREW-HANDLE

$1.99

$

In Stock, Qty 13

0

15

Toro 145-4075-01

BRACE-CONSOLE

$22.99

$

Usually ships in 3-6 days

0

16

Toro 105-9980

MOUNT-LEVER, CLUTCH

$8.49

$

Usually ships in 3-6 days

0

17

Toro 137-3099

SCREW-PLASTITE, HWH

$1.49

$

Usually ships in 3-6 days

0

18

Toro 106-4505

LEVER-CLUTCH

$8.99

$

In Stock, Qty 6

0

19

Toro 1-808265

PIN-CLEVIS

$3.49

$

In Stock, only 2 left!

0

20

Toro 108-2992

PIN-HAIR

$1.49

$

In Stock, only 4 left!

0

21

Toro 137-6171

LEVER-CONTROL

$12.99

$

In Stock, Qty 6

0

22

Toro 137-6182

ROD-LOCKOUT

$19.99

$

Usually ships in 3-6 days

0

23

Toro 138-0678

SPRING-TORSION, HANDLE RETURN

$3.49

$

Usually ships in 3-6 days

0

24

Toro 145-0660

SCREW-HSH,SPL

$0.99

$

Usually ships in 3-6 days

0

25

Toro 131-8641

NUT-LOCK

$

$

Currently unavailable

26

Toro 138-3661

CABLE-AUGER
(Superseded to 161-0973)

$27.99

$

Usually ships in 3-6 days

0

27

Toro 138-0728

CABLE-TRACTION

$23.99

$

Usually ships in 3-6 days

0

99

Toro 130-8332

ADHESIVE-LOCTITE 608

Note: Not illustrated

$11.99

$

Usually ships in 3-6 days

0
