38701 - Toro Walk-Behind Rotary Power Broom (SN: 408800000 - 411699999) Control Assembly Parts Diagram

Walk-Behind Rotary Power Broom

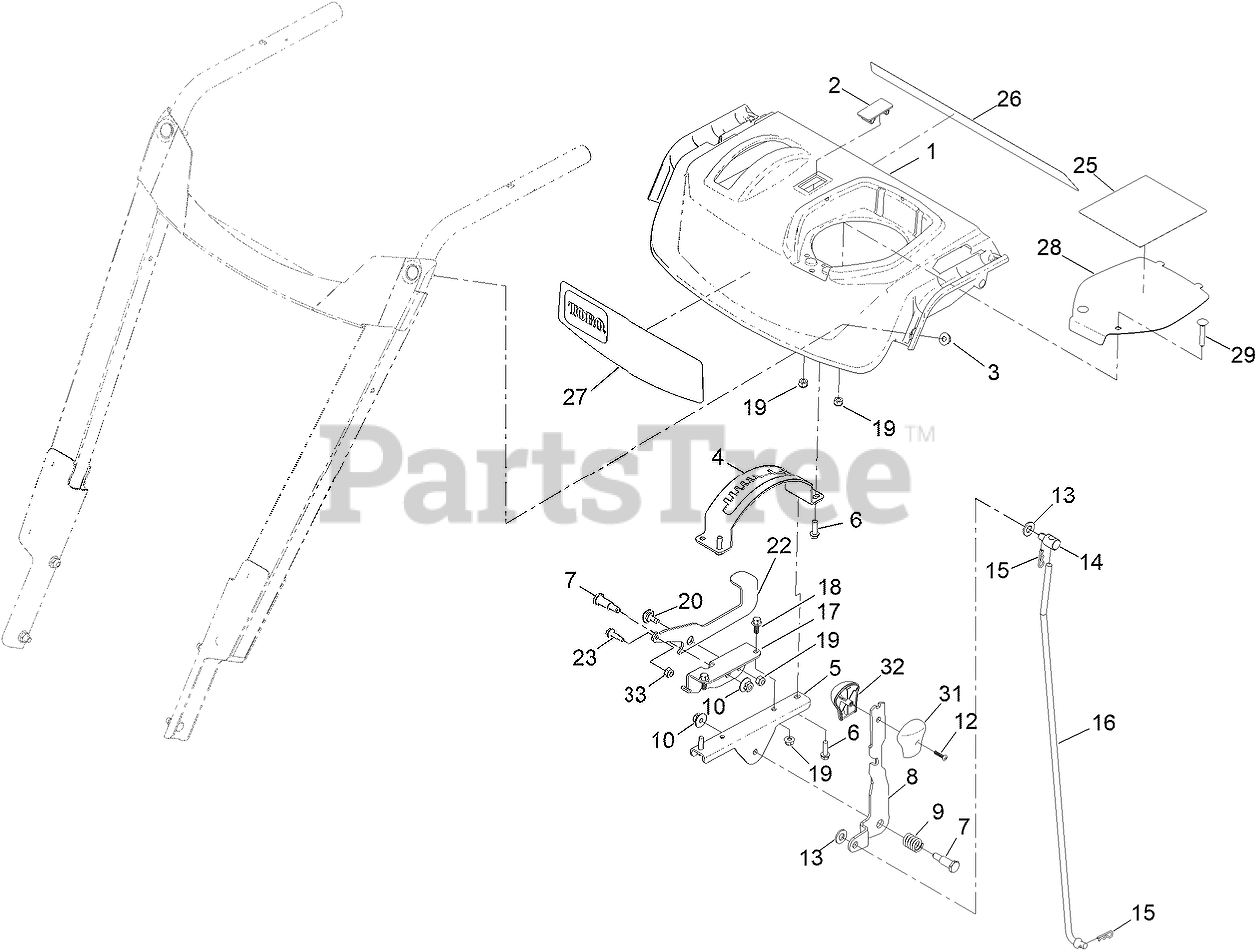

Control Assembly Parts Diagram

  • Title

1

Toro 144-1346

PANEL-CONTROL

$

$

Currently unavailable

2

Toro 99-7420

PLUG-HOLE

$8.49

$

Usually ships in 3-6 days

0

3

Toro 138-8401

NUT-HF

$1.49

$

In Stock, Qty 12

0

4

Toro 137-6187-03

GATE-SHIFT

$8.49

$

Usually ships in 3-6 days

0

5

Toro 137-6188-03

BRACKET-SHIFT

$6.99

$

Usually ships in 3-6 days

0

6

Toro 137-3099

SCREW-PLASTITE, HWH

$1.49

$

Usually ships in 3-6 days

0

7

Toro 137-3103

SCREW-SHOULDER, HH

$1.49

$

Usually ships in 3-6 days

0

8

Toro 137-6231-03

SELECTOR-SPEED

$9.49

$

Usually ships in 3-6 days

0

9

Toro 136-7121

SPRING-COMPRESSION

$2.99

$

Usually ships in 3-6 days

0

10

Toro 137-3038

NUT-HF

$5.49

$

Usually ships in 3-6 days

0

12

Toro 94-4496

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

13

Toro 115-1166

WASHER-FLAT

$4.99

$

In Stock, Qty 9

0

14

Toro 136-7193

TRUNNION-ROD

$7.99

$

In Stock, Qty 10

0

15

Toro 137-3083

PIN-HAIR

$1.49

$

In Stock, Qty 16

0

16

Toro 137-6225

ROD-SHIFT

$17.99

$

In Stock, only 3 left!

0

17

Toro 139-9919-03

BRACKET-LEVER, BROOM ANGLE

$15.99

$

Usually ships in 3-6 days

0

18

Toro 137-3111

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0

19

Toro 119-4040

NUT-FLANGE, NI

$0.99

$

In Stock, Qty 11

0

20

Toro 92-9698

SCREW-SHOULDER

$5.49

$

Usually ships in 3-6 days

0

22

Toro 139-9920-03

LEVER-BROOM ANGLE

$17.99

$

Usually ships in 3-6 days

0

23

Toro 139-1709

SCREW-SHOULDER

$2.49

$

Usually ships in 3-6 days

0

25

Toro 135-2867

DECAL-CONSOLE

$17.99

$

Usually ships in 3-6 days

0

26

Toro 144-0316

DECAL-CONTROL PANEL

$

$

Currently unavailable

27

Toro 144-0315

DECAL-CONSOLE

$36.99

$

Usually ships in 3-6 days

0

28

Toro 139-9927-03

PLATE-COVER, CONT PNL

$25.99

$

Usually ships in 3-6 days

0

29

Toro 137-3011

BOLT-CARR

$1.49

$

Usually ships in 3-6 days

0

31

Toro 105-9999

KNOB-SHIFT, LH

$7.99

$

In Stock, only 4 left!

0

32

Toro 106-4423

KNOB-SHIFT, RH

$7.99

$

In Stock, only 4 left!

0

33

Toro 138-0719

NUT-HF

$1.49

$

In Stock, Qty 12

0
