38701 - Toro Walk-Behind Rotary Power Broom (SN: 400000000 - 408799999) Auger Drive Assembly Parts Diagram

Walk-Behind Rotary Power Broom

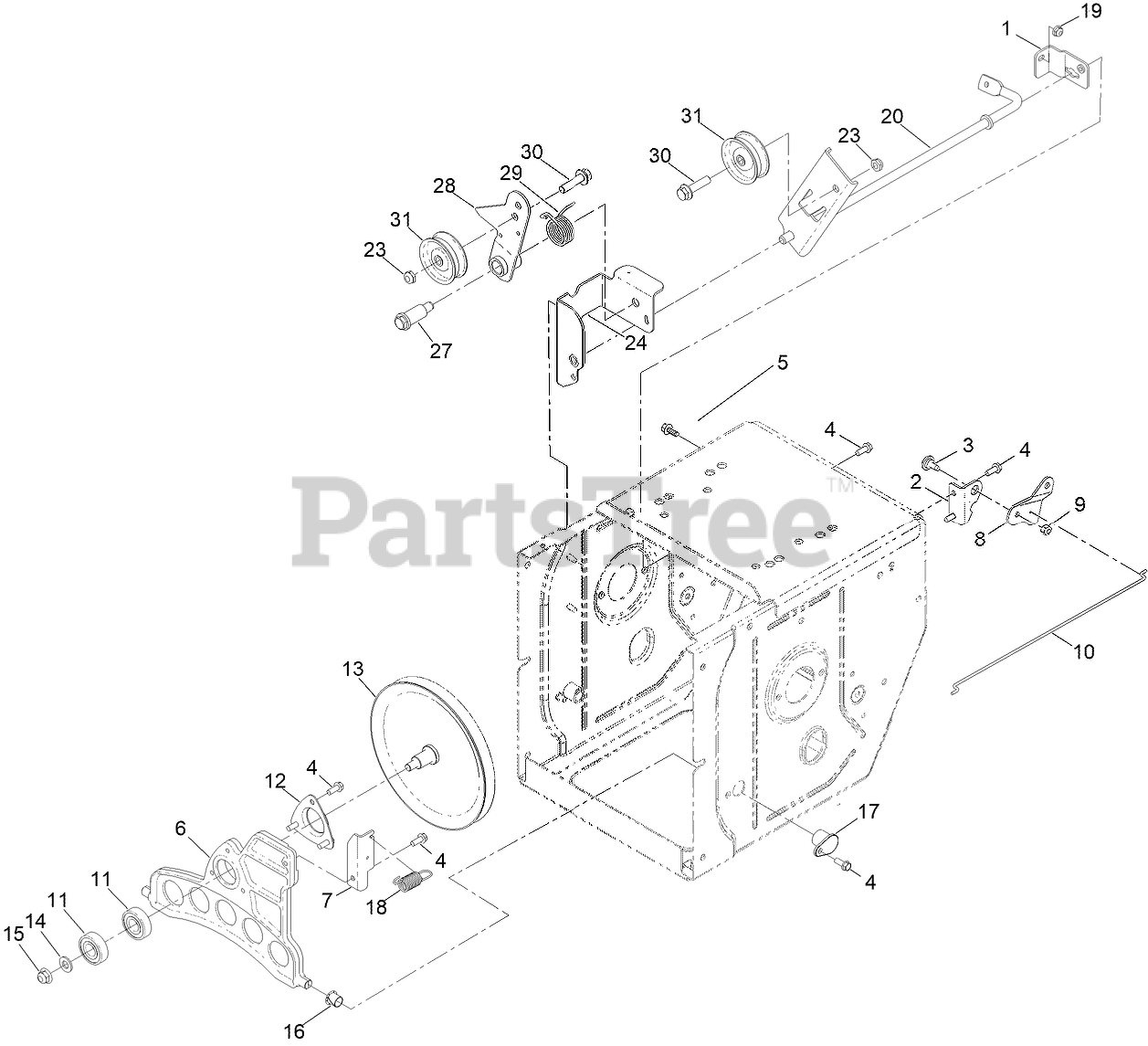

Auger Drive Assembly Parts Diagram

  • Title

1

Toro 136-8654-03

BRACKET-CLUTCH, IMPELLER

$2.99

$

Usually ships in 3-6 days

0

2

Toro 136-6654-03

BRACKET- BELLCRANK

$4.99

$

Usually ships in 3-6 days

0

3

Toro 92-9698

SCREW-SHOULDER

$5.49

$

Usually ships in 3-6 days

0

4

Toro 32144-85

SCREW-HWH

$1.99

$

In Stock, Qty 20+

0

5

Toro 137-3111

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0

6

Toro 136-6689

PLATE-FRICTION, WHEEL

$23.99

$

Usually ships in 3-6 days

0

7

Toro 137-6156-03

BKT-TRACTION PLATE

$3.99

$

Usually ships in 3-6 days

0

8

Toro 137-6159-03

BELLCRANK-DRIVE
(Superseded to 144-1622)

$4.99

$

Usually ships in 3-6 days

0

9

Toro 137-3094

NUT-HEX

$1.49

$

In Stock, Qty 14

0

10

Toro 137-6157

LINK-DRIVE
(Superseded to 144-1620)

$51.99

$

In Stock, only 1 left!

0

11

Toro 38-7820

BEARING-BALL

$13.99

$

In Stock, Qty 18

0

12

Toro 136-7124

RETAINER-BEARING

$1.99

$

Usually ships in 3-6 days

0

13

Toro 137-6154

PULLEY-TRACTION

$33.99

$

Usually ships in 3-6 days

0

14

Toro 115-1166

WASHER-FLAT

$4.99

$

In Stock, Qty 9

0

15

Toro 119-4042

NUT-HF, NI

$1.49

$

In Stock, Qty 19

0

16

Toro 256-257

BUSHING-NYLINER

$3.99

$

In Stock, Qty 20+

0

17

Toro 120-7156

BUSHING-PLATE, TRACTION

$8.99

$

In Stock, only 1 left!

0

18

Toro 137-6189

SPRING-EXTENSION

$3.49

$

Usually ships in 3-6 days

0

19

Toro 137-3005

NUT-HF

$1.49

$

Usually ships in 3-6 days

0

20

Toro 144-1243

ARM-CLUTCH, IMPELLER
(Superseded to 145-0670-03)

$18.99

$

Usually ships in 3-6 days

0

23

Toro 121-4600

NUT-HEX

$1.49

$

In Stock, Qty 17

0

24

Toro 136-8671-03

BRACKET-BRAKE, CLUTCH

$7.99

$

Usually ships in 3-6 days

0

27

Toro 136-7116

BOLT-SHOULDER

$5.49

$

Usually ships in 3-6 days

0

28

Toro 136-7186

ARM-IDLER, TRACTION

$18.99

$

Usually ships in 3-6 days

0

29

Toro 120-3060

SPRING-TORSION

$3.99

$

Usually ships in 3-6 days

0

30

Toro 139-2553

SCREW-HHF

$1.99

$

Usually ships in 3-6 days

0

31

Toro 3-4244

PULLEY-IDLER

$27.99

$

In Stock, only 2 left!

0
