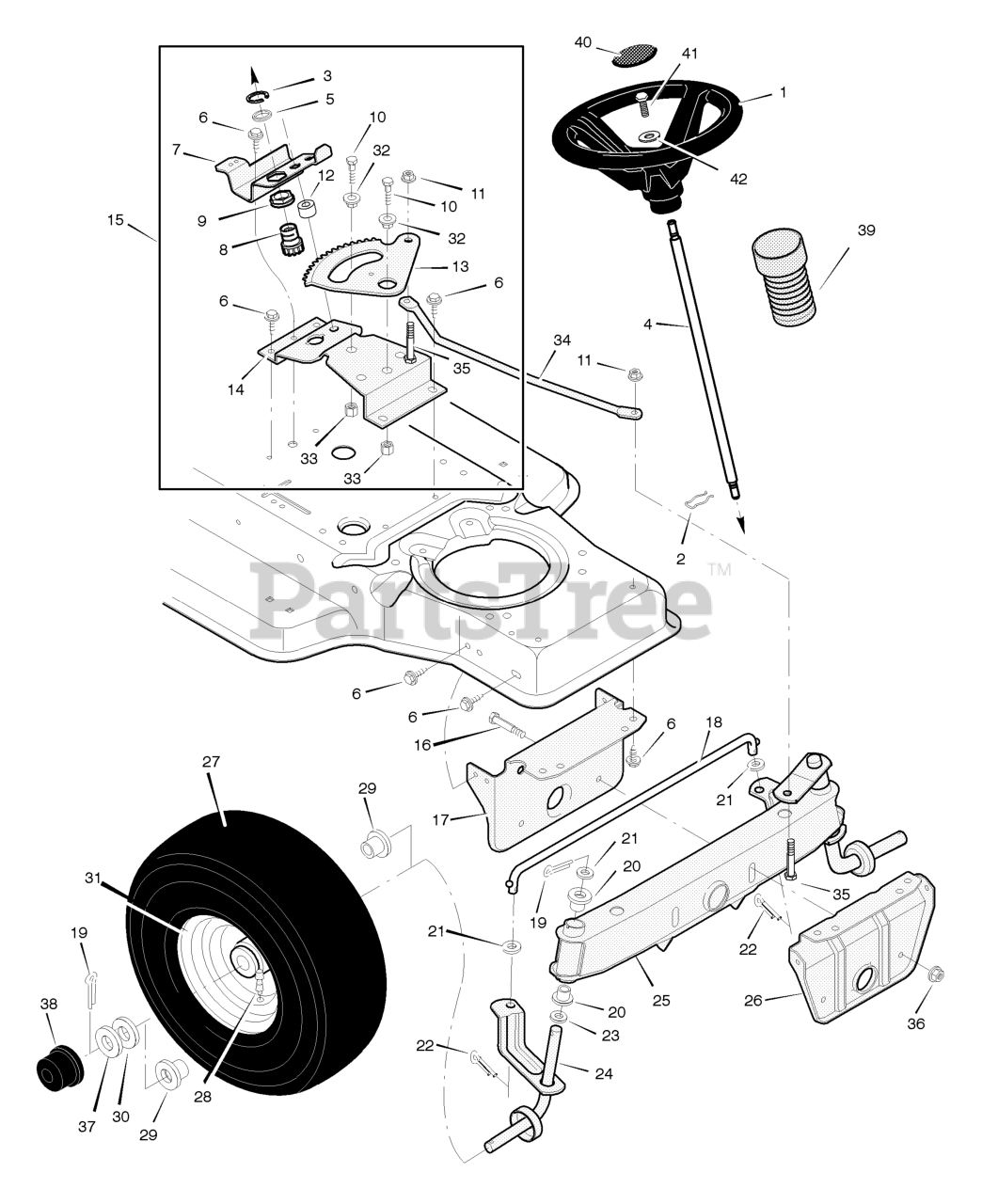

387003x8A - Murray 38" Lawn Tractor (2004) Steering Parts Diagram

38" Lawn Tractor

Steering Parts Diagram

  • Title

1

Murray 095185MA

Wheel, Steering
(Superseded to 1687602YP)

$110.99

$

In Stock, only 1 left!

0

2

Murray 094131MA

Pin, Retainer

$4.99

$

In Stock, only 1 left!

0

3

Murray 011X28

Ring, E

$2.49

$

Usually ships in 2-12 days

0

4

Murray 1001705MA

Post, Steering

$199.99

$

Usually ships in 2-12 days

0

5

Murray 17X118

WASHER, 1-1.3 16G FLT

$3.49

$

Usually ships in 2-12 days

0

6

Murray 26X249MA

Screw

$

$

Not available

7

Murray 1001704E701

Bracket, Sector

$

$

Currently unavailable

8

Murray 1401099MA

Gear, Pinion

$

$

Not available

9

Murray 1401098MA

Bearing

$4.99

$

Usually ships in 2-12 days

0

10

Murray 001X84MA

CAPSCREW, Hex Head, 5/16-18 x 1
(Superseded to 703585)

$4.99

$

In Stock, only 1 left!

0

11

Murray 015X84MA

Locknut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

12

Murray 092564MA

Spacer

$3.99

$

Usually ships in 2-12 days

0

13

Murray 1001708E701

Gear, Sector

$

$

Currently unavailable

14

Murray 091708E701MA

Bracket, Sector

$14.99

$

Usually ships in 2-12 days

0

15

Murray 1001710MA

Kit, Steering Gear

$

$

Not available

16

Murray 01X146MA

Bolt, Hex

$3.99

$

Usually ships in 2-12 days

0

17

Murray 092529E701

Support, Rear Axle

$98.99

$

Usually ships in 2-12 days

0

18

Murray 090038E701

Rod, Tie

$

$

Currently unavailable

19

Murray 030X49MA

Pin, Cotter

$4.49

$

In Stock, Qty 11

0

20

Murray 092527MA

Bearing

$6.49

$

In Stock, only 4 left!

0

21

Murray 017X57MA

Washer

$4.49

$

Usually ships in 2-12 days

0

22

Murray 030X20MA

Pin, Cotter
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

23

Murray 17X113MA

Washer

$3.99

$

In Stock, only 2 left!

0

24

Murray 091828E701MA

Spindle Assembly, Right

$70.99

$

In Stock, only 1 left!

0

25

Murray 092518E701MA

Spindle Assembly, Axle & Left

$410.99

$

Usually ships in 2-12 days

0

26

Murray 092528E701

Support, Front Axle

$50.99

$

Usually ships in 2-12 days

0

27

Murray 091912MA

Tire *

$91.99

$

Usually ships in 2-12 days

0

--

Murray 407047MA

Tube

$31.99

$

Usually ships in 2-12 days

0

28

Murray 024373MA

Stem, Valve

$

$

Not available

29

Murray 091334

Bearing, Wheel

$

$

Not available

30

Murray 17X195MA

Washer

$4.99

$

In Stock, Qty 5

0

31

Murray 094578601

Wheel & Tire Assembly

$190.99

$

Usually ships in 2-12 days

0

32

Murray 092097MA

Bearing

$

$

Not available

33

Murray 15X113MA

Locknut, Flange

$4.49

$

Usually ships in 2-12 days

0

34

Murray 1001649E701MA

Link, Drag

$63.99

$

Usually ships in 2-12 days

0

35

Murray 01X111MA

Bolt

$4.49

$

In Stock, only 1 left!

0

36

Murray 15X118MA

Locknut, Flange

$4.49

$

Usually ships in 2-12 days

0

37

Murray 17X192MA

Washer

$4.99

$

In Stock, Qty 15

0

39

Murray 092059MA

Bellows

$9.49

$

Usually ships in 2-12 days

0

38

Murray 094618MA

Hub Cap

$5.99

$

Usually ships in 2-12 days

0

40

Murray 711326MA

Cap, Steering Wheel

$7.49

$

Usually ships in 2-12 days

0

41

Murray 0025X3MA

Screw, Hex

$4.99

$

Usually ships in 2-12 days

0

42

Murray 17X146MA

Washer

$5.49

$

Usually ships in 2-12 days
