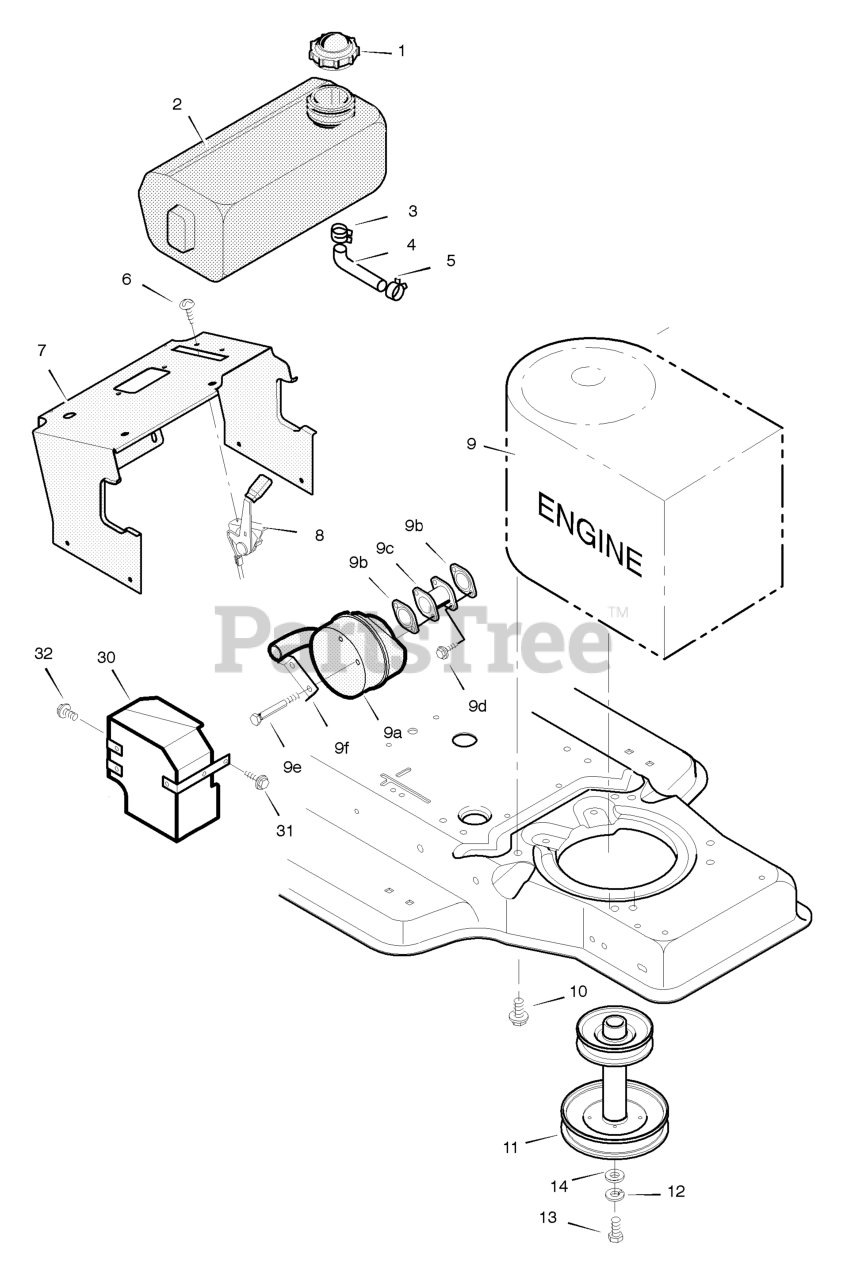

387003x8A - Murray 38" Lawn Tractor (2004) Engine Mount Parts Diagram

38" Lawn Tractor

Engine Mount Parts Diagram

  • Title

1

Murray 092317MA

Fuel Cap

Note: (Included with Ref. No. 2)

$10.99

$

In Stock, Qty 7

0

2

Murray 1001752

Fuel Tank

$

$

Currently unavailable

3

Murray 095197MA

Hose Clamp
(Superseded to 791850)

Note: (Included with Ref. No. 2)

$3.49

$

In Stock, Qty 20+

0

4

Murray 7601033MA

Fuel Line (Must cut to length)

Note: (Included with Ref. No. 2)

$22.99

$

Usually ships in 2-12 days

0

5

Murray 095197MA

Hose Clamp
(Superseded to 791850)

Note: (Included with Ref. No. 2)

$3.49

$

In Stock, Qty 20+

0

6

Murray 26X201MA

Screw

$4.49

$

In Stock, only 2 left!

0

7

Murray 092331E700

Support, Dash

$148.99

$

In Stock, only 1 left!

0

8

Murray 1001689MA

Throttle Control

$17.99

$

Usually ships in 2-12 days

0

9

Engine *

$

$

Not available

9A

Murray 1001720MA

Muffler

$55.99

$

Usually ships in 2-12 days

0

9B

Murray 692236

GASKET, Exhaust

$5.49

$

In Stock, Qty 20+

0

9C

Murray 1001737MA

Adapter, Muffler

$

$

Not available

9D

Murray 06X103MA

Screw, Adapter

$6.49

$

Usually ships in 2-12 days

0

9E

Murray 009X59MA

Bolt, Muffler

$6.99

$

In Stock, Qty 9

0

9F

Murray 092378MA

Lock, Screw

$5.49

$

In Stock, Qty 9

0

10

Murray 0025X7MA

Bolt, Engine Mount
(Superseded to 2828635SM)

$4.99

$

In Stock, Qty 20+

0

11

Murray 690442MA

Stack Pulley Assembly
(Superseded to 690442ZMA)

$121.99

$

Usually ships in 2-12 days

0

12

Murray 019X35MA

Lockwasher

$4.99

$

In Stock, Qty 11

0

13

Murray 01X140MA

Bolt, Hex

$5.49

$

In Stock, Qty 15

0

14

Murray 17X170MA

Washer

$

$

Not available

30

Murray 1001744MA

Shield, Heat

$98.99

$

Usually ships in 2-12 days

0

31

Murray 26X263MA

Screw

$4.99

$

In Stock, only 1 left!

0

32

Murray 06X104MA

Screw

$4.49

$

Usually ships in 2-12 days

0
