387002x92NA - Briggs & Stratton 38" Lawn Tractor (2004) Chassis & Hood Parts Diagram

38" Lawn Tractor

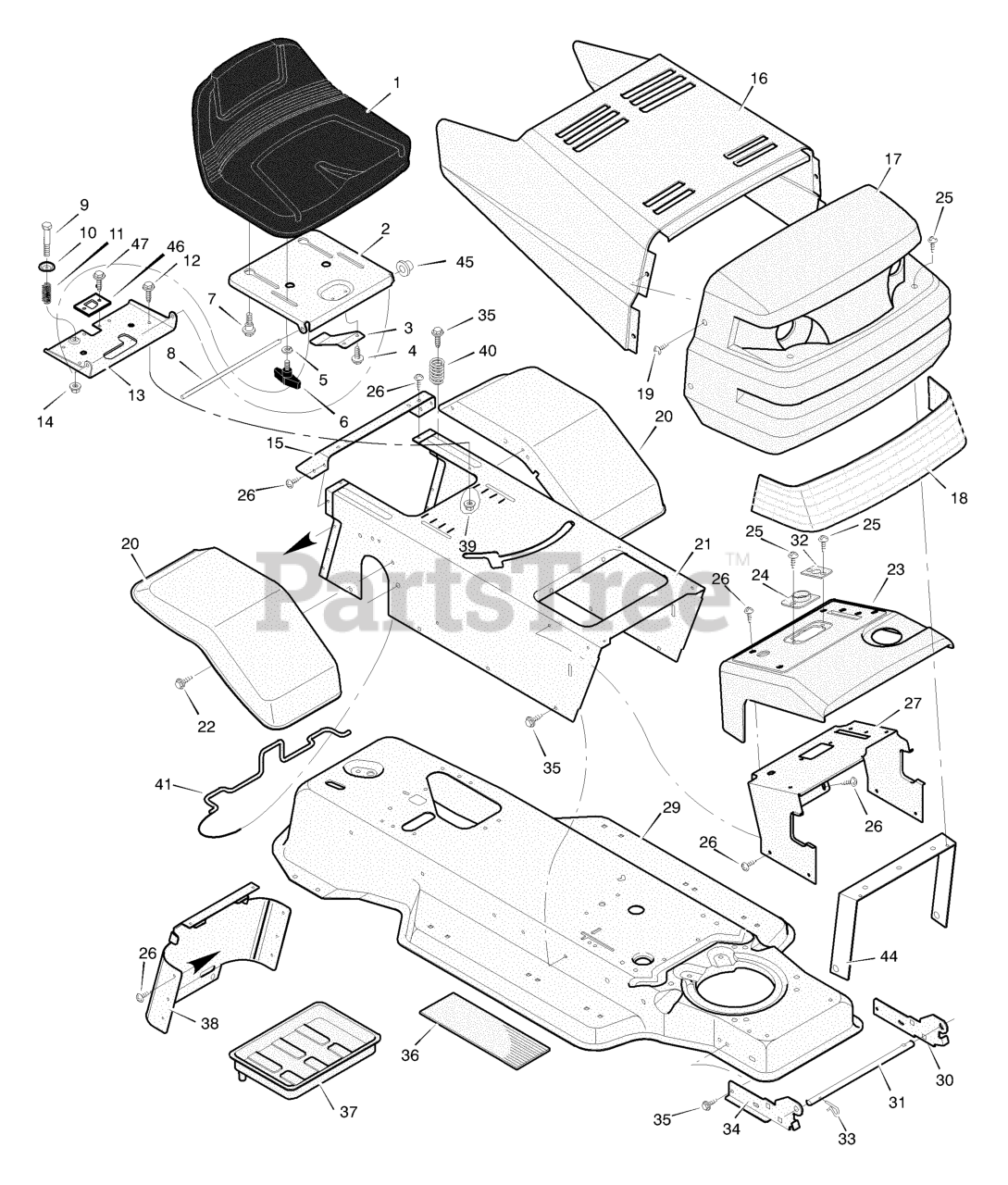

Chassis & Hood Parts Diagram

  • Title
1

Murray 690566MA

Seat
(Superseded to 1687498YP)

$445.99

$

Usually ships in 2-12 days

0

2

Murray 094154E701MA

Support, Seat
(Superseded to 7300875BMYP)

$65.99

$

Usually ships in 2-12 days

0

3

Murray 094057MA

Spring, Seat

$5.99

$

Usually ships in 2-12 days

0

4

$4.49

$

In Stock, only 1 left!

0

5

Murray 017X47MA

Washer
(Superseded to 704015)

$4.49

$

Usually ships in 2-12 days

0

6

Murray 1001054MA

Bolt, Wing

$6.99

$

Usually ships in 2-12 days

0

$3.49

$

Usually ships in 2-12 days

0

8

Murray 094156ZMA

Rod, Pivot

$7.99

$

Usually ships in 2-12 days

0

9

Murray 009X55MA

Bolt, Shoulder

$3.49

$

Usually ships in 2-12 days

0

10

$

$

Currently unavailable

11

Murray 164X31

Spring, Compression
(Superseded to 164X31MA)

$7.99

$

In Stock, only 2 left!

0

12

Murray 001X45MA

Bolt, Hex
(Superseded to 703822)

$4.49

$

In Stock, only 1 left!

0

13

Murray 1001648E701MA

Bracket, Pivot

$42.99

$

Usually ships in 2-12 days

0

$4.49

$

Usually ships in 2-12 days

0

15

Murray 091724E245MA

Fender, Apron

$27.99

$

Usually ships in 2-12 days

0

$273.99

$

Usually ships in 2-12 days

0

17

Murray 092350MA

Grille Assembly

Note: (includes Lens)

$

$

Not available

18

$79.99

$

Usually ships in 2-12 days

0

19

$4.49

$

Usually ships in 2-12 days

0

20

$

$

Currently unavailable

21

Murray 1001646E245

Console Assembly

$

$

Currently unavailable

22

$4.99

$

In Stock, only 1 left!

0

23

Murray 070138MA

Dash Panel

$

$

Not available

24

Murray 092399

Bearing, Steering

$4.99

$

Usually ships in 2-12 days

0

25

$4.49

$

In Stock, only 2 left!

0

26

Murray 26X270

Screw
(Superseded to 26X270MA)

$4.49

$

In Stock, Qty 13

0

27

Murray 092331E700

Support, Dash

$148.99

$

In Stock, only 1 left!

0

29

Murray 092815E245

Frame Assembly

$

$

Currently unavailable

30

Murray 092347E701MA

Bracket, Left Grille

$8.49

$

Usually ships in 2-12 days

0

31

Murray 092332 Z

Rod, Pivot

$

$

Currently unavailable

32

Murray 092398

Bearing, PTO

$3.99

$

Usually ships in 2-12 days

0

33

Murray 0031X4MA

Pin, Hair
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

34

Murray 092346E701MA

Bracket, Right Grille

$5.49

$

Usually ships in 2-12 days

0

35

$

$

Not available

36

$11.99

$

Usually ships in 2-12 days

0

37

Murray 091895MA

Tray, Battery

$

$

Not available

38

Murray 092443E245

Cap, Console

$39.99

$

Usually ships in 2-12 days

0

$3.99

$

Usually ships in 2-12 days

0

40

Murray 164X30MA

Spring, Compression

$15.99

$

Usually ships in 2-12 days

0

41

Murray 092725 Z

Clamp, Battery

$

$

Currently unavailable

44

Murray 092448

Brace, Grille

$

$

Not available

45

Murray 028X23MA

Cap, Push On
(Superseded to 703948)

$4.49

$

In Stock, Qty 20+

0

46

Murray 1001650 Z

Plate Assembly, Switch

$

$

Currently unavailable

47

$3.99

$

Usually ships in 2-12 days

0

--

Murray F-040700C

Instruction Book & Parts List

$

$

Currently unavailable
