38700 - Toro Walk-Behind Rotary Power Broom (SN: 400000000 - 999999999) ENGINE ASSEMBLY Parts Diagram

Walk-Behind Rotary Power Broom

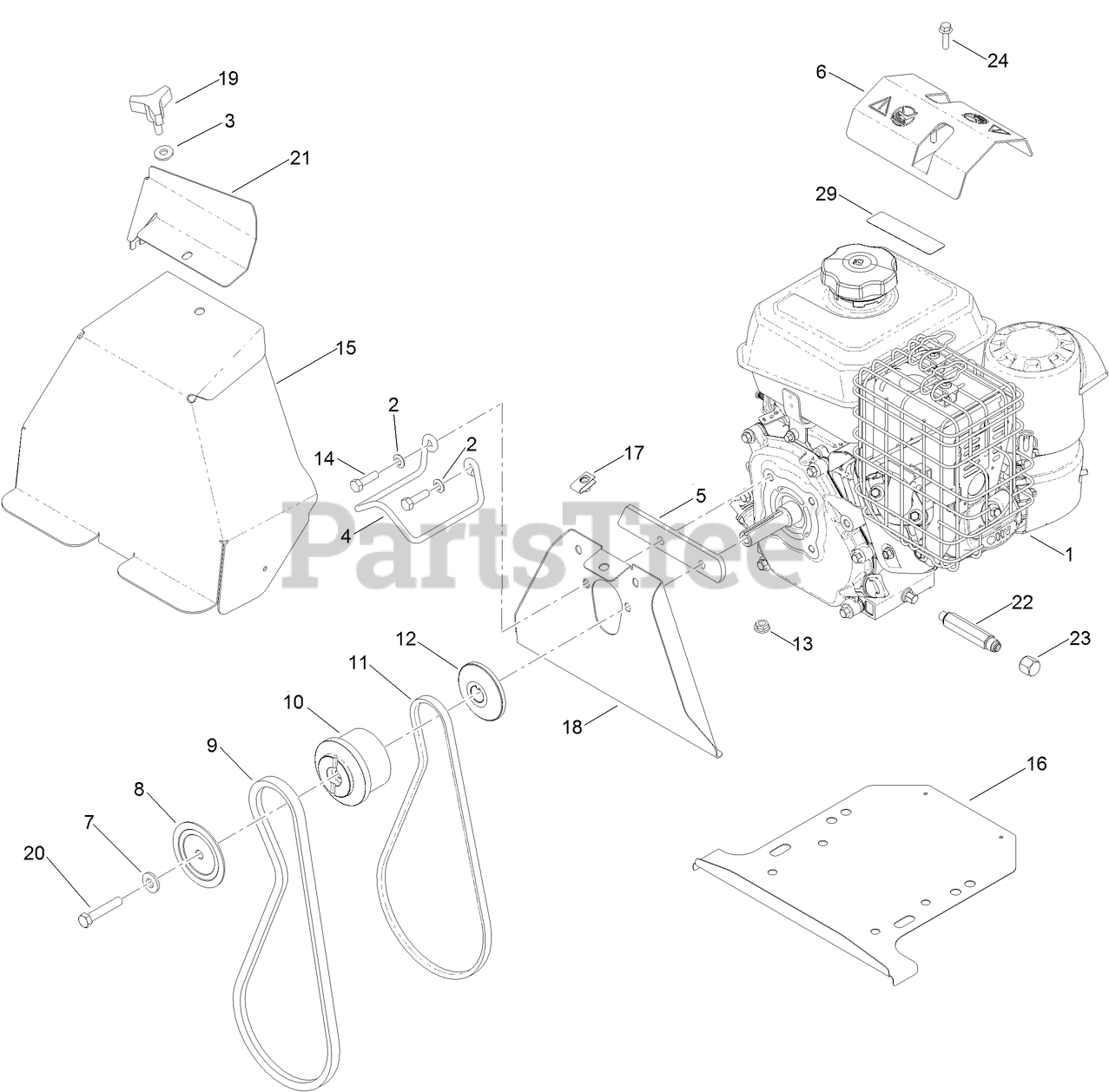

ENGINE ASSEMBLY Parts Diagram

  • Title

1

ENGINE-KOHLER, CH270

Note: Not serviced separately

$

$

Not available

1

ENGINE-KOHLER, CH270

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

2

Toro 3290-475

WASHER-BELLEVILLE

$3.49

$

Usually ships in 3-6 days

0

3

Toro 1-303334

WASHER-SPRING

$2.99

$

In Stock, Qty 20+

0

4

Toro 107-3835

GUIDE-BELT
(Superseded to 136-7317)

$19.99

$

Usually ships in 3-6 days

0

5

Toro 116-7659-03

SPACER-COVER, BELT

$13.99

$

Usually ships in 3-6 days

0

6

Toro 126-4178-03

DEFLECTOR-DEBRIS, MUFFLER

$70.99

$

Usually ships in 3-6 days

0

7

Toro 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

8

Toro 112-8139

SHEAVE-HALF, IMPELLER

Note: Apply anti-seize compound in bore.

$15.99

$

Usually ships in 3-6 days

0

9

Toro 1-653332

Belt-Blower

$31.99

$

Usually ships in 3-6 days

0

10

Toro 112-8117

PULLEY-ENGINE, CENTER

Note: Apply anti-seize compound in bore.

$66.99

$

Usually ships in 3-6 days

0

11

Toro 94-8812

V BELT-TRACTION

$31.99

$

In Stock, only 3 left!

0

12

Toro 112-8138

SHEAVE-HALF, TRACTION

Note: Apply anti-seize compound in bore.

$15.99

$

Usually ships in 3-6 days

0

13

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

14

Toro 3210-6

SCREW-HH

$2.49

$

Usually ships in 3-6 days

0

15

Toro 116-7258-01

COVER-BELT

$94.99

$

Usually ships in 3-6 days

0

16

Toro 116-8761-01

SHIELD-DRIVE

$42.99

$

Usually ships in 3-6 days

0

17

Toro 94-2413

NUT-U

$2.99

$

In Stock, Qty 19

0

18

Toro 116-7431-01

COVER-BELT, BACK

$38.99

$

Usually ships in 3-6 days

0

19

Toro 106-2240

KNOB

$14.99

$

Usually ships in 3-6 days

0

20

Toro 3211-9

SCREW-HH

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$2.99

$

Usually ships in 3-6 days

0

21

Toro 116-7922-01

SHIELD-ICE

$23.99

$

Usually ships in 3-6 days

0

22

Toro 116-8721

ADAPTER

$47.99

$

Usually ships in 3-6 days

0

23

Toro 01-201-4520

CAP

$4.49

$

Usually ships in 3-6 days

0

24

Toro 33103-025

SCREW-HHF

$6.49

$

Usually ships in 3-6 days

0

29

Toro 117-2718

DECAL-ARRESTER, SPARK

$8.49

$

In Stock, only 2 left!

0
