38681 (PM 50) - Gravely Pro-Master Zero-Turn Mower, 16hp Kohler (SN: 000101 & Above) TRANSMISSION FRAME Parts Diagram

Pro-Master Zero-Turn Mower, 16hp Kohler

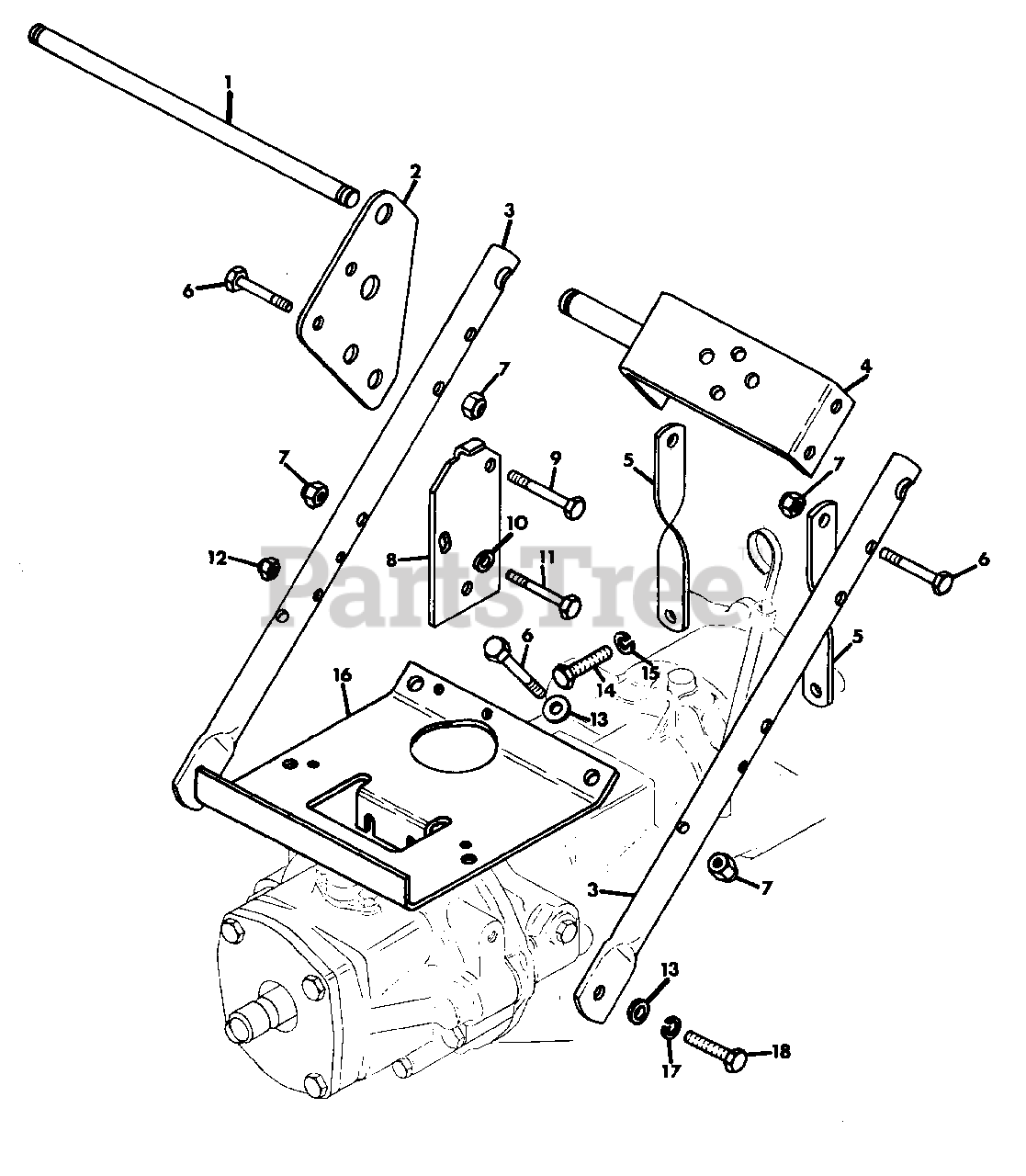

TRANSMISSION FRAME Parts Diagram

  • Title

1

Gravely 034461

SHAFT CROSS
(Superseded to 08906500)

$

$

Not available

2

Gravely 034563

BRACKET, INTERLOCK
(Superseded to 21230400)

$

$

Not available

3

Gravely 034564

TUBE, SUPPORT
(Superseded to 21230500)

$

$

Not available

4

Gravely 034578

WELDMENT, BRACE
(Superseded to 21231300)

$

$

Not available

5

Gravely 010655

BRACE, HANDLE
(Superseded to 21333100)

$

$

Not available

6

Gravely 180132

BOLT, HEX 3/8-16X2.25
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

7

Gravely 456004

NUT, LOCK 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, only 2 left!

0

8

Gravely 034547

BRACKET, HI-LO
(Superseded to 21230200)

$

$

Not available

9

Gravely 180130

BOLT, HEX 3/8-16X2.00
(Superseded to 05901718)

$2.99

$

In Stock, only 1 left!

0

10

Gravely 120392

WASHER, FLAT .281X.625X.065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 180042

BOLT, HEX 1/4-20X1.75
(Superseded to 05964700)

$2.49

$

In Stock, only 1 left!

0

12

Gravely 419454

NUT, LOCK 1/4-20
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

13

Gravely 120394

WASHER, FLAT .406X.812X.065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 180149

BOLT, HEX 7/16-14X1.50
(Superseded to 05901633)

$3.49

$

In Stock, Qty 11

0

15

Gravely 131100

WASHER, LOCK 7/16
(Superseded to 06310700)

$2.99

$

Usually ships in 4-12 days

0

16

Gravely 037704

BOX, BATTERY
(Superseded to 08925300)

$

$

Not available

17

Gravely 120382

WASHER, LOCK 3/8
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 180125

BOLT, HEX 3/8-16X1.38
(Superseded to 05934900)

$

$

Not available
