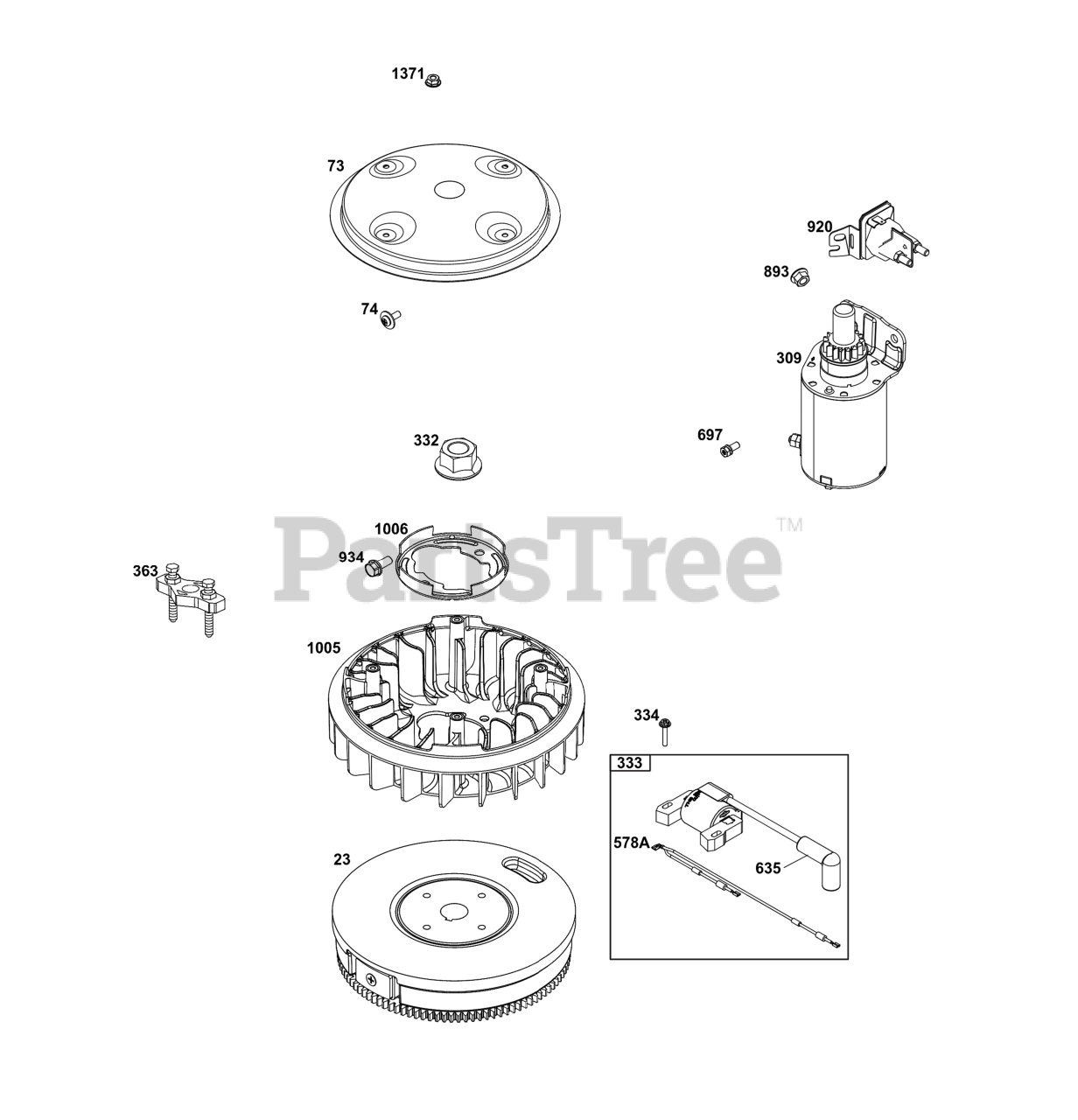

386777-0141-G1 - Briggs & Stratton Vertical Engine Flywheel, Ignition, and Starter Group Parts Diagram

Vertical Engine

Flywheel, Ignition, and Starter Group Parts Diagram

  • Title

23

Briggs & Stratton 841050

FLYWHEEL

$274.99

$

Usually ships in 2-12 days

0

73

Briggs & Stratton 841440

SCREEN, Rotating

$37.99

$

In Stock, only 2 left!

0

74

Briggs & Stratton 841441

SCREW
(Superseded to 84007750)

Note: (Rotating Screen)

$3.99

$

Usually ships in 2-12 days

0

309

Briggs & Stratton 845759

MOTOR, Starter

$396.99

$

Usually ships in 2-12 days

0

332

Briggs & Stratton 690887

NUT

Note: (Flywheel)

$5.49

$

Usually ships in 2-12 days

0

333

Briggs & Stratton 845606

ARMATURE, Magneto
(Superseded to 84003819)

$71.99

$

In Stock, Qty 20+

0

334

Briggs & Stratton 692066

SCREW

Note: (Magneto Armature)

$3.49

$

In Stock, Qty 7

0

363

Briggs & Stratton 19203

PULLER, Flywheel

$23.99

$

In Stock, only 1 left!

0

635

Briggs & Stratton 84005066

BOOT, Spark Plug

$12.99

$

Usually ships in 2-12 days

0

697

Briggs & Stratton 806474

SCREW

Note: (Starter Motor) (Drive Cap)

$5.49

$

Usually ships in 2-12 days

0

893

Briggs & Stratton 845758

NUT

Note: (Starter Solenoid)

$2.99

$

In Stock, only 2 left!

0

920

Briggs & Stratton 847694

SOLENOID, Starter
(Superseded to 84008635)

$61.99

$

Usually ships in 2-12 days

0

934

Briggs & Stratton 692056

SCREW

Note: (Fan Retainer)

$5.99

$

In Stock, Qty 20+

0

1005

Briggs & Stratton 841439

FAN, Flywheel

$34.99

$

In Stock, only 1 left!

0

1006

Briggs & Stratton 690452

RETAINER, Fan

$10.99

$

Usually ships in 2-12 days

0

1369

Briggs & Stratton 846284

GUARD, Flywheel Fan

$51.99

$

Usually ships in 2-12 days

0

1371

Briggs & Stratton 690939

NUT

Note: (Flywheel Fan Guard)

$3.49

$

In Stock, only 2 left!

0
