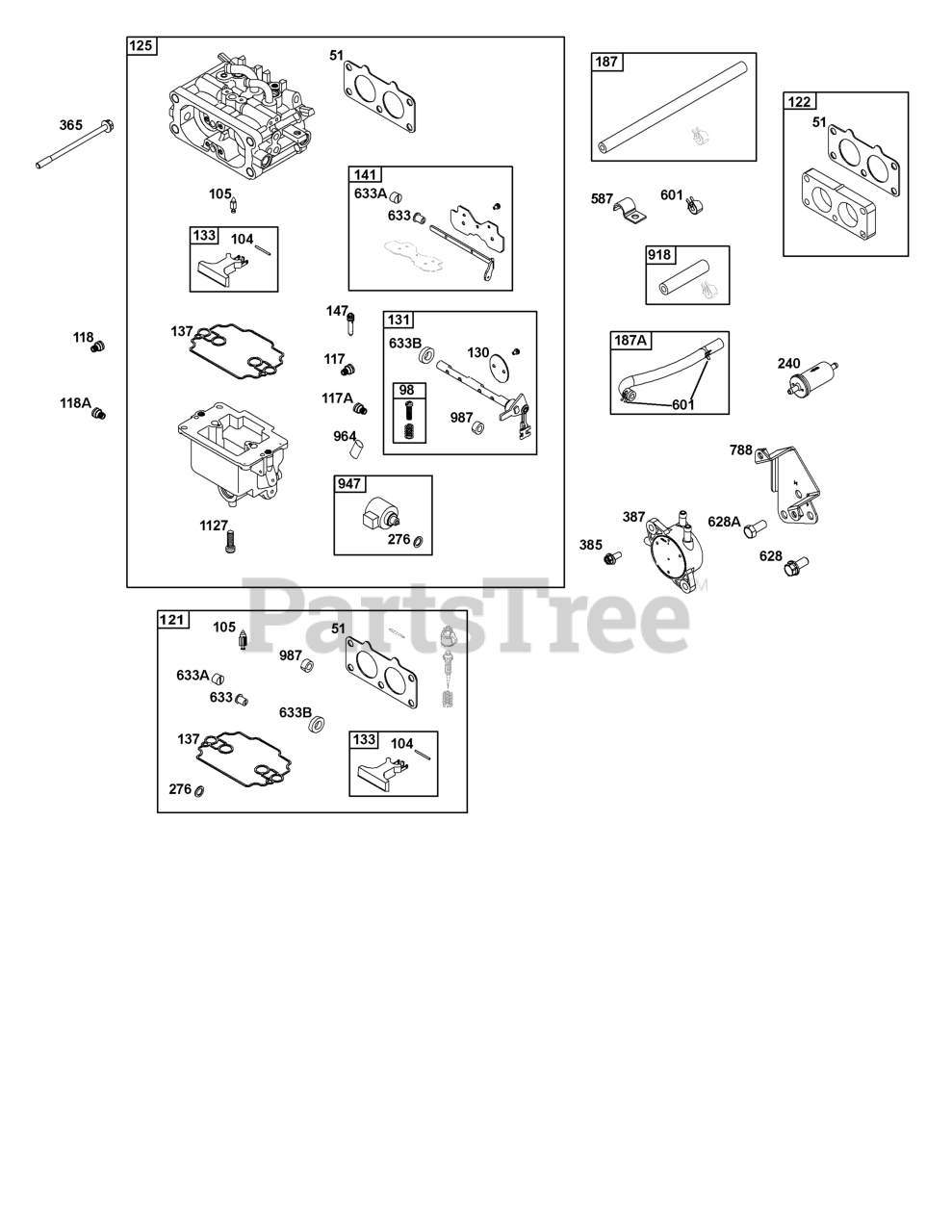

386777-0141-G1 - Briggs & Stratton Vertical Engine Carburetor and Fuel Supply Group Parts Diagram

Vertical Engine

Carburetor and Fuel Supply Group Parts Diagram

  • Title

51

Briggs & Stratton 690950

GASKET, Intake

Note: (Part information located in Cylinder Head Group.)

$2.99

$

In Stock, Qty 15

0

98

Briggs & Stratton 809716

KIT, Idle Speed

$41.99

$

Usually ships in 2-12 days

0

104

Briggs & Stratton 690739

PIN, Float Hinge

$6.49

$

In Stock, only 1 left!

0

105

Briggs & Stratton 809759

VALVE, Float Needle

$

$

Not available

117

Briggs & Stratton 843783

JET, Main

Note: (Standard) (Left Jet)

$15.99

$

Usually ships in 2-12 days

0

117A

Briggs & Stratton 809649

JET, Main

Note: (Standard) (Right Jet)

$23.99

$

Usually ships in 2-12 days

0

118

Briggs & Stratton 809708

JET, Main

Note: (High Altitude) (Left Jet)

$18.99

$

Usually ships in 2-12 days

0

118A

Briggs & Stratton 842153

JET, Main

Note: (High Altitude) (Right Jet)

$24.99

$

Usually ships in 2-12 days

0

121

Briggs & Stratton 843787

KIT, Carburetor Overhaul

Note: (Service Kits may include extra parts not specific to this engine.)

$171.99

$

Usually ships in 2-12 days

0

122

Briggs & Stratton 690870

SPACER, Carburetor

$14.99

$

In Stock, only 1 left!

0

125

Briggs & Stratton 845587

CARBURETOR

$333.99

$

Usually ships in 2-12 days

0

130

Briggs & Stratton 809642

VALVE, Throttle

$21.99

$

Usually ships in 2-12 days

0

131

Briggs & Stratton 809718

KIT, Throttle Shaft

$83.99

$

Usually ships in 2-12 days

0

133

Briggs & Stratton 809637

FLOAT, Carburetor

$

$

Not available

137

Briggs & Stratton 809645

GASKET, Float Bowl

$9.99

$

In Stock, Qty 13

0

141

Briggs & Stratton 843785

KIT, Choke Shaft

$50.99

$

Usually ships in 2-12 days

0

147

Briggs & Stratton 841920

JET, Pilot

$24.99

$

Usually ships in 2-12 days

0

187

Briggs & Stratton 791766

LINE, Fuel

$7.99

$

In Stock, Qty 20+

0

187A

Briggs & Stratton 842447

LINE, Fuel
(Superseded to 791744)

$14.99

$

In Stock, only 2 left!

0

240

Briggs & Stratton 845125

FILTER, Fuel

$7.49

$

In Stock, Qty 20+

0

276

Briggs & Stratton 806476

WASHER, Sealing

$6.99

$

In Stock, only 2 left!

0

365

Briggs & Stratton 690866

SCREW

Note: (Carburetor/Throttle Body)

$9.49

$

Usually ships in 2-12 days

0

385

Briggs & Stratton 807084

SCREW

Note: (Fuel Pump)

$3.49

$

In Stock, only 2 left!

0

387

Briggs & Stratton 597338

PUMP, Fuel

$27.99

$

In Stock, Qty 20+

0

587

Briggs & Stratton 690423

CLAMP, Tube

$4.99

$

Usually ships in 2-12 days

0

601

Briggs & Stratton 691038

CLAMP, Hose

$3.99

$

In Stock, Qty 17

0

628

Briggs & Stratton 692062

SCREW

Note: (Fuel Pump Bracket)

$3.49

$

In Stock, Qty 20+

0

628A

Briggs & Stratton 806660

SCREW

Note: (Fuel Pump Bracket)

$3.99

$

In Stock, only 1 left!

0

633

Briggs & Stratton 809638

SEAL, Choke/Throttle Shaft

$7.49

$

In Stock, only 1 left!

0

633A

Briggs & Stratton 809644

SEAL, Choke/Throttle Shaft

$8.49

$

In Stock, only 1 left!

0

633B

Briggs & Stratton 809641

SEAL, Choke/Throttle Shaft

$6.99

$

In Stock, only 1 left!

0

788

Briggs & Stratton 691559

BRACKET, Fuel Pump

$24.99

$

In Stock, only 1 left!

0

918

Briggs & Stratton 791880

LINE, Fuel

$11.99

$

Usually ships in 2-12 days

0

947

Briggs & Stratton 842109

SOLENOID, Fuel

$

$

Not available

964

Briggs & Stratton 809640

CAP, Carburetor

$10.99

$

Usually ships in 2-12 days

0

987

Briggs & Stratton 809639

SEAL, Choke/Throttle Shaft

$7.49

$

Usually ships in 2-12 days

0

1127

Briggs & Stratton 809715

SCREW

Note: (Float Bowl to Carburetor Body)

$3.49

$

Usually ships in 2-12 days

0
