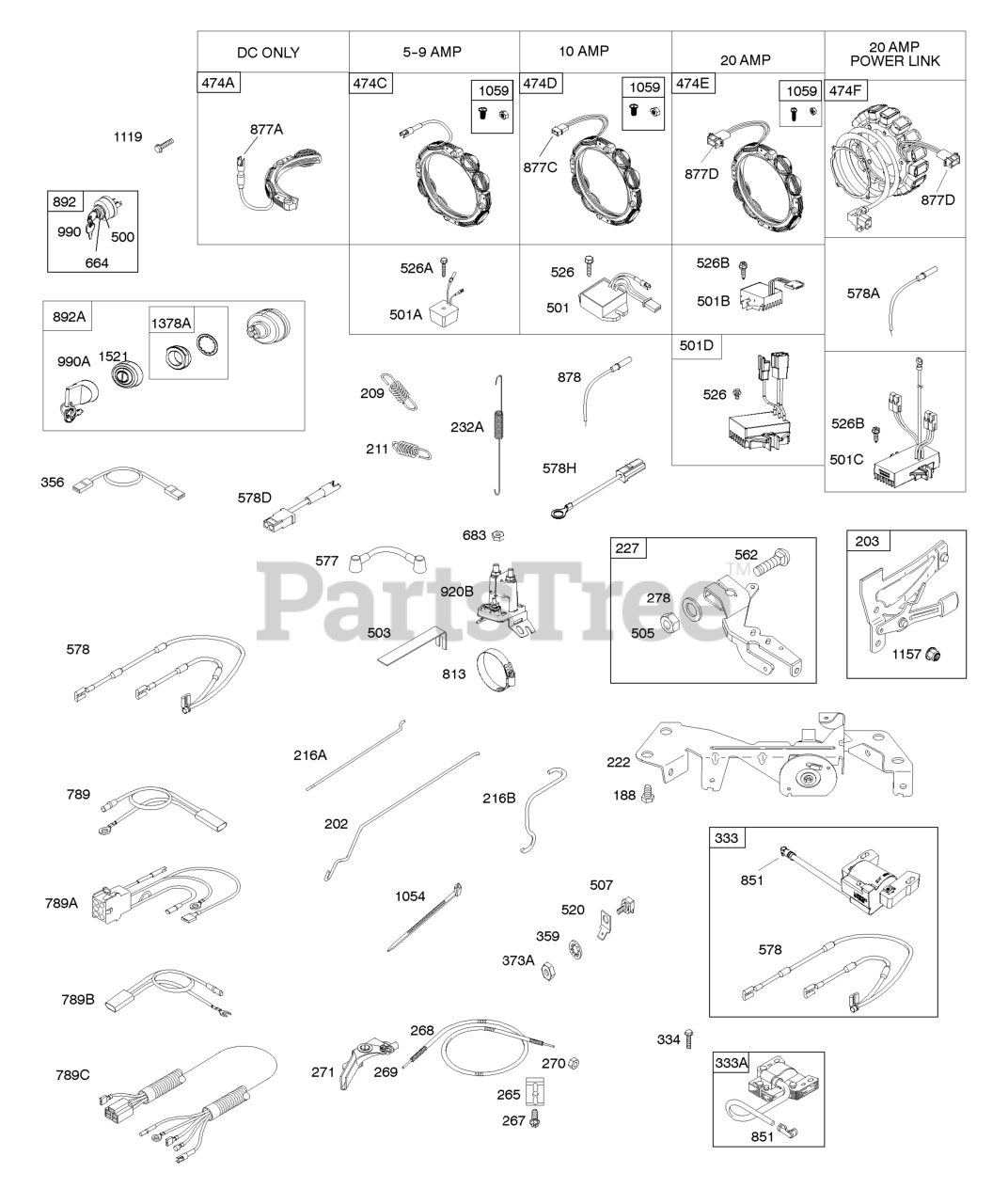

386777-0132-B1 - Briggs & Stratton Vertical Engine Alternator, Controls, Ignition, overnor Spring Parts Diagram

Vertical Engine

Alternator, Controls, Ignition, overnor Spring Parts Diagram

  • Title

188

Briggs & Stratton 692056

Screw

Note: (Control Bracket) (M8x14mm)

$5.99

$

In Stock, Qty 5

0

188

Briggs & Stratton 692062

Screw

Note: (Control Bracket) (M8x18mm)

$3.49

$

In Stock, Qty 20+

0

202

Briggs & Stratton 690867

Link-Mechanical Governor

$8.49

$

Usually ships in 2-12 days

0

203

Briggs & Stratton 808753

Crank-Bell

$38.99

$

In Stock, only 1 left!

0

209

Briggs & Stratton 692070

Spring-Governor

$5.99

$

In Stock, Qty 10

0

211

Briggs & Stratton 692069

Spring-Governed Idle

$6.49

$

In Stock, Qty 8

0

216A

Briggs & Stratton 690871

Link-Choke

$7.99

$

In Stock, only 2 left!

0

216B

Briggs & Stratton 691542

Link-Choke

$6.49

$

In Stock, Qty 20+

0

222

Briggs & Stratton 845305

Bracket-Control
(Superseded to 808454)

$38.99

$

In Stock, only 2 left!

0

227

Briggs & Stratton 690236

Lever-Governor Control

$27.99

$

In Stock, only 1 left!

0

232A

Briggs & Stratton 690874

Spring-Governor Link

$10.99

$

In Stock, only 2 left!

0

265

Briggs & Stratton 691024

CLAMP, Casing

$3.99

$

In Stock, Qty 7

0

267

Briggs & Stratton 841552

SCREW

Note: (Casing Clamp) (M5x20mm)

$3.49

$

In Stock, only 1 left!

0

267

Briggs & Stratton 692083

Screw

Note: (Casing Clamp) (M5x12mm)

$3.49

$

In Stock, only 1 left!

0

268

Briggs & Stratton 691025

CASING, Control Wire

Note: (Cut To Required Length)

$

$

Not available

269

Briggs & Stratton 691026

WIRE, Control
(Superseded to 26634)

Note: (Cut To Required Length)

$

$

Not available

270

Briggs & Stratton 691027

NUT

Note: (Control Wire Casing)

$13.99

$

In Stock, only 2 left!

0

271

Briggs & Stratton 691028

Lever-Control

$45.99

$

Usually ships in 2-12 days

0

278

Briggs & Stratton 842122

Washer

Note: (Governor Control Lever)

$5.49

$

In Stock, only 1 left!

0

333

Briggs & Stratton 845606

Armature-Magneto
(Superseded to 84003819)

Note: Used After Code Date 09100700

$71.99

$

In Stock, Qty 20+

0

333A

Briggs & Stratton 591459

ARMATURE, Magneto

Note: Used Before Code Date 09100800

$53.99

$

In Stock, Qty 20+

0

334

Briggs & Stratton 692066

Screw

Note: (Magneto Armature)

$3.49

$

In Stock, Qty 7

0

359

Briggs & Stratton 691077

Washer (Ground Terminal)

Note: (Ground Terminal)

$3.49

$

In Stock, only 2 left!

0

373A

Briggs & Stratton 691612

NUT

Note: (Ground Terminal)

$3.49

$

In Stock, only 1 left!

0

474E

Briggs & Stratton 846882

Alternator

Note: (20 Amp) Used After Code Date 16063000

$118.99

$

In Stock, Qty 20+

0

474E

Briggs & Stratton 696579

Alternator

Note: (20 Amp) Used Before Code Date 16070100

$107.99

$

In Stock, Qty 6

0

500

Briggs & Stratton 691086

WASHER

Note: (Key Switch)

$4.49

$

Usually ships in 2-12 days

0

501B

Briggs & Stratton 691573

Regulator
(Superseded to 84004837)

Note: (20 Amp) Used Before Code Date 16070100

$99.99

$

In Stock, Qty 14

0

501D

Briggs & Stratton 593843

REGULATOR

Note: (20 Amp) Used After Code Date 16063000

$57.99

$

In Stock, only 1 left!

0

503

Briggs & Stratton 845016

Strap-Starter

Note: (60mm Long)

$5.99

$

Usually ships in 2-12 days

0

505

Briggs & Stratton 690238

Nut

Note: (Governor Control Lever)

$3.49

$

In Stock, only 1 left!

0

507

Briggs & Stratton 691972

Insulator

$8.49

$

In Stock, only 3 left!

0

520

Briggs & Stratton 691084

Terminal-Ground

$6.49

$

In Stock, only 2 left!

0

526

Briggs & Stratton 692067

SCREW

Note: (Regulator) (M6x12mm)

$3.99

$

In Stock, Qty 9

0

526A

Briggs & Stratton 690717

Screw

Note: (Regulator) (M6x30mm)

$3.49

$

Usually ships in 2-12 days

0

526B

Briggs & Stratton 691547

Screw

Note: (Regulator) (M6x28mm)

$5.99

$

In Stock, only 1 left!

0

562

Briggs & Stratton 690239

Bolt

Note: (Governor Control Lever)

$5.49

$

Usually ships in 2-12 days

0

577

Briggs & Stratton 690795

CABLE, Starter

$18.99

$

In Stock, only 2 left!

0

578D

Briggs & Stratton 847479

Wire Assembly

Note: Used Before Code Date 16063000

$36.99

$

Usually ships in 2-12 days

0

664

Briggs & Stratton 691087

NUT

Note: (Key Switch)

$4.49

$

Usually ships in 2-12 days

0

683

Briggs & Stratton 691029

NUT

Note: (Starter Solenoid) (1/4-20)

$5.49

$

Usually ships in 2-12 days

0

683

Briggs & Stratton 845758

Nut

Note: (Starter Solenoid) (M6)

$2.99

$

In Stock, only 1 left!

0

789A

Briggs & Stratton 698332

Harness-Wiring

$28.99

$

Usually ships in 2-12 days

0

789C

Briggs & Stratton 691996

Harness-Wiring

$44.99

$

Usually ships in 2-12 days

0

789B

Briggs & Stratton 844914

Harness-Wiring

$42.99

$

Usually ships in 2-12 days

0

813

Briggs & Stratton 690635

CLAMP

$24.99

$

Usually ships in 2-12 days

0

851

Briggs & Stratton 493880S

TERMINAL, Spark Plug

$3.49

$

In Stock, Qty 20+

0

877C

Briggs & Stratton 399916

Wire/connector-Alternator (2 Wires, 7-53/64" Long)(2 Bare Wire Ends, And Insulated Snap Connectmale)

Note: (2 Wires, 7-53/64" Long)(2 Bare Wire Ends, And Insulated Snap ConnectMale Pin Terminal)

$12.99

$

Usually ships in 2-12 days

0

877D

Briggs & Stratton 698092

Wire/Connector-Alternator

$15.99

$

Usually ships in 2-12 days

0

878

Briggs & Stratton 691362

Harness-Alternator

$17.99

$

Usually ships in 2-12 days

0

892

Briggs & Stratton 692318

Switch-Key

$29.99

$

In Stock, Qty 19

0

990

Briggs & Stratton 691959

SET, Key

$7.99

$

In Stock, Qty 8

0

990A

Briggs & Stratton 847146

Key Set

$31.99

$

In Stock, only 2 left!

0

1054

Briggs & Stratton 280275

Tie-Cable

$4.49

$

Usually ships in 2-12 days

0

1059

Briggs & Stratton 698516

KIT, Screw/Washer

$5.49

$

Usually ships in 2-12 days

0

1119

Briggs & Stratton 691552

SCREW

Note: (Alternator)

$3.99

$

Usually ships in 2-12 days

0

1157

Briggs & Stratton 690713

Nut
(Superseded to 806447)

Note: (Bell Crank)

$

$

Not available

1378A

Briggs & Stratton 847144

Washer/Nut Set

$10.99

$

Usually ships in 2-12 days

0

1521

Briggs & Stratton 847150

Cap-Switch

$8.49

$

In Stock, Qty 16

0
