38660 (928 OE) - Toro 28" Power Max Heavy-Duty Snow Thrower (SN: 314000001 - 314999999) (2014) LOWER HANDLE AND HEADLAMP ASSEMBLY Parts Diagram

28" Power Max Heavy-Duty Snow Thrower

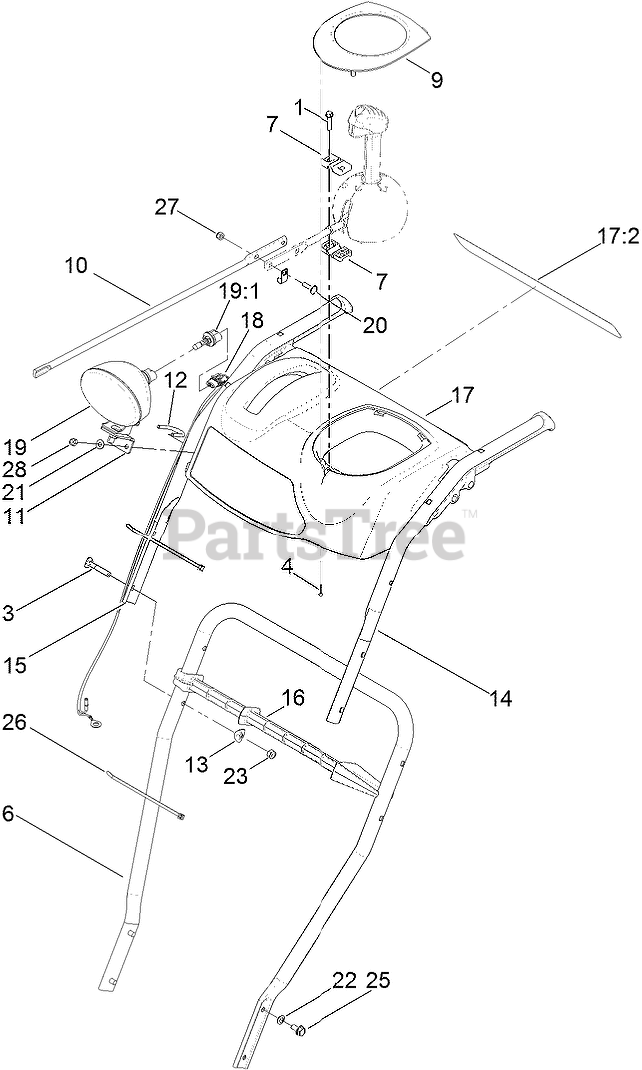

LOWER HANDLE AND HEADLAMP ASSEMBLY Parts Diagram

  • Title
1

Toro 46-8092

SCREW-PLASTITE
(Superseded to 137-3101)

$1.49

$

In Stock, Qty 20+

0

3

Toro 92-2260

SCREW-HANDLE

$3.99

$

In Stock, Qty 20+

0

4

Toro 94-4496

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

6

Toro 105-9981-03

HANDLE-LOWER

$135.99

$

Usually ships in 3-6 days

0

7

Toro 105-9987

SUPPORT-ROD

$8.49

$

In Stock, Qty 7

0

9

Toro 106-4586

COVER-PANEL, CONTROL

$23.99

$

In Stock, only 2 left!

0

10

Toro 106-7283

ROD-CHUTE, FRONT

$34.99

$

Usually ships in 3-6 days

0

11

Toro 107-1020-03

BRACKET-LIGHT

$9.49

$

Usually ships in 3-6 days

0

12

Toro 107-3024

CLAMP
(Superseded to 136-7120)

$4.99

$

Usually ships in 3-6 days

0

13

Toro 107-3844

WASHER

$1.49

$

In Stock, Qty 20+

0

14

Toro 108-0037-03

HANDLE-UPPER, LH
(Superseded to 127-5952-03)

$290.99

$

Usually ships in 3-6 days

0

15

Toro 108-0038-03

HANDLE-UPPER, RH
(Superseded to 127-5953-03)

$39.99

$

Usually ships in 3-6 days

0

16

Toro 110-3408

STICK-CLEANOUT

$17.99

$

In Stock, only 4 left!

0

17

Toro 112-6631

CONTROL PANEL ASM

$140.99

$

Usually ships in 3-6 days

0

17:2

Toro 112-6626

DECAL-PANEL, CONTROL

$21.99

$

Usually ships in 3-6 days

0

18

Toro 120-3062

HARNESS-WIRE, HEADLIGHT

$94.99

$

Usually ships in 3-6 days

0

19

Toro 120-3074

HEADLAMP ASM

$66.99

$

Usually ships in 3-6 days

0

19:1

Toro 120-3075

LAMP-12 VOLT

$35.99

$

Usually ships in 3-6 days

0

20

Toro 3229-30

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

21

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

22

Toro 3290-475

WASHER-BELLEVILLE

$2.99

$

Usually ships in 3-6 days

0

23

Toro 3296-72

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

25

Toro 32144-14

SCREW-HWHTF

$4.99

$

In Stock, only 3 left!

0

26

Toro 614249

TIE-CABLE

$1.49

$

In Stock, only 2 left!

0

27

Toro 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, Qty 6

0

28

Toro 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, Qty 6

0
