38657 (1128 OXE) - Toro 28" Power Max Snow Thrower (SN: 312000001 - 312999999) (2012) AUGER AND HOUSING ASSEMBLY Parts Diagram

28" Power Max Snow Thrower

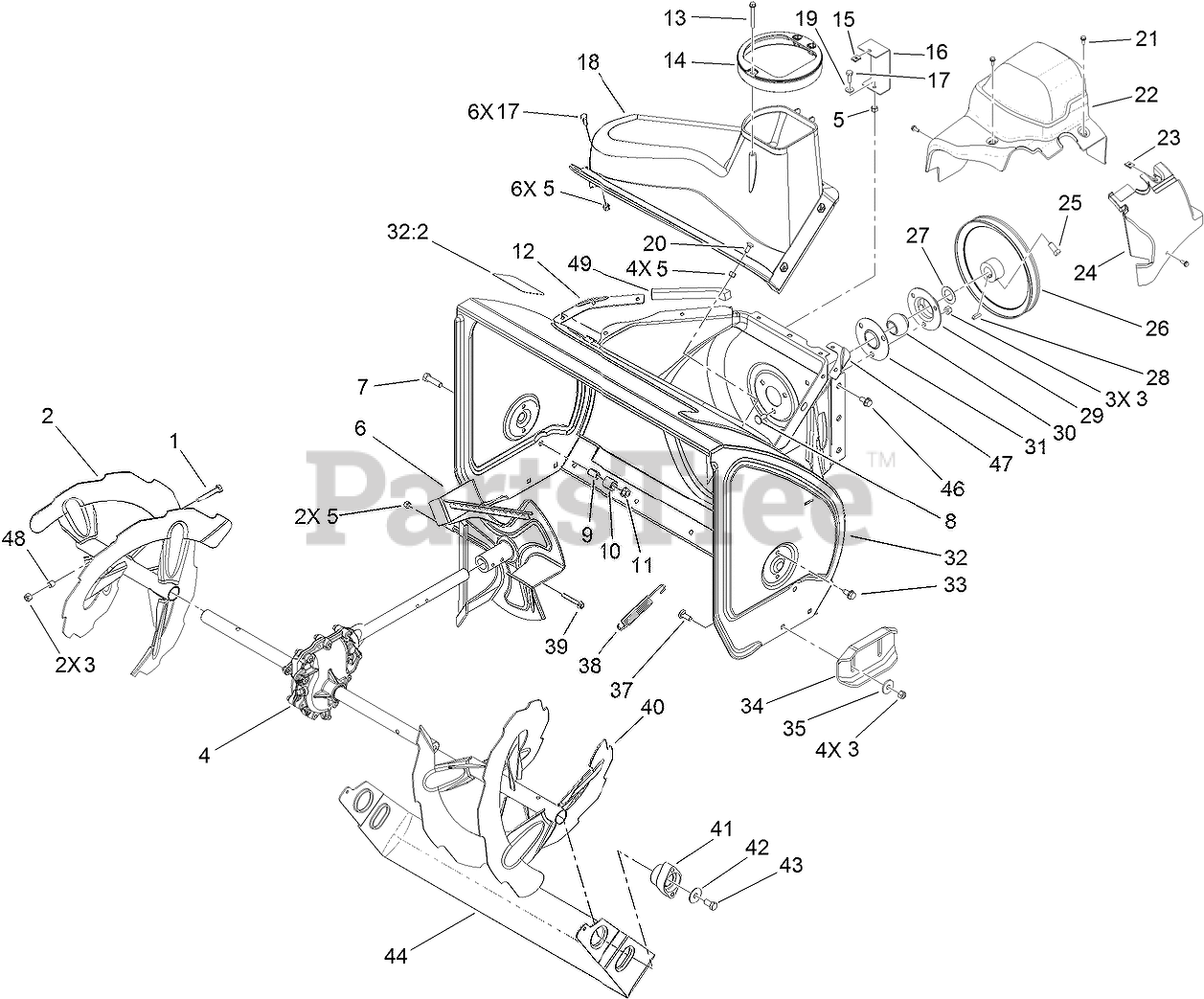

AUGER AND HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 322-11

SCREW-HH
(Superseded to 120-9738)

$1.49

$

In Stock, Qty 20+

0

2

Toro 106-7291-03

RH AUGER ASM

$249.99

$

In Stock, only 2 left!

0

3

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

4

Toro 108-7329

28 INCH AUGER GEARCASE ASM
(Superseded to 125-7926)

$681.99

$

Usually ships in 3-6 days

0

5

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 10

0

6

Toro 106-4576-03

IMPELLER ASM

$221.99

$

Usually ships in 3-6 days

0

7

Toro 323-29

SCREW-HH

$0.99

$

In Stock, Qty 6

0

8

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

9

Toro 106-4501

SPACER-SCRAPER, STOP
(Superseded to 103-9816)

$8.99

$

Usually ships in 3-6 days

0

10

Toro 106-7318

CUSHION-SCRAPER, STOP

$4.49

$

In Stock, only 3 left!

0

11

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

12

Toro 107-1017-03

SEAL-FLANGE, COVER

$4.99

$

Usually ships in 3-6 days

0

13

Toro 107-3003

SCREW-PLASTITE

$5.49

$

Usually ships in 3-6 days

0

14

Toro 107-3006

GUIDE-CHUTE

$38.99

$

In Stock, only 1 left!

0

15

Toro 107-1013

NUT-SPEED, U-TYPE

$3.49

$

In Stock, only 2 left!

0

16

Toro 107-1014-03

BRACKET-COVER, CLIP NUT

$10.99

$

Usually ships in 3-6 days

0

17

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

18

Toro 108-0017

COVER

$137.99

$

Usually ships in 3-6 days

0

19

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

20

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

21

Toro 32144-112

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

22

Toro 119-1563

COVER-BELT

$22.99

$

In Stock, only 2 left!

0

23

Toro 701493

NUT-SPEED

$6.99

$

In Stock, Qty 14

0

24

Toro 107-1016

COVER-EXTENSION, BELT

$14.99

$

In Stock, only 1 left!

0

25

Toro 3242-4

SCREW-SET, SQH

$2.99

$

In Stock, only 2 left!

0

26

Toro 62-1300

PULLEY-IMPELLER
(Superseded to 136-7119)

$50.99

$

In Stock, only 1 left!

0

27

Toro 252-80

WASHER-THRUST

$9.99

$

In Stock, only 4 left!

0

28

Toro 3257-23

KEY-WOODRUFF

$7.49

$

In Stock, Qty 7

0

29

Toro 26-6110

FLANGE-CUP, BEARING

$6.49

$

In Stock, Qty 11

0

30

Toro 63-3450

BEARING-BALL

$23.99

$

In Stock, Qty 11

0

31

Toro 26-6120

FLANGE-CUP, BEARING

$4.49

$

In Stock, Qty 10

0

32

Toro 107-3824

HOUSING-AUGER, 28 INCH

$899.99

$

Usually ships in 3-6 days

0

32:2

Toro 107-3040

DECAL-DANGER, AUGER

$34.99

$

Usually ships in 3-6 days

0

33

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

34

Toro 106-4588-01

SKID

$21.99

$

In Stock, Qty 20+

0

35

Toro 52-2861

WASHER

$1.49

$

In Stock, Qty 14

0

37

Toro 3230-16

SCREW-CARR

$2.99

$

In Stock, Qty 20+

0

38

Toro 106-4502

SPRING-SCRAPER

$21.99

$

In Stock, only 2 left!

0

39

Toro 321-11

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

40

Toro 106-7301-03

LH AUGER ASM

$249.99

$

In Stock, only 2 left!

0

41

Toro 106-4570

BEARING-AUGER

$27.99

$

Usually ships in 3-6 days

0

42

Toro 3-0750

WASHER

$9.49

$

In Stock, only 2 left!

0

43

Toro 323-4

SCREW-HH

$3.99

$

In Stock, only 1 left!

0

44

Toro 106-4590-01

SCRAPER-PIVOTING, 28 INCH

$91.99

$

In Stock, only 4 left!

0

46

Toro 32144-14

SCREW-HWHTF

$4.99

$

In Stock, only 3 left!

0

47

Toro 108-0039-03

SEAL

$8.99

$

In Stock, only 1 left!

0

48

Toro 1-633545

SPACER

$2.99

$

In Stock, Qty 15

0

49

Toro 120-0124

SEAL-HOUSING

$3.99

$

Usually ships in 3-6 days

0
