38652 (1128 OXE) - Toro 28" Power Max Snow Thrower (SN: 240000001 - 240999999) (2004) HANDLE AND CONTROL ASSEMBLY Parts Diagram

28" Power Max Snow Thrower

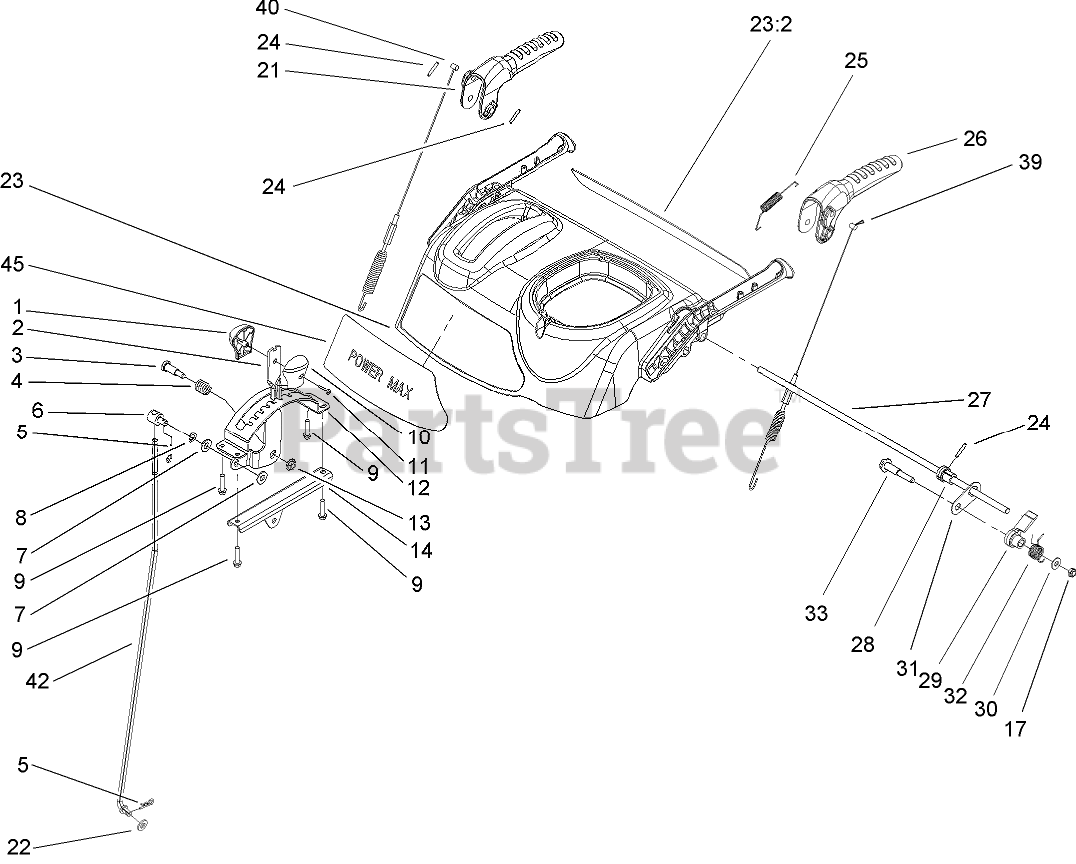

HANDLE AND CONTROL ASSEMBLY Parts Diagram

  • Title
1

Toro 106-4423

KNOB-SHIFT, RH

$7.99

$

In Stock, only 4 left!

0

2

Toro 106-7278-03

SELECTOR-SPEED

$12.99

$

Usually ships in 3-6 days

0

3

Toro 63-2650

SCREW-SHOULDER

$7.99

$

In Stock, only 2 left!

0

4

Toro 107-3017

SPRING-COMPRESSION

$2.99

$

In Stock, only 1 left!

0

5

Toro 3290-307

PIN-COTTER
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

6

Toro 101161

TRUNNION

$

$

Not available

7

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

8

Toro 612586

WASHER-SPRING

$2.99

$

In Stock, only 4 left!

0

9

Toro 46-8092

SCREW-PLASTITE
(Superseded to 137-3101)

$1.49

$

In Stock, Qty 20+

0

10

Toro 105-9999

KNOB-SHIFT, LH

$7.99

$

In Stock, only 4 left!

0

11

Toro 94-4496

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

12

Toro 106-7277-03

GUIDE-SELECTOR, SPEED

$7.99

$

Usually ships in 3-6 days

0

13

Toro 32128-13

NUT-HF

$2.99

$

Usually ships in 3-6 days

0

14

Toro 106-7279-03

MOUNT-SELECTOR, SPEED

$11.99

$

Usually ships in 3-6 days

0

17

Toro 3296-72

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

21

Toro 106-4413

LEVER-AUGER

$35.99

$

In Stock, only 1 left!

0

22

Toro 3256-38

WASHER-FLAT

$0.99

$

In Stock, only 2 left!

0

23

Toro 107-3825

CONTROL PANEL ASM

$

$

Not available

23:2

Toro 106-4521

DECAL-CONTROL PANEL

$

$

Not available

24

Toro 32121-125

PIN-SPRING

$0.99

$

In Stock, only 3 left!

0

25

Toro 107-3001

SPRING-TENSION
(Superseded to 136-7315)

$6.49

$

In Stock, only 2 left!

0

26

Toro 106-4410

LEVER-TRACTION

$26.99

$

Usually ships in 3-6 days

0

27

Toro 105-9996

ROD-LOCKOUT
(Superseded to 136-7100)

$27.99

$

Usually ships in 3-6 days

0

28

Toro 107-1043

CAM-LOCKOUT

$25.99

$

Usually ships in 3-6 days

0

29

Toro 107-1044

LATCH-LOCKOUT
(Superseded to 108-0023)

$19.99

$

Usually ships in 3-6 days

0

30

Toro 98-3499

WASHER-FLAT

$2.99

$

In Stock, only 2 left!

0

31

Toro 107-3000

LINK-LOCKOUT
(Superseded to 136-7314)

$238.99

$

Usually ships in 3-6 days

0

32

Toro 105-9998

SPRING-TORSION
(Superseded to 108-0024)

$3.49

$

In Stock, only 1 left!

0

33

Toro 106-4412

SCREW-SHOULDER
(Superseded to 136-7196)

$2.99

$

Usually ships in 3-6 days

0

39

Toro 106-4563

CABLE-TRACTION
(Superseded to 120-0132)

$27.99

$

In Stock, Qty 20+

0

40

Toro 107-3830

CABLE-AUGER
(Superseded to 115-5685)

$46.99

$

In Stock, Qty 5

0

42

Toro 107-1005

ROD-SHIFT
(Superseded to 136-7109)

$26.99

$

Usually ships in 3-6 days

0

45

Toro 107-3034

DECAL-CONTROL PANEL, TSS

$

$

Not available
