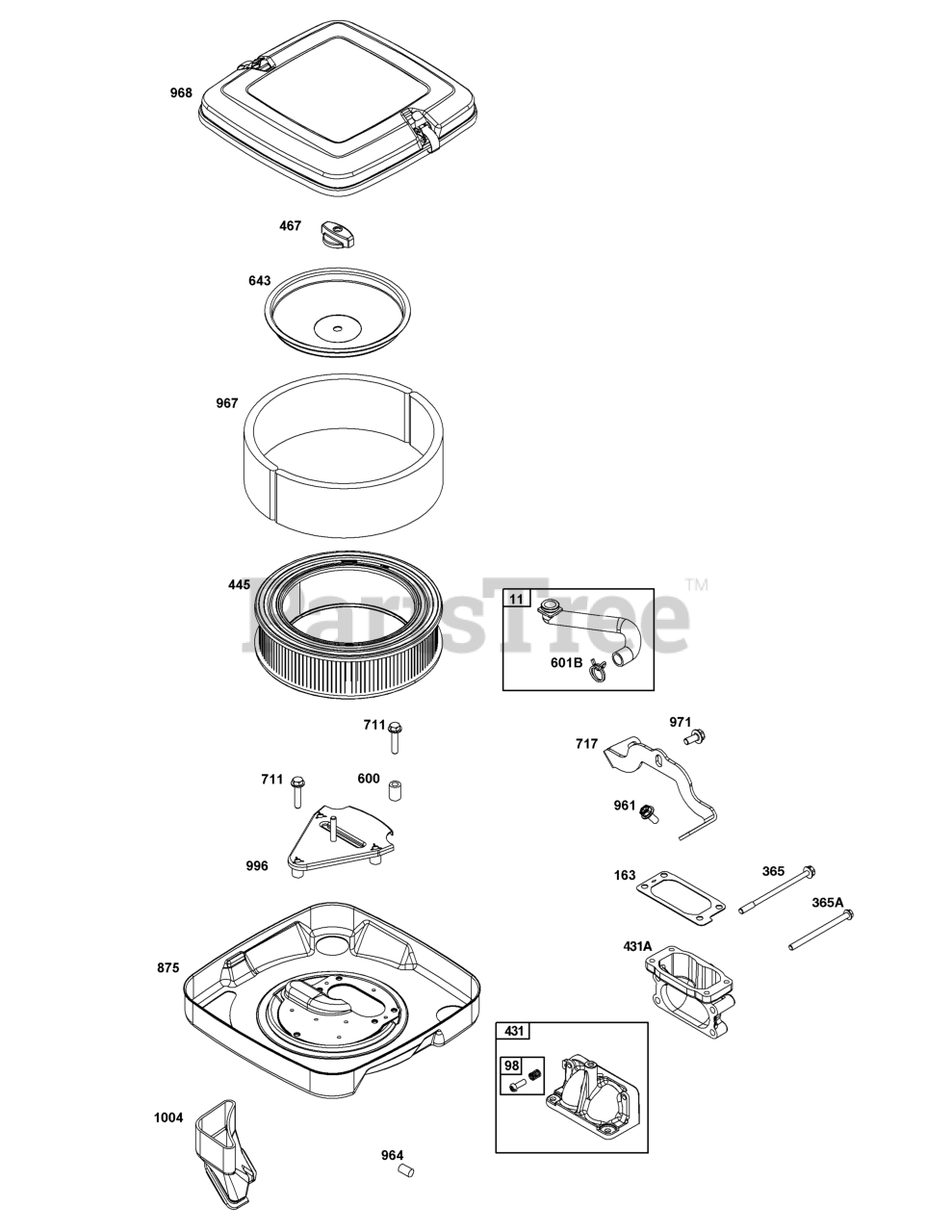

386447-0430-B5 - Briggs & Stratton Horizontal Engine Air Cleaner Group Parts Diagram

Horizontal Engine

Air Cleaner Group Parts Diagram

  • Title
11

Briggs & Stratton 806379

TUBE, Breather

$15.99

$

In Stock, only 4 left!

0

98

Briggs & Stratton 843545

KIT, Idle Speed

$6.49

$

Usually ships in 2-12 days

0

163

Briggs & Stratton 692087

GASKET, Air Cleaner

$5.49

$

In Stock, Qty 20+

0

365

SCREW

Note: (Part information located in Carburetor and Fuel Supply Group.)

$

$

Not available

365A

SCREW

Note: (Part information located in Carburetor and Fuel Supply Group.)

$

$

Not available

431

Briggs & Stratton 808659

MANIFOLD, Intake

$70.99

$

Usually ships in 2-12 days

0

431A

Briggs & Stratton 691534

MANIFOLD, Intake

$70.99

$

Usually ships in 2-12 days

0

445

Briggs & Stratton 692519

FILTER, A/C Cartridge

$20.99

$

In Stock, Qty 20+

0

467

Briggs & Stratton 846431

KNOB, Air Cleaner Cover

$7.99

$

In Stock, Qty 9

0

600

Briggs & Stratton 845213

SPACER, Air Cleaner

$13.99

$

In Stock, only 1 left!

0

601B

$3.99

$

Usually ships in 2-12 days

0

643

Briggs & Stratton 844932

RETAINER, Air Filter

$22.99

$

In Stock, Qty 6

0

711

Briggs & Stratton 691492

SCREW

Note: (Carburetor Shield)

$3.99

$

In Stock, only 2 left!

0

717

Briggs & Stratton 843332

BRACKET, Air Cleaner

$35.99

$

In Stock, only 1 left!

0

875

Briggs & Stratton 808655

BASE, Air Cleaner

$82.99

$

Usually ships in 2-12 days

0

961

Briggs & Stratton 807084

SCREW

Note: (Air Cleaner Bracket)

$3.49

$

In Stock, Qty 7

0

964

Briggs & Stratton 807468

CAP, Carburetor

$9.99

$

In Stock, only 1 left!

0

967

Briggs & Stratton 692520

FILTER, Pre Cleaner

$6.49

$

Usually ships in 2-12 days

0

968

Briggs & Stratton 808654

COVER, Air Cleaner

$56.99

$

Usually ships in 2-12 days

0

971

Briggs & Stratton 807084

SCREW

Note: (Air Cleaner Base to Carburetor/Throttle Body)

$3.49

$

In Stock, Qty 7

0

996

Briggs & Stratton 845212

SHIELD, Carburetor

$29.99

$

Usually ships in 2-12 days

0

1004

$22.99

$

Usually ships in 2-12 days

0
