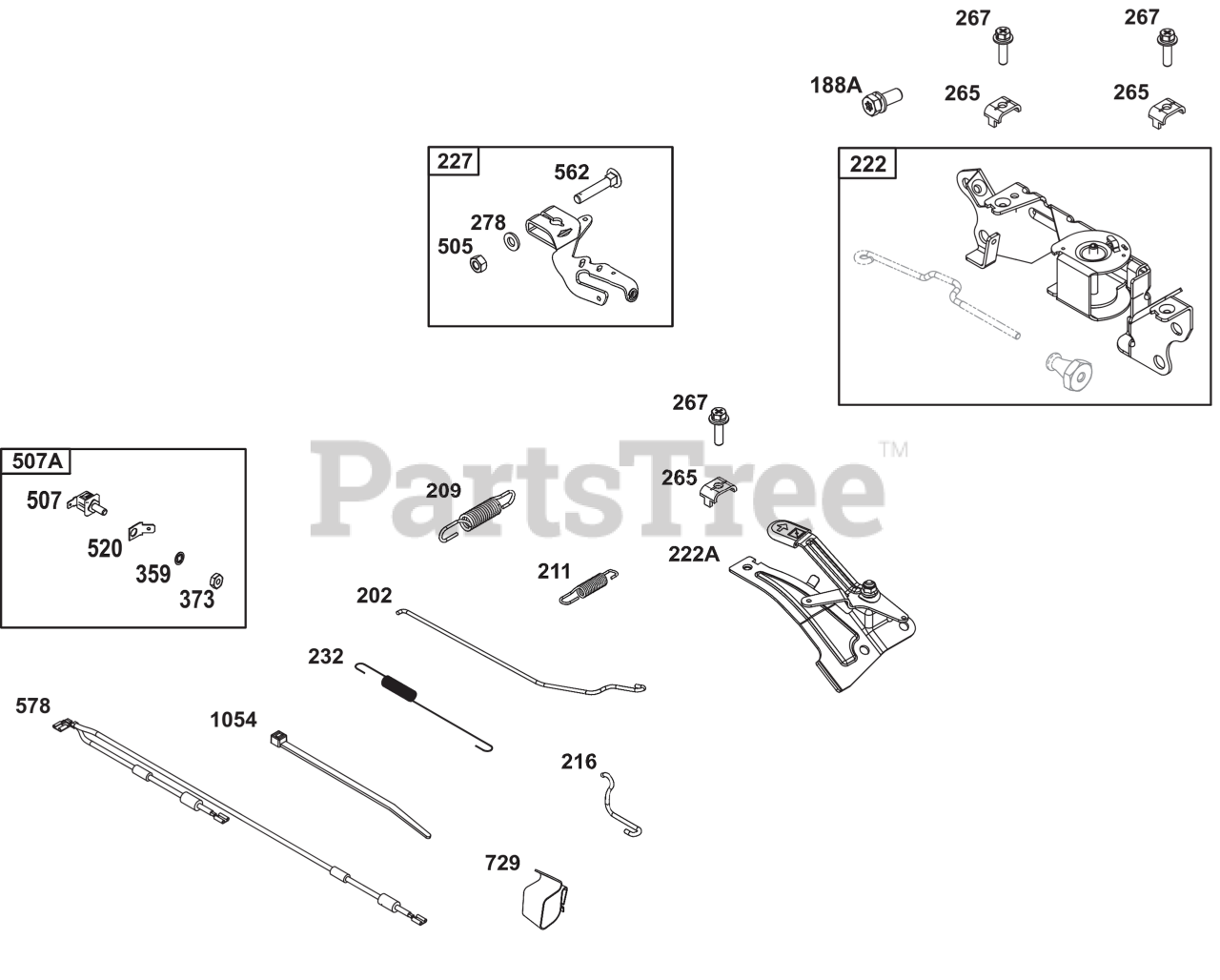

386447-0244-G1 - Briggs & Stratton Horizontal Engine Controls Group Parts Diagram

Horizontal Engine

Controls Group Parts Diagram

  • Title

188A

Briggs & Stratton 691902

SCREW

Note: (Control Bracket)

$3.49

$

In Stock, only 4 left!

0

202

Briggs & Stratton 691536

LINK, Mechanical Governor

$9.49

$

Usually ships in 2-12 days

0

209

Briggs & Stratton 806507

SPRING, Governor

$7.49

$

Usually ships in 2-12 days

0

211

Briggs & Stratton 691553

SPRING, Governed Idle

$5.99

$

Usually ships in 2-12 days

0

216

LINK, Choke

Note: (Part information located in Carburetor Group.)

$

$

Not available

222

Briggs & Stratton 808454

BRACKET, Control

$38.99

$

In Stock, only 2 left!

0

222A

Briggs & Stratton 808753

CRANK, Bell

$38.99

$

In Stock, only 1 left!

0

227

Briggs & Stratton 690236

LEVER, Governor Control

$27.99

$

In Stock, only 1 left!

0

232

Briggs & Stratton 691538

SPRING/LINK, Governor

$9.49

$

In Stock, only 3 left!

0

265

Briggs & Stratton 691024

CLAMP, Casing

$3.99

$

In Stock, Qty 5

0

267

Briggs & Stratton 841552

SCREW

Note: (Casing Clamp)

$3.49

$

In Stock, only 1 left!

0

278

Briggs & Stratton 842122

WASHER

Note: (Governor Control Lever)

$5.49

$

In Stock, only 4 left!

0

359

Briggs & Stratton 691077

WASHER

Note: (Ground Terminal)

$3.49

$

In Stock, only 2 left!

0

373

Briggs & Stratton 845823

NUT

Note: (Ground Terminal)

$4.99

$

Usually ships in 2-12 days

0

505

Briggs & Stratton 844752

NUT

Note: (Governor Control Lever)

$3.49

$

Usually ships in 2-12 days

0

507

Briggs & Stratton 691972

INSULATOR

$8.49

$

In Stock, only 2 left!

0

507A

Briggs & Stratton 848341

CONNECTOR, Terminal

$9.99

$

Usually ships in 2-12 days

0

520

Briggs & Stratton 691084

TERMINAL, Ground

$6.49

$

In Stock, only 1 left!

0

562

Briggs & Stratton 690239

BOLT

Note: (Governor Control Lever)

$5.49

$

Usually ships in 2-12 days

0

578

Briggs & Stratton 844547

WIRE ASSEMBLY

$17.99

$

In Stock, Qty 20+

0

729

Briggs & Stratton 593826

CLIP, Wire

$5.99

$

Usually ships in 2-12 days

0

1054

Briggs & Stratton 280275

TIE, Cable

$4.49

$

Usually ships in 2-12 days

0
