386447-0006-B5 - Briggs & Stratton Horizontal Engine Flywheel, Ignition, and Starter Group Parts Diagram

Horizontal Engine

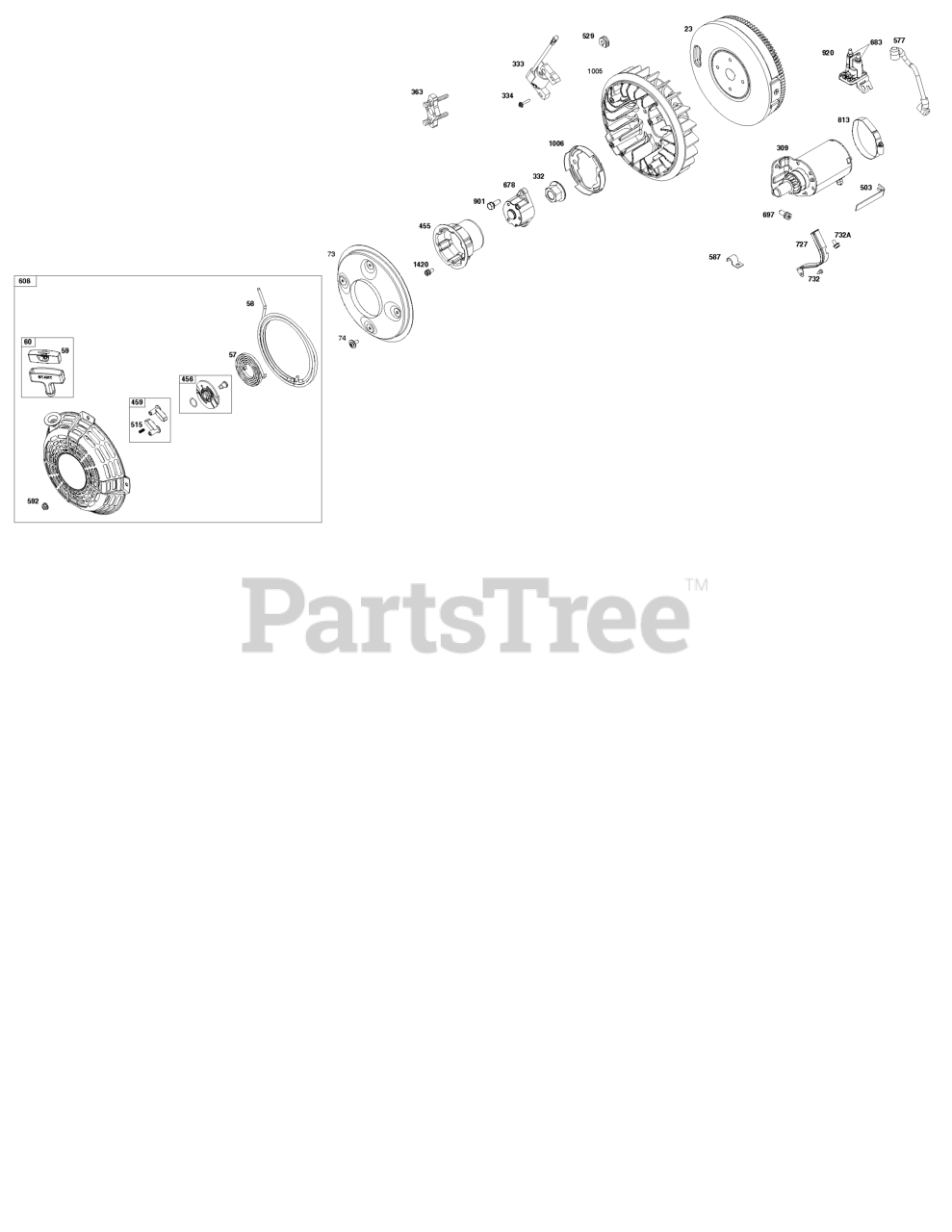

Flywheel, Ignition, and Starter Group Parts Diagram

  • Title

23

Briggs & Stratton 809236

FLYWHEEL
(Superseded to 841050)

Note: (16 Amp)

$274.99

$

Usually ships in 2-12 days

0

57

Briggs & Stratton 692086

SPRING, Rewind Starter

$15.99

$

In Stock, only 2 left!

0

58

Briggs & Stratton 66574

ROPE, Starter

$7.49

$

In Stock, Qty 10

0

59

Briggs & Stratton 805957

INSERT, Grip

$8.49

$

In Stock, only 4 left!

0

60

Briggs & Stratton 808167

GRIP, Starter Rope

$14.99

$

Usually ships in 2-12 days

0

73

Briggs & Stratton 841662

SCREEN, Rotating

$38.99

$

Usually ships in 2-12 days

0

74

Briggs & Stratton 841441

SCREW
(Superseded to 84007750)

Note: (Rotating Screen)

$3.99

$

Usually ships in 2-12 days

0

309

Briggs & Stratton 844717

MOTOR, Starter

$90.99

$

In Stock, Qty 10

0

332

Briggs & Stratton 690887

NUT

Note: (Flywheel)

$5.49

$

Usually ships in 2-12 days

0

333

Briggs & Stratton 845606

ARMATURE, Magneto
(Superseded to 84003819)

$71.99

$

In Stock, Qty 20+

0

334

Briggs & Stratton 692066

SCREW

Note: (Magneto Armature)

$3.49

$

In Stock, Qty 7

0

363

Briggs & Stratton 19203

PULLER, Flywheel

Note: (71.5mm (2.81in.))

$23.99

$

In Stock, only 1 left!

0

455

Briggs & Stratton 841794

CUP, Flywheel

$33.99

$

Usually ships in 2-12 days

0

456

Briggs & Stratton 845219

PLATE, Pawl Friction

$15.99

$

Usually ships in 2-12 days

0

459

Briggs & Stratton 845218

PAWL, Ratchet

$19.99

$

Usually ships in 2-12 days

0

503

Briggs & Stratton 845016

STRAP, Starter

$5.99

$

Usually ships in 2-12 days

0

515

Briggs & Stratton 691528

SPRING, Pawl

$6.99

$

Usually ships in 2-12 days

0

529

Briggs & Stratton 690744

GROMMET

$7.49

$

Usually ships in 2-12 days

0

577

Briggs & Stratton 690795

CABLE, Starter

$18.99

$

In Stock, only 2 left!

0

587

Briggs & Stratton 690423

CLAMP, Tube

$4.99

$

Usually ships in 2-12 days

0

592

Briggs & Stratton 690939

NUT

Note: (Rewind Starter)

$3.49

$

In Stock, Qty 8

0

608

Briggs & Stratton 841729

STARTER, Rewind

$142.99

$

In Stock, only 2 left!

0

678

Briggs & Stratton 841730

SPACER

Note: (Rewind)

$35.99

$

Usually ships in 2-12 days

0

683

Briggs & Stratton 691029

NUT

Note: (Starter Solenoid)

$5.49

$

Usually ships in 2-12 days

0

697

Briggs & Stratton 691902

SCREW

Note: (Starter Motor) (Drive Cap) (M8x20mm)

$3.49

$

In Stock, Qty 12

0

727

Briggs & Stratton 841313

COVER, Starter Drive

$16.99

$

Usually ships in 2-12 days

0

732

Briggs & Stratton 690688

SCREW

Note: (Starter Drive Cover)

$3.49

$

Usually ships in 2-12 days

0

732A

Briggs & Stratton 841233

SCREW

Note: (Starter Drive Cover) (M6x10mm)

$3.49

$

In Stock, Qty 20+

0

813

Briggs & Stratton 690635

CLAMP

$24.99

$

Usually ships in 2-12 days

0

901

Briggs & Stratton 846234

SCREW

Note: (Rewind Spacer)

$4.49

$

Usually ships in 2-12 days

0

920

Briggs & Stratton 845269

SOLENOID, Starter

$65.99

$

In Stock, only 2 left!

0

1005

Briggs & Stratton 841439

FAN, Flywheel

$34.99

$

In Stock, only 2 left!

0

1006

Briggs & Stratton 690452

RETAINER, Fan

$10.99

$

Usually ships in 2-12 days

0

1420

Briggs & Stratton 841735

SCREW

Note: (Flywheel Cup to Rewind Spacer)

$3.99

$

Usually ships in 2-12 days

0
