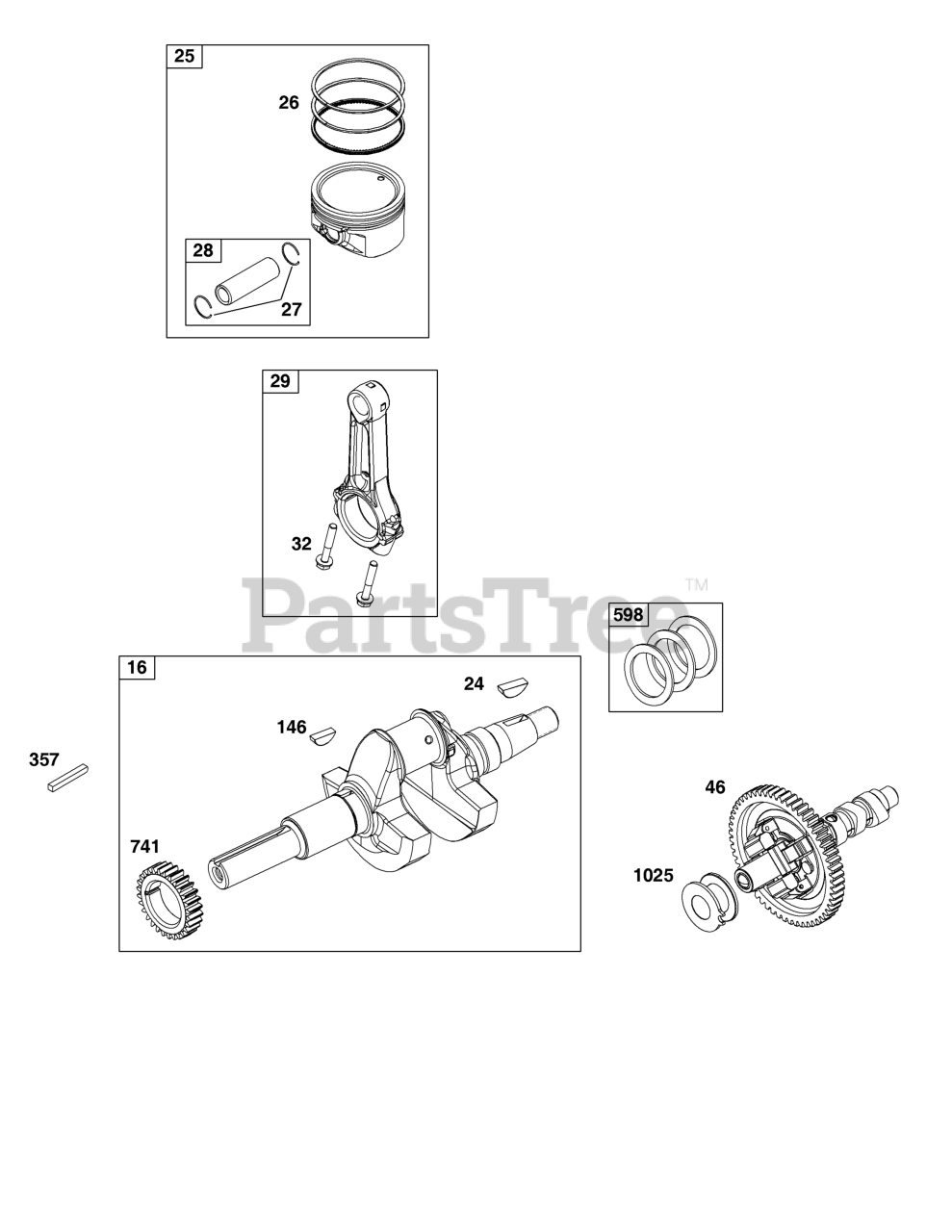

386447-0006-B5 - Briggs & Stratton Horizontal Engine Crankshaft Group Parts Diagram

Horizontal Engine

Crankshaft Group Parts Diagram

  • Title

16

Briggs & Stratton 843812

CRANKSHAFT
(Superseded to 84004530)

$411.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 808095

KEY, Woodruff

$13.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 843805

PISTON ASSEMBLY

$139.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 844877

PISTON ASSEMBLY

Note: (.020 Oversize)

$130.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 843806

SET, Ring

$53.99

$

In Stock, only 2 left!

0

26

Briggs & Stratton 843824

SET, Ring

Note: (.020 Oversize)

$55.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 690683

LOCK, Piston Pin

$4.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 844023

PIN, Piston

$15.99

$

In Stock, only 1 left!

0

29

Briggs & Stratton 807900S

ROD, Connecting

$

$

Not available

32

Briggs & Stratton 690698

SCREW

Note: (Connecting Rod)

$7.49

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 690927

CAMSHAFT

$184.99

$

Usually ships in 2-12 days

0

146

Briggs & Stratton 691639

KEY, Woodruff

$4.49

$

In Stock, Qty 5

0

357

Briggs & Stratton 691483

KEY, Drive Pulley

$6.99

$

In Stock, only 1 left!

0

598

Briggs & Stratton 807625

SHIM, End Play

Note: (Crankshaft or Camshaft Bearing)

$19.99

$

Usually ships in 2-12 days

0

741

Briggs & Stratton 846085

GEAR, Timing

$19.99

$

Usually ships in 2-12 days

0

1025

Briggs & Stratton 690689

SPOOL, Governor

$22.99

$

In Stock, only 2 left!

0
