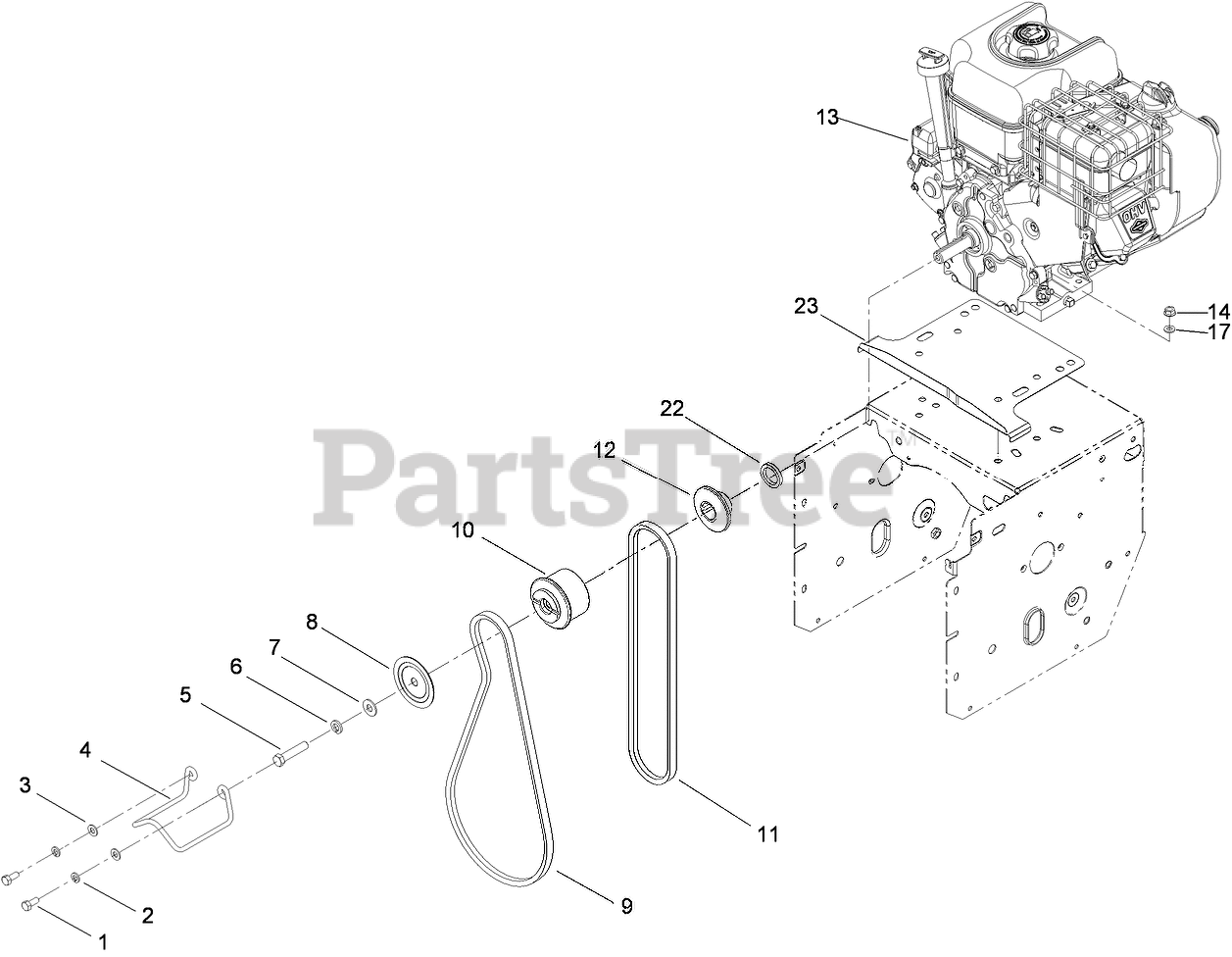

38644 (1028 OXE) - Toro 28" Power Max Snow Thrower (SN: 311000001 - 311999999) (2011) ENGINE ASSEMBLY Parts Diagram

28" Power Max Snow Thrower

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 3210-3

SCREW-HH

$6.49

$

Usually ships in 3-6 days

0

2

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

3

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

4

Toro 107-3835

GUIDE-BELT
(Superseded to 136-7317)

$18.99

$

In Stock, only 1 left!

0

5

Toro 3212-8

SCREW-HH

$6.49

$

In Stock, only 4 left!

0

6

Toro 3253-6

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

7

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

8

Toro 62-0940

SHEAVE-HALF, IMPELLER

$18.99

$

In Stock, only 1 left!

0

9

Toro 106-4498

BELT-V

$29.99

$

In Stock, Qty 10

0

10

Toro 106-7333

PULLEY-ENGINE, CENTER

$140.99

$

Usually ships in 3-6 days

0

11

Toro 94-8812

V BELT-TRACTION
(Superseded to 94-8812-SL)

$33.99

$

Usually ships in 3-6 days

0

12

Toro 106-7334

SHEAVE-HALF, TRACTION

$28.99

$

Usually ships in 3-6 days

0

13

ENGINE-BRIGGS 20M3140111E1

Note: Not serviced separately

$

$

Not available

13

ENGINE-BRIGGS 20M3140111E1

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

14

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

17

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

22

Toro 115-5666

SPACER-HARDENED

$8.49

$

Usually ships in 3-6 days

0

23

Toro 117-6022-01

SHIELD-DRIVE

$11.99

$

Usually ships in 3-6 days

0
