38641 (1028 LXE) - Toro 28" Power Max Snow Thrower (SN: 250000001 - 250999999) (2005) WHEEL CLUTCH ASSEMBLY Parts Diagram

28" Power Max Snow Thrower

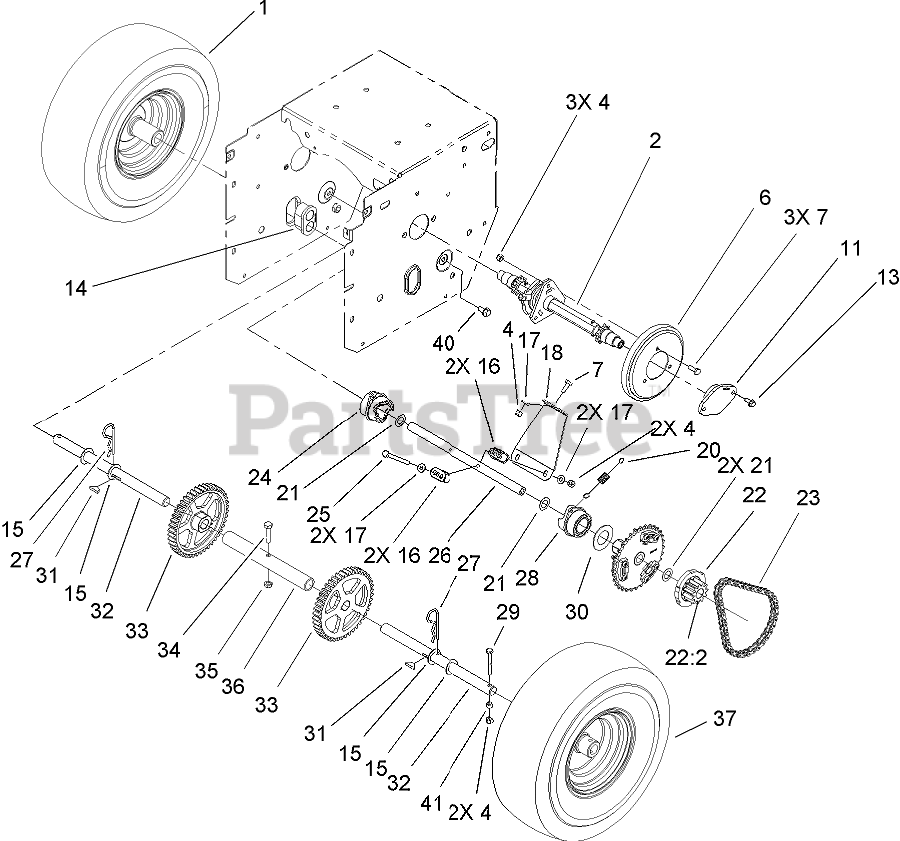

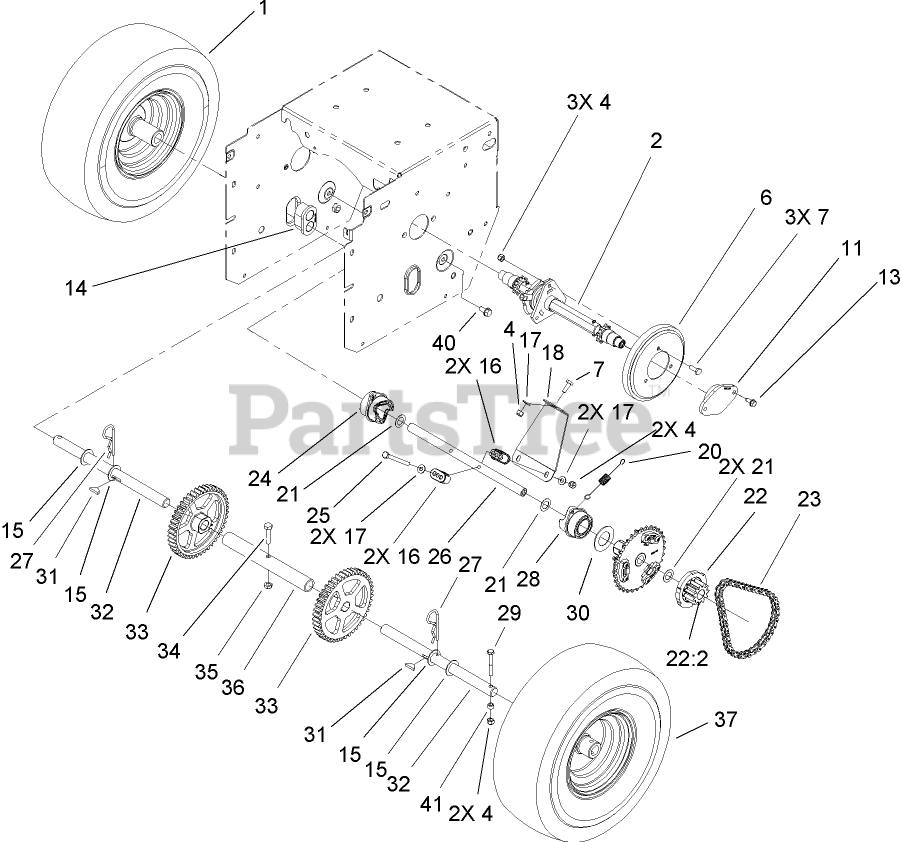

WHEEL CLUTCH ASSEMBLY Parts Diagram

  • Title
1

RH WHEEL AND TIRE ASM

Note: Not serviced separately

$

$

Not available

1

$90.99

$

Usually ships in 3-6 days

0

1

Toro 107-3043

RIM-TIRE

$153.99

$

Usually ships in 3-6 days

0

2

Toro 108-2989

CLUTCH HEXSHAFT ASM
(Superseded to 108-7318)

$

$

Not available

4

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

6

Toro 106-4480

WHEEL-FRICTION
(Superseded to 119-1567)

$53.99

$

In Stock, only 4 left!

0

7

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

11

Toro 108-2981

RETAINER-BEARING

$

$

Not available

13

Toro 32144-10

SCREW-HWH

$4.99

$

In Stock, Qty 9

0

14

Toro 106-4558

BEARING-AXLE

$31.99

$

Usually ships in 3-6 days

0

15

Toro 3-8664

WASHER-THRUST

$6.49

$

In Stock, only 1 left!

0

16

Toro 107-8889

GUIDE-COLLAR

$5.49

$

Usually ships in 3-6 days

0

17

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

18

Toro 107-8892-03

BRACE-COLLAR, SHIFT

$11.99

$

Usually ships in 3-6 days

0

20

Toro 107-8893

SPRING-EXTENSION

$7.99

$

Usually ships in 3-6 days

0

21

Toro 108-0015

WASHER-FLAT

$0.99

$

In Stock, Qty 8

0

22

Toro 107-8894

11T GEAR ASM

$60.99

$

Usually ships in 3-6 days

0

22:2

Toro 108-2973

BUSHING-FLANGE

$6.49

$

Usually ships in 3-6 days

0

23

Toro 108-0016

CHAIN-ROLLER

$58.99

$

Usually ships in 3-6 days

0

23

Toro 2710-6

LINK-CONNECTING

$19.99

$

Usually ships in 3-6 days

0

24

Toro 107-8888

COLLAR-SHIFT, RH

$11.99

$

Usually ships in 3-6 days

0

25

Toro 321-23

SCREW-HH

$4.49

$

Usually ships in 3-6 days

0

26

Toro 107-8883

SHAFT-INTERMEDIATE

$60.99

$

Usually ships in 3-6 days

0

27

Toro 3290-343

PIN-HAIR

$0.99

$

In Stock, only 3 left!

0

28

Toro 107-8887

COLLAR-SHIFT, LH

$11.99

$

Usually ships in 3-6 days

0

29

Toro 108-2975

SCREW-HH

$5.49

$

In Stock, Qty 10

0

30

Toro 107-8891

WASHER-THRUST

$6.49

$

Usually ships in 3-6 days

0

31

Toro 3257-7

KEY-WOODRUFF

$9.49

$

In Stock, only 3 left!

0

32

Toro 107-8898

SHAFT-AXLE

$58.99

$

Usually ships in 3-6 days

0

33

Toro 106-4572

GEAR-AXLE, 44 TOOTH

$80.99

$

Usually ships in 3-6 days

0

34

Toro 322-17

SCREW-HH

$3.99

$

In Stock, only 2 left!

0

35

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 7

0

36

Toro 106-7259

TUBE-AXLE

$99.99

$

Usually ships in 3-6 days

0

37

LH WHEEL AND TIRE ASM

Note: Not serviced separately

$

$

Not available

37

$90.99

$

Usually ships in 3-6 days

0

37

Toro 107-3043

RIM-TIRE

$153.99

$

Usually ships in 3-6 days

0

40

Toro 32144-14

SCREW-HWHTF

$4.99

$

In Stock, only 3 left!

0

41

Toro 55-9370

SPACER-BLADE, ROTOR

$2.99

$

In Stock, Qty 20+

0
