38639 C (828 OE) - Toro 28" Power Max Snow Thrower (SN: 290000001 - 290999999) (2009) HANDLE ASSEMBLY Parts Diagram

28" Power Max Snow Thrower

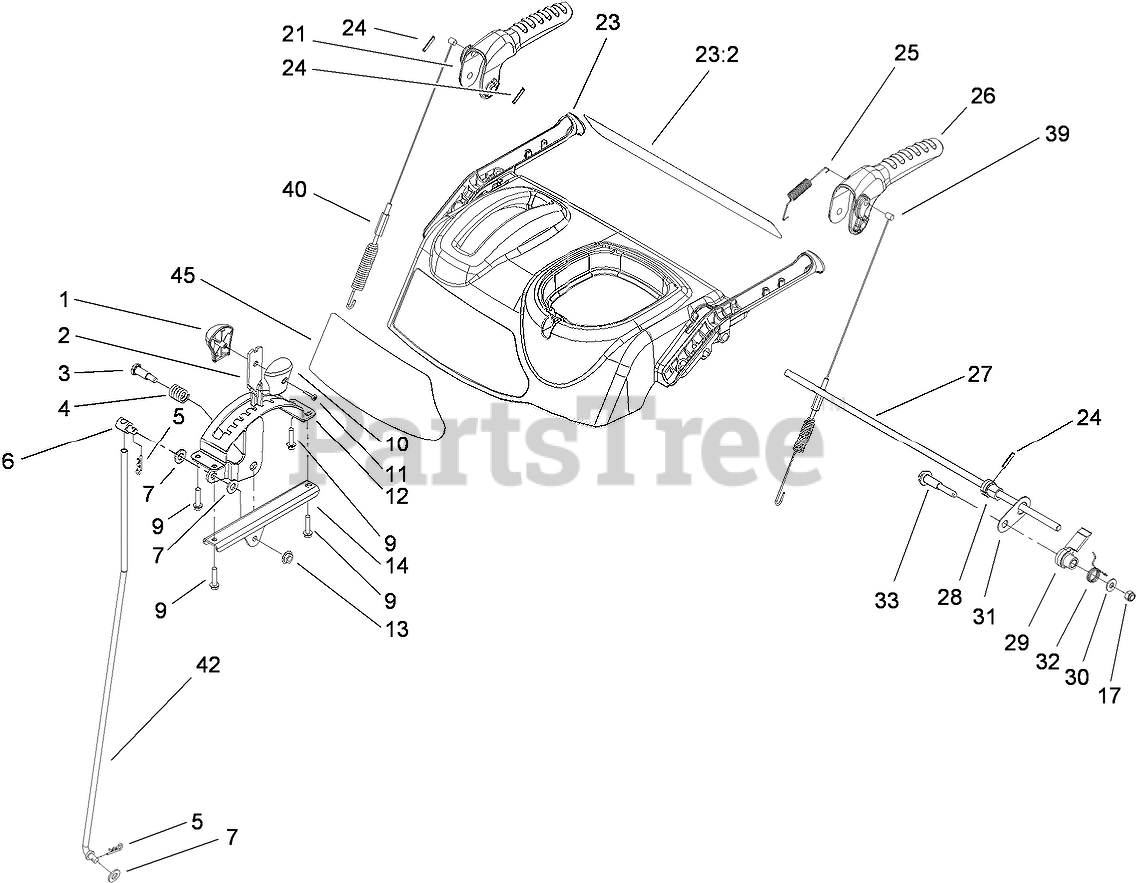

HANDLE ASSEMBLY Parts Diagram

  • Title
1

Toro 106-4423

KNOB-SHIFT, RH

$7.99

$

In Stock, only 4 left!

0

2

Toro 106-7278-03

SELECTOR-SPEED

$12.99

$

Usually ships in 3-6 days

0

3

Toro 63-2650

SCREW-SHOULDER

$7.99

$

In Stock, only 1 left!

0

4

Toro 108-7313

SPRING-COMPRESSION
(Superseded to 136-7121)

$2.99

$

Usually ships in 3-6 days

0

5

Toro 3290-307

PIN-COTTER
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

6

Toro 110-3446

TRUNNION-ROD
(Superseded to 136-7193)

$7.99

$

In Stock, Qty 10

0

7

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 14

0

9

Toro 46-8092

SCREW-PLASTITE
(Superseded to 137-3101)

$1.49

$

In Stock, Qty 6

0

10

Toro 105-9999

KNOB-SHIFT, LH

$7.99

$

In Stock, only 4 left!

0

11

Toro 94-4496

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

12

Toro 106-7277-03

GUIDE-SELECTOR, SPEED

$7.99

$

Usually ships in 3-6 days

0

13

Toro 32128-13

NUT-HF

$2.99

$

Usually ships in 3-6 days

0

14

Toro 106-7279-03

MOUNT-SELECTOR, SPEED

$11.99

$

Usually ships in 3-6 days

0

17

Toro 3296-72

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

21

Toro 106-4413

LEVER-AUGER

$35.99

$

In Stock, only 1 left!

0

23

Toro 112-6631

CONTROL PANEL ASM

$140.99

$

Usually ships in 3-6 days

0

23:2

Toro 112-6626

DECAL-PANEL, CONTROL

$21.99

$

Usually ships in 3-6 days

0

24

Toro 32121-125

PIN-SPRING

$0.99

$

In Stock, only 4 left!

0

25

Toro 107-3001

SPRING-TENSION
(Superseded to 136-7315)

$6.49

$

In Stock, only 2 left!

0

26

Toro 106-4410

LEVER-TRACTION

$26.99

$

Usually ships in 3-6 days

0

27

Toro 105-9996

ROD-LOCKOUT
(Superseded to 136-7100)

$27.99

$

Usually ships in 3-6 days

0

28

Toro 107-1043

CAM-LOCKOUT

$25.99

$

Usually ships in 3-6 days

0

29

Toro 108-0023

LATCH-LOCKOUT

$19.99

$

Usually ships in 3-6 days

0

30

Toro 98-3499

WASHER-FLAT

$2.99

$

In Stock, only 2 left!

0

31

Toro 107-3000

LINK-LOCKOUT
(Superseded to 136-7314)

$238.99

$

Usually ships in 3-6 days

0

32

Toro 108-0024

SPRING-TORSION

$3.49

$

In Stock, only 1 left!

0

33

Toro 106-4412

SCREW-SHOULDER
(Superseded to 136-7196)

$2.99

$

Usually ships in 3-6 days

0

39

Toro 115-5671

CABLE-TRACTION
(Superseded to 120-0132)

$27.99

$

In Stock, Qty 20+

0

40

Toro 115-5680

CABLE-AUGER

$27.99

$

In Stock, Qty 17

0

42

Toro 107-1005

ROD-SHIFT
(Superseded to 136-7109)

$26.99

$

Usually ships in 3-6 days

0

45

Toro 112-8144

DECAL-CONTROL PANEL

$

$

Not available
